Panamax M4315-Pro

$999.95

Widely Used BlueBOLT Power Conditioner

Trade-in is not available on this product.



Category: Tag: Brand:

SHARE ON:

Product Description

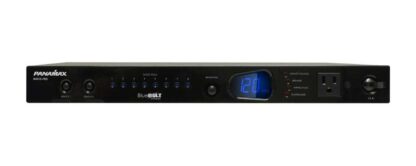

The Panamax M4315-Pro Power Conditioner with Control System from Panamax is a rack-mountable, power management system that features Panamax’s AVM (Automatic Voltage Monitoring) circuit and Linear Filtering Technology (LiFT) to provide AC protection and purification. The included BlueBOLT-CV1 provides secure, hosted IP system control and monitoring for the M4315-PRO.

Eight fully controllable/programmable outlets via BlueBOLT-CV1 or RS-232C cards

Linear Filtration with four isolated outlet banks

Two front panel programmable reboot buttons

IP control with BlueBOLT-CV1 and RS-232C cards

Volt/amp meter, outlet status, and warning LEDs

Removable rack ears with a full depth metal chassis

Circuit breaker/power switch

12V input triggering

  • FamilyPro Series
  • Line Voltage120 (Volts)
  • Number of Outlets9
  • Number of Isolated Banks4
  • Outlet Descriptions1 (always on, linearly filtered outlet, front panel)

    6 (individually switchable, linearly filtered outlets)

    2 (individually switchable, high current outlets)



  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)Volts/Amps Combo Meter
  • Front Media Light(s)No
  • ControlFull outlet control using BlueBOLT or Telnet commands. Limited outlet control through front panel buttons or rear panel DC trigger.
  • Voltage RegulationNo
  • CompliancecCSAus
  • USB ChargingN/A
  • Low Voltage Trigger12V In
  • AC Power Cord10 ft. detachable
  • Dimensions19″ W (17″ without rack ears) x 12.25″ D x 1.75″ H
  • Weight12 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Under-Voltage Shutoff100 VAC ± 2 VAC
  • Over-Voltage Shutoff134 VAC ± 2 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyLiFT
  • Filtration RatingBanks 1, 2, 3: 76db, 5KHz – 250 kHz

    Bank 4 High Current Outlets: 46 db, 250 KHz – 1 Mhz



  • Signal Line Protection1 LAN
    1 Tel
    2 Cable/Satellite
Shipping Info
  • Length19.8 (Inches)
  • Width4.6 (Inches)
  • Height21.2 (Inches)
  • Weight16.7 (Lbs)
  • Unit of MeasureEach
  • UPC050616008594
  • Master Pack Qty2
Other Specifications
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)500V
  • Single Pulse Energy Dissipation2700 Joules
  • Peak Impulse Current135,000 Amps
  • LAN – Wires Protected8-Wires
  • LAN – Compatibility10/100/1000 BASE-T
  • LAN – Clamping Level60 ± 5V
  • Coax – ShieldedYes
  • Coax – Insertion Loss< 0.5 dB
  • Coax – HD 1080 i/p ReadyYes
  • Coax – Frequency Range0 MHz – 2.2 GHz
  • Coax – ConnectionsFemale “F”, Gold Plated
  • Coax – Clamping Level75V
  • Coax – BidirectionalYes
Proposition 65 Warning
  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Brand

Panamax

For over 40 years, Panamax has protected billions of dollars worth of electronics from spikes, surges, and faulty power conditions. The same engineering that developed their award-winning, patented surge protectors is built into every generation of their cutting-edge models. From Automatic Voltage Monitoring (AVM) to BlueBOLT cloud technology, the brand’s extensive features offer support for electronics like no other. The mission of Panamax is to be #1 in the development and introduction of innovative products & services in the power management category for consumer electronics.

Panamax’s surge protectors are some of the best in the business, making them a go-to source for their products. Specifically, the Panamax MAX 5300 PM is an affordable surge protector, designed to protect home theater systems and high-level appliances. However, if you are looking for top-of-the-line protection, the M4315-PRO is the best in the business. With built-in BlueBOLT and exclusive Linear Filtering Technology (LiFT), it makes for the safest model obtainable whenever there is audio, video, and networking involved.
