$2,999.00

Integrated Amplifier

If you have a trade-in, request Trade-in Price.

Product Description

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the Marantz MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

Exquisite Sound Tuning

MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.

The Most Musical, Accurate, Detailed Sound in the Model 30

The Marantz MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.

Marantz Model 30 in Silver Finish
Marantz Model 30 in Silver Finish

Key Features:

  • Custom-built preamplifier with Marantz HDAM technology.
  • Tuned with passion by the Marantz Sound Master.
  • Output: 100W + 100W (8ohm), 200W + 200W (4ohm).
  • Fully-discrete design for signal purity.
  • Custom HDAM®-SA3 circuitry for clean, optimal dynamics.
  • Separate amp and preamp power supplies reduce interference.
  • Toroidal transformer dedicated to preamp for clarity and power.
  • Current feedback preamp design with its wide-range circuitry.
  • MM/MC Phono input with its Premium Phono EQ circuit.
  • Brass machined input terminals for CD and Phono.
  • Marantz original high-quality/high-purity copper speaker terminals.
  • Linear volume control with new electric volume system.
  • Amplifier design inherited from our flagship models.
  • Available in Black and Silver Gold.
  • Output Power
  • Rated Output Power: 100W + 100W (8ohm), 200W + 200W (4ohm)
  • Features
  • Amplifier Circuit: Switching Amplifier
  • Power Transformer: Toroidal w/ case
  • Volume: Electric
  • Bass / Treble / Balance Control
  • Source Direct
  • Wide Range: 5Hz – 50kHz
  • Total Harmonic Distortion: 0.005% (1kHz, 8Ω)
  • Damping Factor: 500
  • Input Sensitivity Phone input: MM: 2.3 mV / 39 kohm, MC: 250 μV / 100 ohm
  • Input Sensitivity CD/LINE/RECORDER: 220 mV / 13 kohm
  • Input Sensitivity Power Amplifier input: 1.1 V / 13 kohm
  • Signal to Noise Ratio: PHONO (MM): 88dB, PHONO (MC): 75dB, CD: 107dB
  • Terminal
  • Phono Input: yes (MM/MC), Marantz Musical Premium Phono EQ
  • Ext. Pre Input (Power Amp Direct)
  • Preout

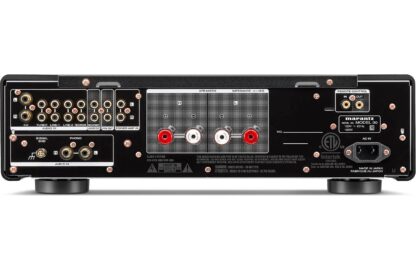

  • Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out: 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals
  • Speaker Terminal: Marantz Original SPKT-100+
  • Remote Control Bus Terminal: yes (Cinch)
  • UI
  • Display: yes (Porthole, OLED)
  • Control
  • App Control via Network Player
  • System Remote Controller: (New system remote controller to control SACD 30 and MODEL 30)
  • Other
  • Unit (W x H x D in inches): 17.4″ x 5.1″ x 17”
  • Packaging Dimensions (W x H x D in inches): 20” x 10.1” x 20.6”
  • Weight: 32 lbs 3 Oz
  • Packaging Weight: 37 lbs 8 Oz
  • Power Consumption: 130W
  • Power Consumption at Standby: 0.2W
  • AC Inlet
  • Quick Start Guide: Paper
  • Cosmetic
  • Panel Color: SG / BK
  • Front Center Panel: Aluminum
  • Side cover: Aluminum
  • Top cover: Steel
  • Edge-lighting: yes (Dimmer)
  • Volume Knob: Aluminum
  • Input Selector: Aluminum
  • Bass/Treble/Balance/ REC Out Sel knobs: REC Out–>PHONO (Aluminum)
  • Power button: Aluminum
  • Side screw: Copper plated
  • Chassis Material: SECC
  • Chassis Layer: Triple
  • Foot: New (PM6006 type)

Brand

Marantz

Over the last seven decades, Marantz has come to represent the best in home entertainment. Any audiophile will recognize the company's black and gold design. Marantz believes that music done right can be transformative. World-renowned acousticians crafted and tested each component to ensure it meets their commitment to pure sound reproduction. These Sound Masters train for years to recognize the ideal warmth and tonality needed in hi-fi systems. Only those models that deliver the signature sound envisioned by founder Saul Marantz make the cut and deserve to have his name emblazoned on the front.

Not only is Marantz known for high-end audio solutions but immersive home theater components as well. Hear every detail in your recordings or movies with their amplifiers, receivers, turntables and CD players. Let yourself be overcome by a deep, encompassing sound while viewing high-definition images. With trademark HDAM circuitry, the components offer unrivaled reliability, as well.

Overture is a proud dealer of Marantz products, selling customers the best CD players and A/V receivers from Marantz. Interested in purchasing a new Marantz component? You can trade-in any component towards a Marantz product by filling out Overture'sTrade-In Form.
