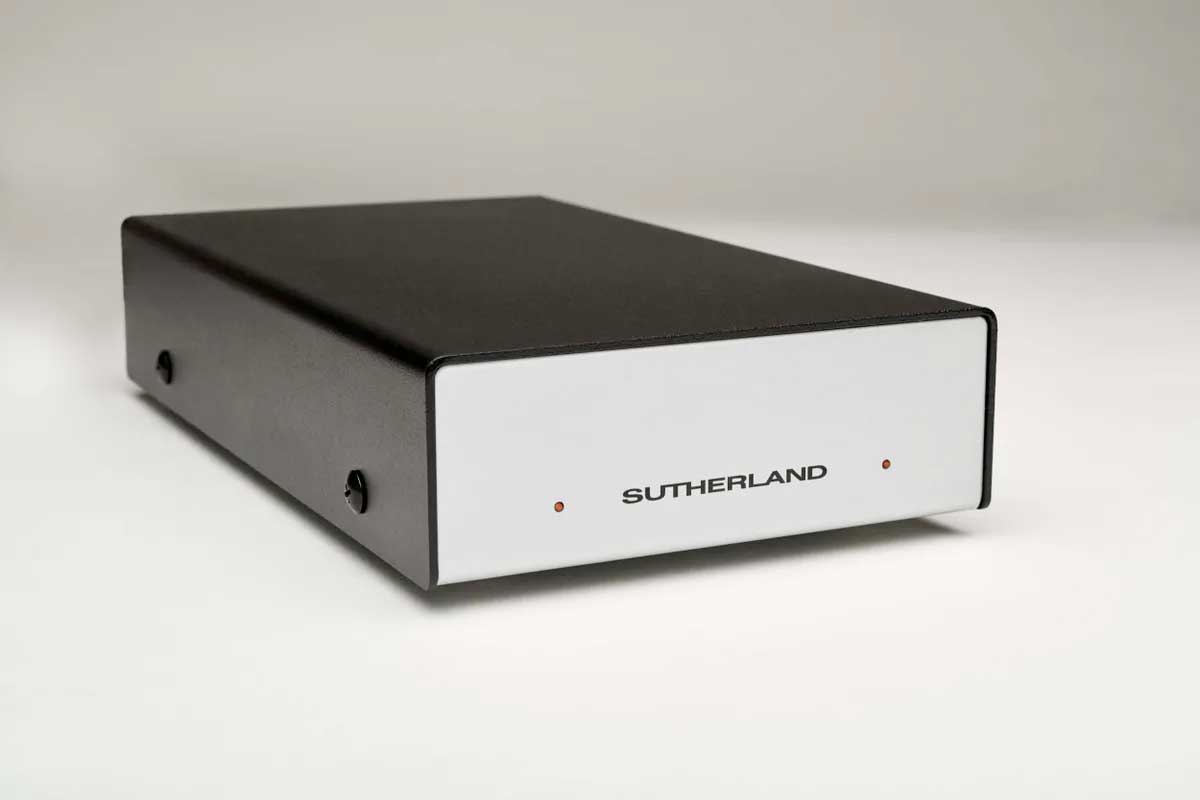

Product Description
The Sutherland Engineering TZ Vibe ‘lifts’ some circuity from the KC VIBE and ‘lifts’ some circuitry from the front of the little LOCO Mk2. The KC VIBE provides the foundation and the second gain stage. The transimpedance input stage comes from the little LOCO Mk2. Each of those products underwent years of development. Each has been in production for several years, earning a solid reputation. All of that valuable knowledge and experience is combined into the TZ VIBE. An offering of the Sutherland transimpedance experience at a more accessible price.
SYSTEM CONSIDERATIONS
The TZ VIBE presents a virtual short as the cartridge load. Instead of voltage being the input parameter, it is the current generated by the cartridge that conveys musical content. The endless worry about finding the ‘best’ load value is obviated.
The cartridge must be the moving coil type. Those with low output will be embraced. Not compatible with moving magnet or moving iron or step-up-transformers.
Thanks to the new little LOCO Mk2 circuit, the shell of the RCA input jack is now at ground. There are no special TT cable requirements. The TZ Vibe will work with any turntable or arm.
LINKING INTO YOUR SYSTEM
Locate the TZ VIBE near the turntable. The turntable signal is applied to the two centrally located RCA jacks on the back panel. Often there is a ground wire coming from the turtable. Connect it to the grounding screw in the center of the back panel. The output of the TZ VIBE goes to a line-level input on your preamp or integrated amplifier.
The DC power connection is made in the opening on the bottom of the TZ VIBE case. Orient the cable routing so the ferrite filtering element in within the bottom opening. Otherwise the case will not sit solidly on the four rubber feet.
LOAD SETTINGS
There are no loading adjustments in the TZ VIBE. Your cartridge will see a load of zero Ohms. The input signal will be the current your cartridge produces into that virtual short. No need to worry about or fuss around with loading choices.
GAIN SETTINGS
Your TZ VIBE is factory-set to medium gain. That should work very well in most situations. The usual concerns about cartridge output voltage do not apply here. Cartridges of varied output voltage specs tend to supply about the same level of drive current into a short. i.e. higher output voltages usually have an associated higher internal resistance. Lower output voltages usually have an associated lower internal resistance.

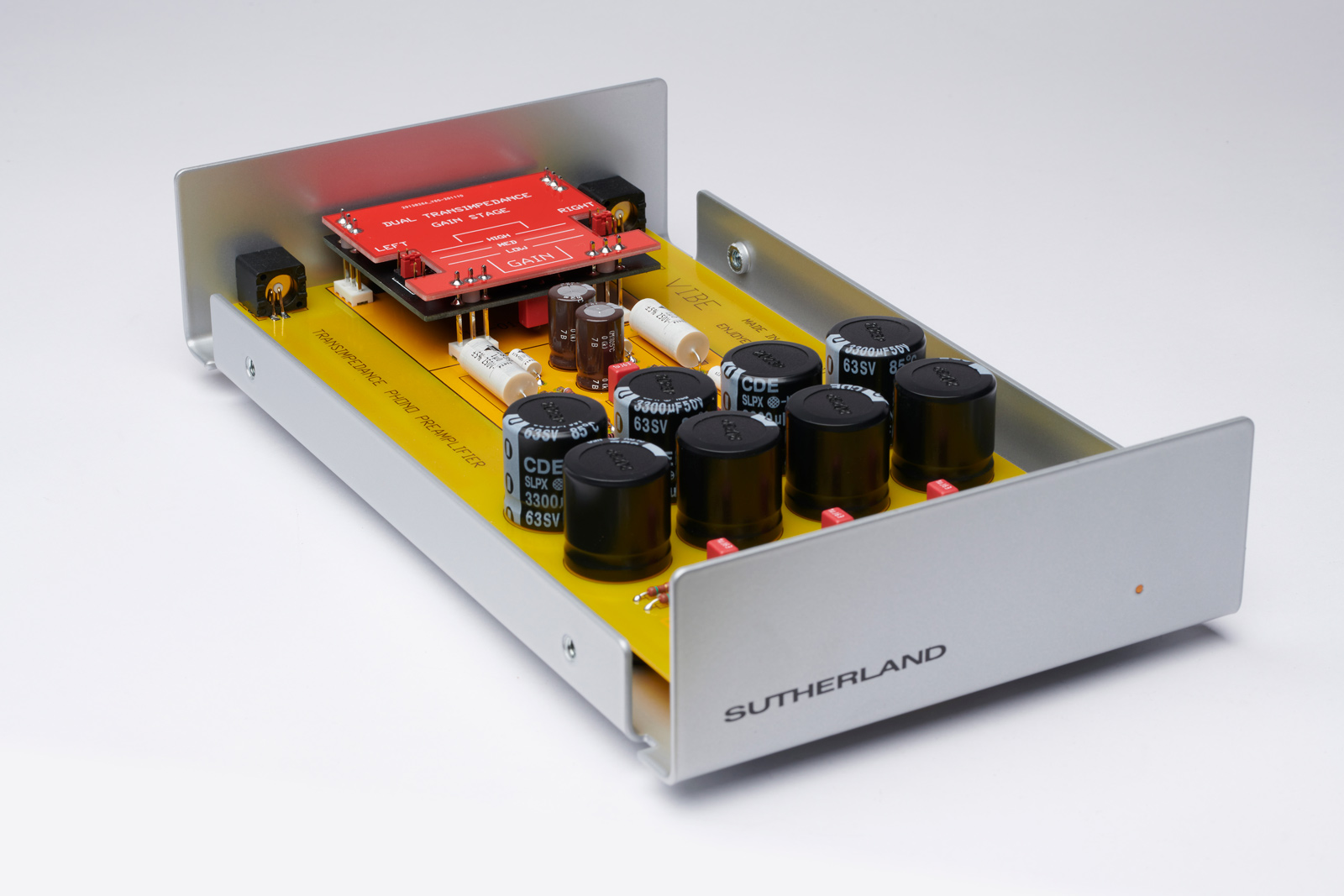

If your particular situation would benefit from a gain adjustment, you can change it. Inside, on the red circuit board, you will see moveable shunts for gain setting. From the factory, they are set to MED GAIN. You can boost the output voltage by 6dB when the shunts are moved to HIGH GAIN. You can reduce the output voltage by 6dB when the shunts are moved to LOW GAIN.
WARNING
Use the TZ VIBE only with the included power supply. It provides the specific requirements that must be met.
POWER REQUIREMENTS:
86 to 260 volts AC, 5 Watts
universal, no adjustment required
SIZE:
11” x 9” x 2” TZ VIBE
14.5” x 12.5” x 6.5” shipping box
WEIGHT:
6 # TZ VIBE
9.5 # shipping weight
WARRANTY:
5 years parts and labor. Transferable. Only valid for units that have not been modified or abused.
