Sale!

Original price was: $1,899.99.Current price is: $1,519.99.

8K Capable A/V Receiver

If you have a trade-in, request Trade-in Price.



Only available for in-store purchase.

OPEN BOX 4K VERSION AVAILABLE



Category: Tags: ,

Product Description

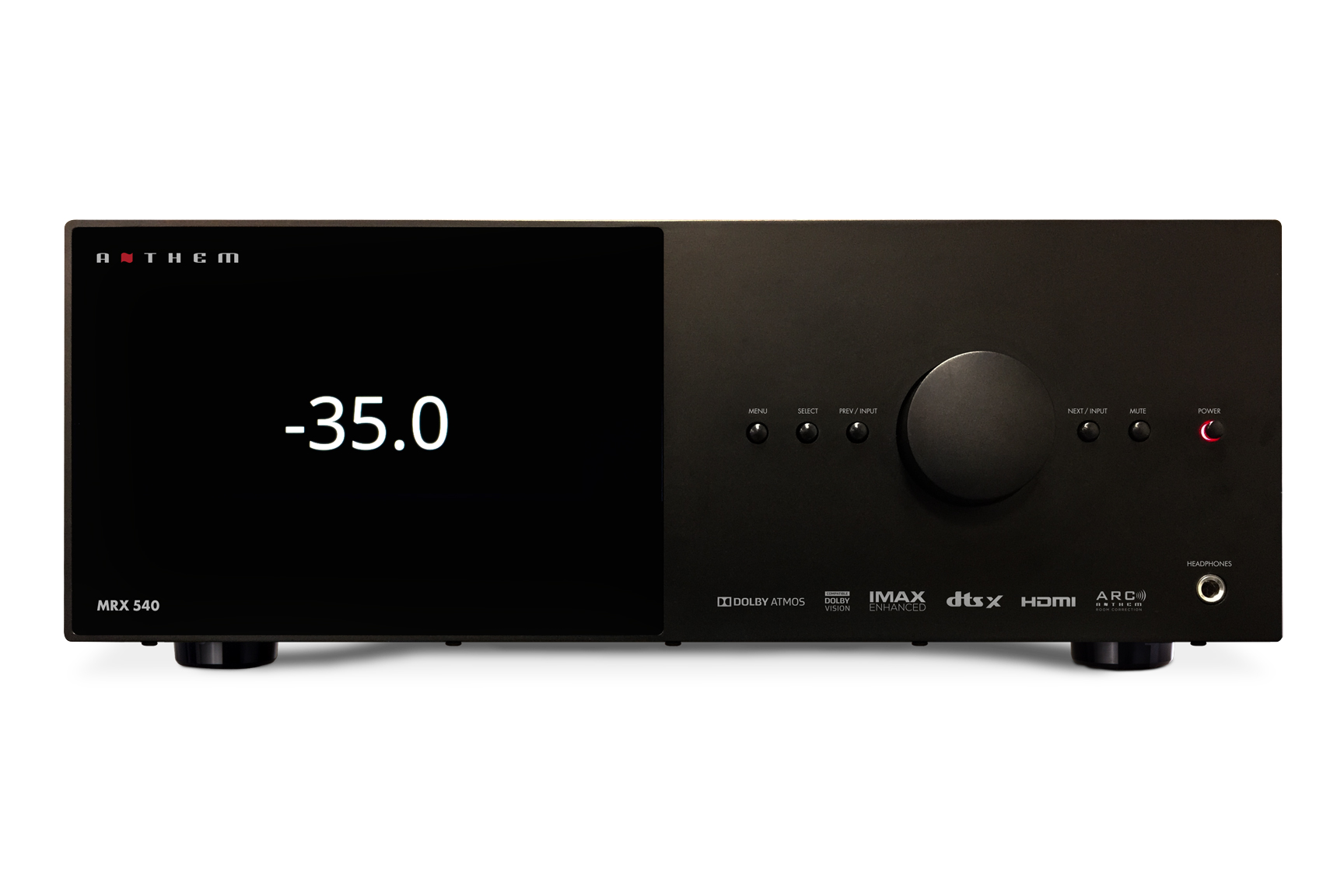

Anthem’s MRX 540 8K and all of their A/V Receivers are about maximizing audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem’s Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

The MRX 540 8K, 740 8K and 1140 8K are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 2 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.

Complexity Simplified

At Anthem, our goal is to shape how you interact with your technology, so we went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondardy zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You’re in control, and it’s never been easier.

Advanced 8K HDMI Platform with e-ARC Support

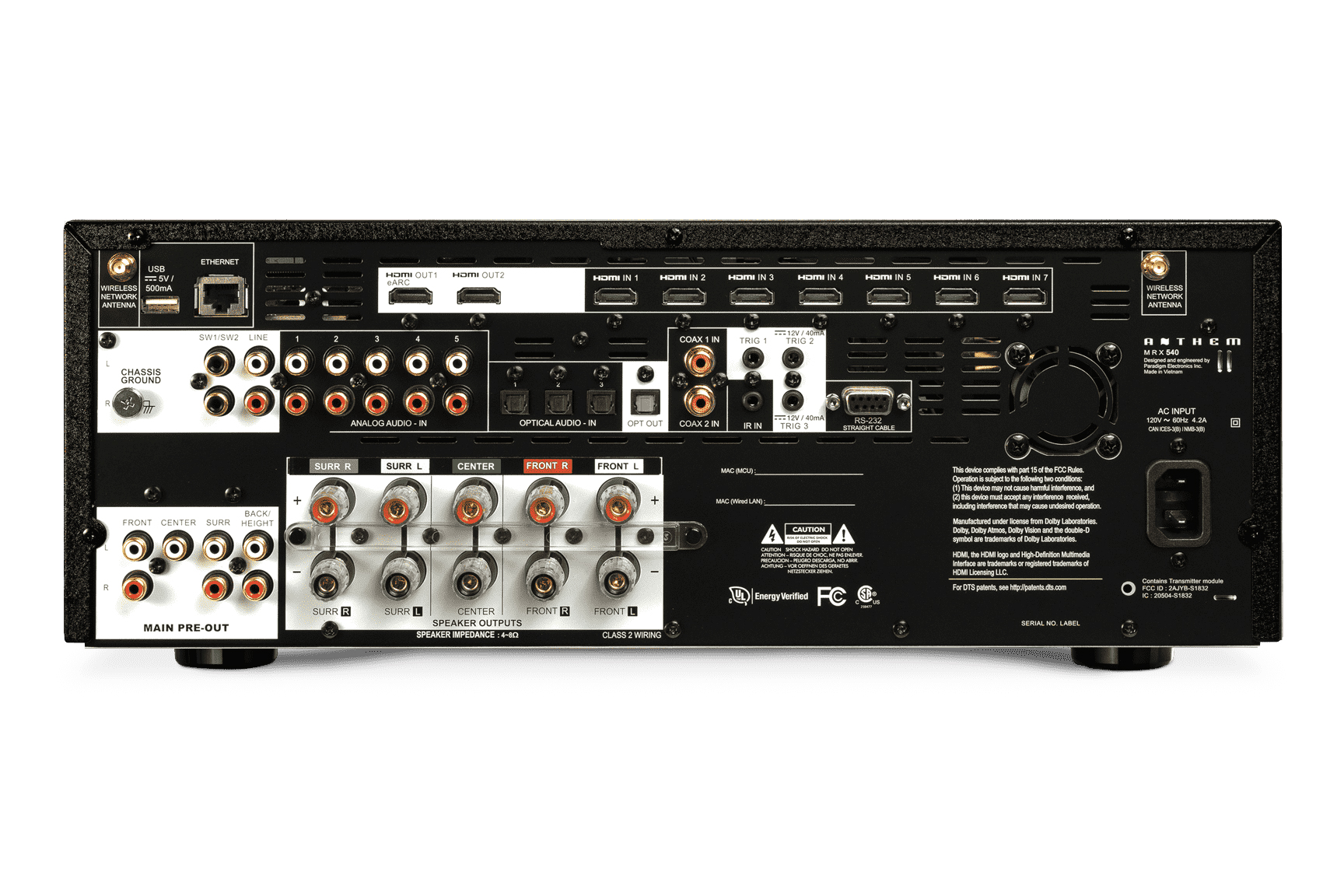

Feel the power of every frame with the MRX Series and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs which support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the MRX 540, 740 and 1140 allow you to take your home entertainment to the next level with HDR10+, Dynamic HDR10+, ALLM and VRR support. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.

Experience Gaming Like Never Before on an MRX

It’s never been a more exciting time to be a gamer. With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the MRX Series, our most feature-rich AV receivers to date!

Design

At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.

PREAMPLIFIER
Maximum Output (<0.1% THD) 5.2 VRMS, 7.1VRMS
Frequency Response 20Hz – 30KHz +/-0.2dB
Frequency Response, Analog-Direct N/A
THD+N (2 Vrms output) -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) 110 dB
PREAMPLIFIER + AMPLIFIER (1 W OUTPUT)
MRX 1140 / MRX 740 SNR: 91 dB ch 1-5, 86dB others
MRX 540 SNR: 91 dB ch 1-5
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)
  MRX 1140 MRX 740 MRX 540
Channels 1-5, Two Driven into 8 Ohms 140 W 140 W 100 W
Channels 1-5, Two Driven into 6 Ohms 170 W 170 W 130 W
Remaining Channels, Two Driven into 8 Ohms 60 W 60 W n/a
Remaining Channels, Two Driven into 6 Ohms 75 W 75 W n/a
POWER CONSUMPTION
  MRX 1140 MRX 740 MRX 540
Typical Load 570 W 485 W 365 W
Standby 0.3 W 0.3 W 0.3 W
Standby IP Control Enabled 1.8 W 1.8 W 1.8 W
Standby HDMI Bypass Enabled 4.9 W 4.9 W 4.9 W
DIMENSIONS
Height (without feet) 6″ (15.24 cm)
Height with Rackmount Kit 4U
Width 17″ (43.18 cm)
Depth (including wifi ant not power cord) 14-1/2″ (36.4 cm)
WEIGHT
MRX 1140 33.6 lb (15.2 Kg)
MRX 740 33.2 lb (15.1 Kg)
MRX 540 28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.

Brand

Anthem

Unleash the true power of your home audio with Anthem receivers. Dive deep into the detail of your favorite recordings or bring unprecedented power to your next movie viewing with their diverse line of products. Anthem brings two decades of hands-on design and audio engineering into each endeavor for the most precise power, control and performance every time. As a result, Anthem is a trusted brand for audiophiles and professional musicians and engineers.

Though best known for its robust and reliable hardware, Anthem also offers proprietary software with its Anthem Room correction technology that allows for the most precise calibration in the industry. All of their products include this feature and an independent power supply for ultimate sound clarity and stability. Just as vital, their systems are highly functional with simple schematics and easy-to-navigate interfaces.

From preamplifiers primed for the most discerning 2-channel setups to power amplifiers able to drive an immersive surround sound system, Anthem has you covered. For example, the MRX-740 8K is the ideal engine behind any theater. It provides object-oriented audio to up to 15 speakers with 140 watts per channel while supporting 8K/60Hz or 4K/120Hz passthrough for crystal-clear images.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Anthem home theater receivers, selling customers the best home theater receivers from Anthem in Sales Tax Free Delaware. Interested in purchasing a new Anthem component? You can trade-in any component towards an Anthem component by filling out Overture's Trade-In Form.
