$11,000.00

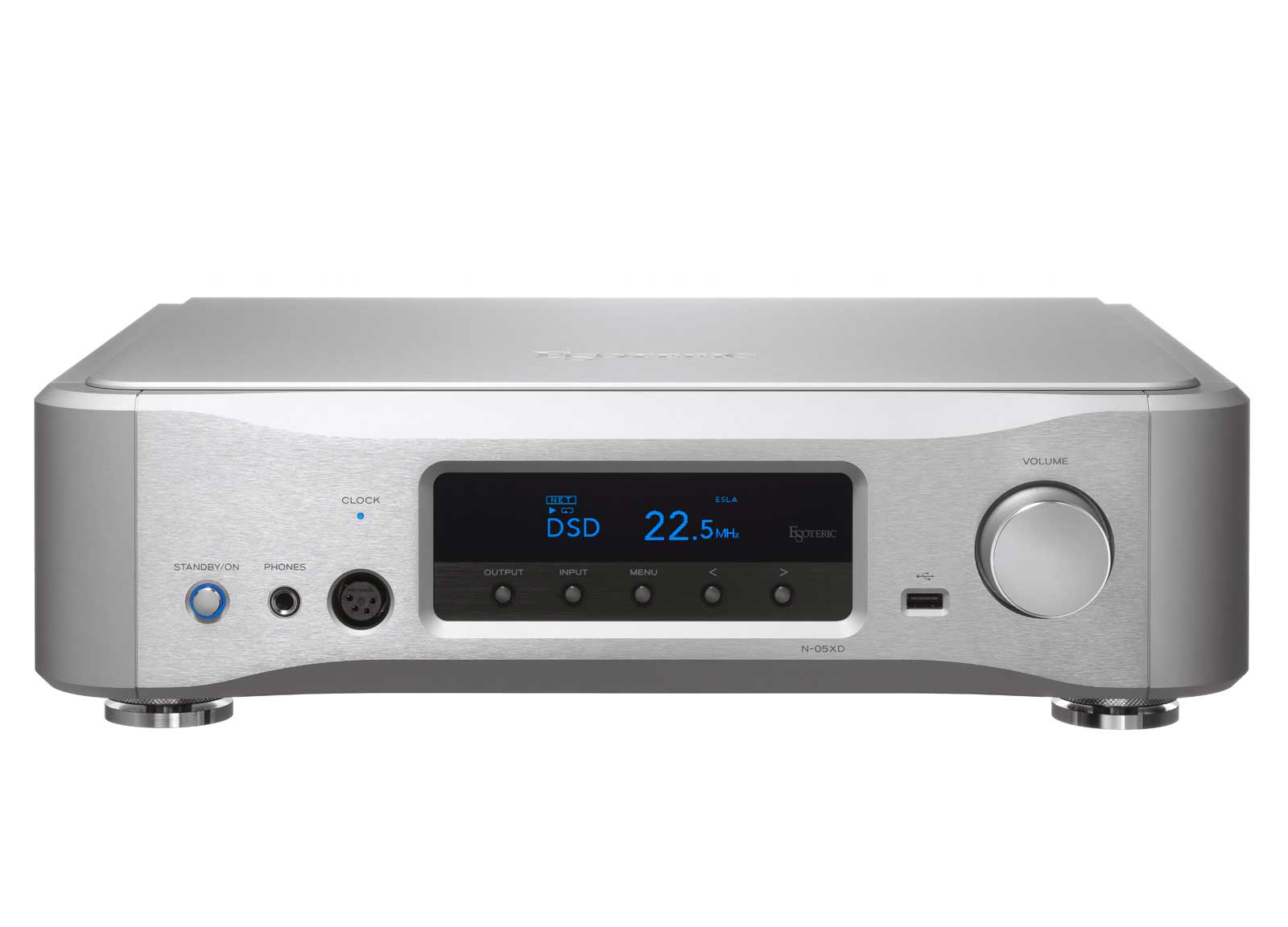

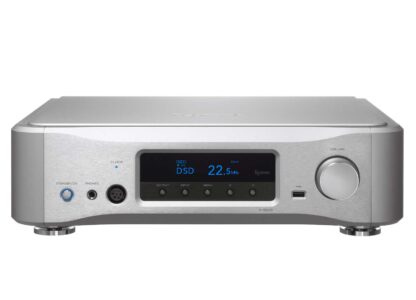

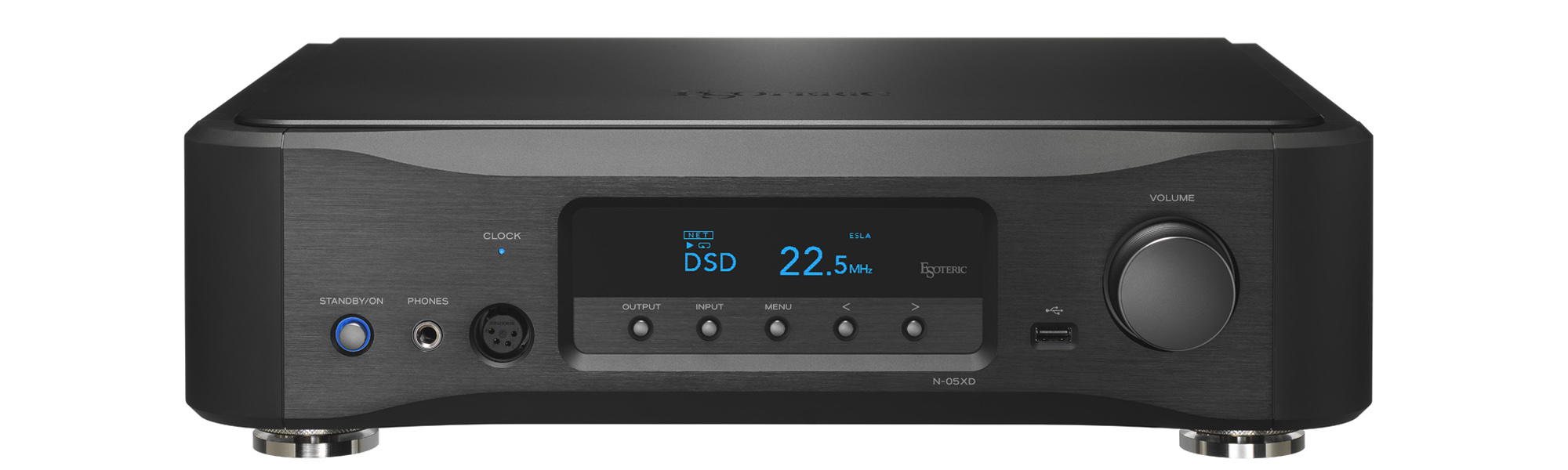

Network Audio Player

If you have a trade-in, request Trade-in Price.

Product Description

The Master Sound Discrete DAC inside the Esoteric N-05XD Network Player invites you to a new digital audio world, an attenuator system that maximizes potential of your speakers and power amplifier, digital and analog inputs, and preamplifier that settles in the middle of the system.

Starting a new way of audio with network technologies.


Employing a newly developed Master Sound Discrete DAC

A newly developed DAC for the Esoteric N-05XD Network Player continues the philosophy of the Grandioso D1X’s Master Sound Discrete DAC that reached the summit.

* The Master Sound Discrete DAC is a fully in-house designed discrete DAC completed by ESOTERIC who has been aiming for the original master sound.

The Heart of the System: A Fully Balanced Dual Mono Preamplifier

At the core of any audio system, the preamplifier circuitry plays the central determining factor in how sound is perceived. The N-05XD inherits the Grandioso line’s high fidelity and superb musical expression, a compendium of both Esoteric’s long-held philosophy and advanced technology, while further inheriting its esteemed pedigree. With its long-established fully balanced dual mono configuration, the preamplifier’s dynamic yet delicate sound transcends the boundaries of playback quality, and even goes so far as to delineate the sensibilities of both the performers and the sound engineer.
Esoteric-QVCS Attenuator System Achieves Both Excellent Operability and Sound Quality

Installed in the N-05XD’s preamplifier section, the Esoteric-QVCS* Attenuator system features a total of four collectively operated attenuator circuits that independently and electronically control the left and right audio channels and their positive and negative phases. This system helps maintain superb audio clarity, excellent channel separation and highly accurate phase characteristics. Additionally, the vastly shorter audio signal path helps minimize sound quality deterioration at both low and high volumes and allow the complete, unadulterated expression of musical passion.
* QVCS = Quad Volume Control System
High-Precision Ball Bearing Volume Control Knob

Providing ultra-smooth analog operating feel, the N-05XD’s volume control utilizes the same ball bearing support mechanism featured in Esoteric’s premier Grandioso line. The volume knob itself is also precision-machined from solid aluminum.

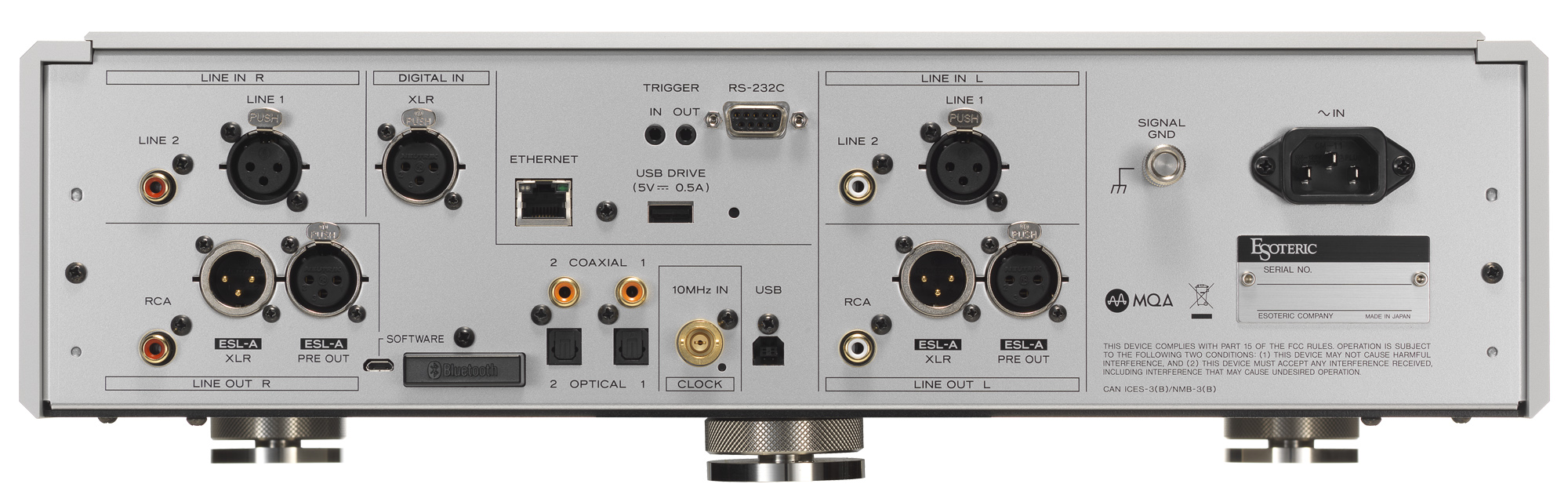

Digital audio inputs
XLR 1
Input signal formats
Linear PCM 32k to 192kHz, 16bit / 24bit (AES/EBU format)
DSD 2.8MHz (ES-LINK1, ES-LINK2, DoP format)
RCA 2
Input signal formats
Linear PCM 32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD 2.8MHz (DoP format)
Optical 2
Input signal formats
Linear PCM 32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD 2.8MHz (DoP format)
USB 1 (USB B connector)
Input signal formats
Linear PCM 44.1k to 384kHz, 16bit / 24bit / 32bit
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
ETHERNET 1 (1000BASE-T)
Input signal formats
Linear PCM 44.1k to 384kHz, 16bit / 24bit / 32bit (stereo)
Only integer format file supported
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)
Supported file formats
PCM Lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD Lossless DSF, DSDIFF (DFF) , DoP
Compressed audio MP3, AAC (m4a container)
USB DRIVE 2 (Front, Rear)
Supported file system FAT32, exFAT, NTFS, Single partition, USB2.0 or later recommended
Maximum current supply 0.5A
Input signal formats
Linear PCM 44.1k to 384kHz, 16bit / 24bit / 32bit (stereo)
Only integer format file supported at 32bit
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)
Supported file formats
PCM Lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD Lossless DSF, DSDIFF (DFF) , DoP
Compressed audio MP3, AAC (m4a container)
Analog audio inputs
XLR 1 pair (L/R)
RCA 1 pair (L/R)
Analog audio outputs
XLR/ESL-A 1 pair (L/R)
ESL-A PRE-OUT 1 pair (L/R)
RCA 1 pair (L/R)
Bluetooth® section
Version 4.0
Supported profile A2DP, AVRCP
Supported A2DP codec LDAC, LHDC, aptX™ HD audio, aptX™ audio, AAC, SBC
Headphone out section
Balanced 4-pin XLR × 1
Unbalanced 6.3mm Standard Phone jack × 1
Clock sync section
BNC 1
Input frequency 10MHz (±10ppm)
General
Power
AC 120V, 60Hz
AC 220 – 240V, 50Hz
Power consumption 38W
Overall dimensions (W×H×D) 445 × 131 × 377mm (including protrusions)
Weight 13.8kg
Included accessories Power cord × 1
Remote control unit (RC-1334) × 1
Owner’s manual × 1
