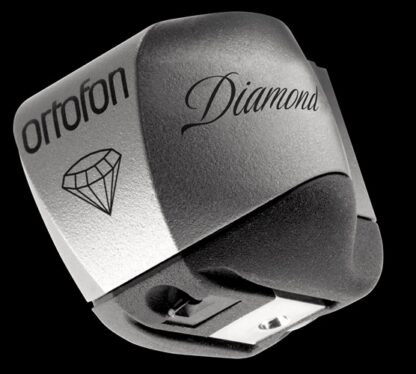

Ortofon MC Diamond

$9,999.00

If you have a trade-in, request Trade-in Price.
Category: Tags: , ,

Product Description

The Ortofon MC Diamond model represents the highest echelon of Moving Coil cartridges. As its name suggests, the MC Diamond uses a Diamond cantilever that in combination with Ortofon Replicant 100 diamond offers extreme transparency, speed and responsiveness beyond that of any other combination.
This state of the art product, representative of numerous Ortofon design elements and ideas, is truly exemplary of the highest degree of performance possible in contemporary analogue playback technology.

The MC Diamond Technical data

Output voltage at 1000 Hz, 5cm/sec.  –  0.2 mV
Channel balance at 1 kHz  –  0.5 dB
Channel separation at 1 kHz  –  25 dB
Channel separation at 15 kHz  –  22 dB
Frequency response  –  20 Hz – 20 kHz +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force  –  80 µm
Compliance, dynamic, lateral  –  9 µm/mN
Stylus type  –  Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
Stylus tip radius  –  r/R 5/100 µm
Tracking force, recommended  –  2.4 g (24 mN)
Tracking angle  –  23°
Internal impedance, DC resistance  –  6 Ohm
Recommended load impedance    > 10 Ohm

Cartridge body material  –  SLM Titanium
Cartridge colour  –  Silver/Black
Cartridge weight  –  16 gram

LW-800S leadwires enclosed the package.

The Ortofon MC Diamond design elements

• The housing and the body of the cartridge are made in Titanium with the Selective Laser Melting technique
• High-performance iron-cobalt alloy is applied for select parts of the magnet system.
• The Wide-Range armature damping system provides complete elimination of unwanted resonance.
• The Ortofon Replicant 100 diamond, thin and light, with an extraordinarily large contact surface, provides tracing accuracy unparalleled by any other needle in existence.
• The use of Diamond cantilever in the MC Anna Diamond has prompted a paradigm shift in our understanding of analogue reproduction. The improvements found in the use of a Diamond cantilever have redefined the boundaries of analog reproduction, presenting greater inner detail, subtlety, and depth like never before.

Brand

Ortofon

Ortofon can proudly call themselves audio pioneers. Ortofon's history begins in 1918, with two audio engineers creating movie soundtracks and high-class recordings. Today, it is a leading manufacturer of high-quality phono cartridges, hearing aids, and audio accessories, focusing on innovation and precise engineering. From its modest Danish beginnings, Ortofon products are now found worldwide through 60 importers and subsidiaries in the USA and Japan.

They boast a reputation for producing some of the world's most accurate and musical cartridges. A team of 150 audio experts at their headquarters in Naskov, Denmark, designs and manufactures all their products. With their commitment to precision and musicality, there's a reason they've survived as audio experts for over one hundred years.

Ortofon offers a wide range of cartridges to suit different preferences and budgets, from the affordable OM Series to the high-end Cadenza and Windfeld Series. Round out your 2-channel setup with their audio accessories, including tonearm cables, headshell leads, and stylus cleaners. These products optimize the performance of your turntable and phono cartridge and ensure that your vinyl collection sounds its best.

Overture invites you to experience Ortofon's complete line of phono cartridges. If you are interested in purchasing an Ortfon phono cartridge, you can trade-in any turntable, speaker, or electronic component toward a Ortofon component by filling out our Trade-In Form.
