Product Description

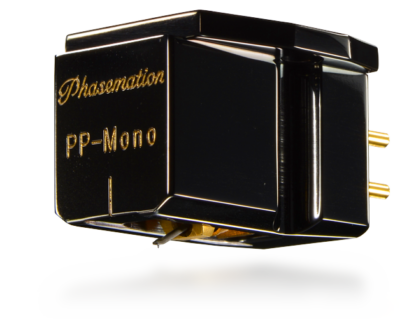

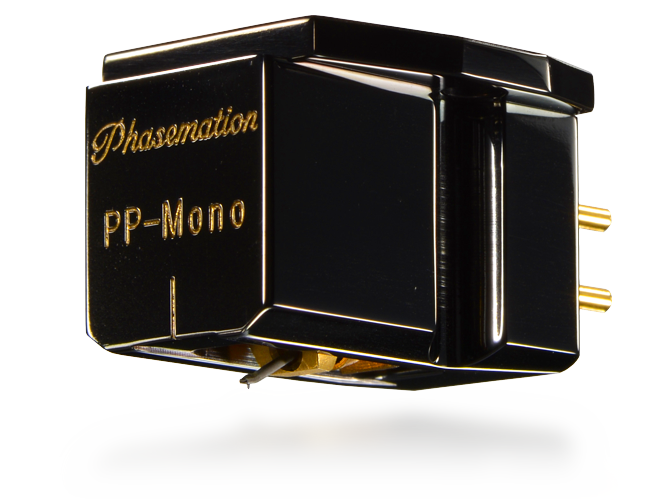

The Phasemation PP-Mono can produce music reality and even an artist’s passion engraved in records;Long-awaited MC monaural cartridge released by Phasemation.

A monaural cartridge remains firm favorites of analog audiophiles. However, some of them say the current sound cannot provide enough satisfaction. So, after the long development period, Phasemation has successfully created almost ultimate harmony between ‘the midrange-treble-part with high freshness’ and ‘the resonant bass part’ for even monaural cartridge.

The Phasemation PP-Mono, the model of 10th anniversary of our brand establishment, as the culmination of cartridge development for more than a decade.

The appearance and material of the magneto system in the Phasemation PP-Mono are newly designed about the high efficiency and high resolution for providing for monaural. R of end of stylus chip to key of tracing is set to 1.0 mil. For cantilever, the aluminum pipe, which is light and strong and excellent to capability tracing a monaural signal, is adopted. By combining the originally-designed magneto coil with this, the recreation of excellent feeling of sound field and freshness has been successfully realized, which has been difficult for the conventional monaural cartridges.

For the materials of the Phasemation PP-Mono base and body we adopt stainless material and duralumin respectively. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the structure excellent at rigidity and vibration-damping characteristics is realized.

DLC (Diamond Like Carbon） is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.

We inherit the following materials for high quality audio sound well-acknowledged in our PP-1000: samarium-cobalt magnet, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin and others.

Magneto method Moving coil method
Impedance 4 ohms
Appropriate stylus pressure 2.0 g
Output voltage 0.38 mV(1 kHz, 50 mm/s, Horizontal direction)
Compliance 8.0×10(e-6) cm/dyne
Playable frequency range 10Hz to 30kHz
Channel balance 1 dB or less (1 kHz)
Mass of body 14.7 g
Stylus chip: Diamond (Round pin; Curvature: 1.0 mil)

Brand

Phasemation

"Phasemation" is a word created by combining "Phase" and "Information". Fundamental to the reproduction of audio is the reproduction of stage left and stage right in live music in two channel playback. To attain that goal, the phase characteristics between the channels are very important, and that is why we created our unique Phasemation phono cartridges.

The technological root of our company is the development and manufacturing of electronic measurement instruments. Therefore, we are in a position to be able to utilize our most advanced technology for the development and manufacturing of exquisite hi-fi audio equipment where accurate phase characteristics are required.

The sound that we strive to create is the reproduction of live music in front of the listener as if the actual musicians are playing, along with the reproduction of the players' pathos and emotions. We believe that the achievement of such a level of musical reproduction is the goal of stereo components. To realize our goal, important technical elements such as phase characteristics, circuit technology and vibration control technology are required. Using our in-house developed technology, our ideal stereo system can be developed and manufactured.

As a nationally recognized leader in high-end audio and home theater, Overture is a proud dealer of Phasemation cartridges, selling customers the complete line of moving coil cartridges from Phasemation. Interested in purchasing a new Phasemation cartridge? You can trade-in your current cartridge towards a Phasemation cartridge by filling out our Trade-In Form.
