McIntosh MPC100 Power Conditioner
MPC500
McIntosh MPC100 Power Conditioner
MPC500

$3,000.00

Power Controller

If you have a trade-in, request Trade-in Price.



Only available for in-store purchase.

Category: Tags: , ,

Product Description

Inconsistency in power quality can cause costly damage to electronic devices. Protect your home audio investment with the MPC500 Power Controller. Featuring cascaded surge protection, the McIntosh MPC500 delivers full mode AC power line surge protection, such as from a lightning strike, as well as protecting low voltage devices against secondary surges and spikes that can occur after the initial event.

AC power line protection is accomplished with the use of three thermally protected metal-oxide varistors (TPMOVs) – which are far safer than traditional MOVs – that provide you with Line to Neutral, Line to Ground and Neutral to Ground protection. For secondary surge events, the MPC500 provides protection for your ethernet, coaxial, and other low voltage devices via Gas Discharge Tubes (GDT), Positive Temperature Coefficient (PTC) thermistors and Transient Voltage Suppression (TVS) components. Also included in the McIntosh MPC500 is electromagnetic interference (EMI) filtering of the AC line and over/under voltage protection, which will switch off the rear receptacles to keep your connected devices safe from trying to operate at undesired voltage levels.

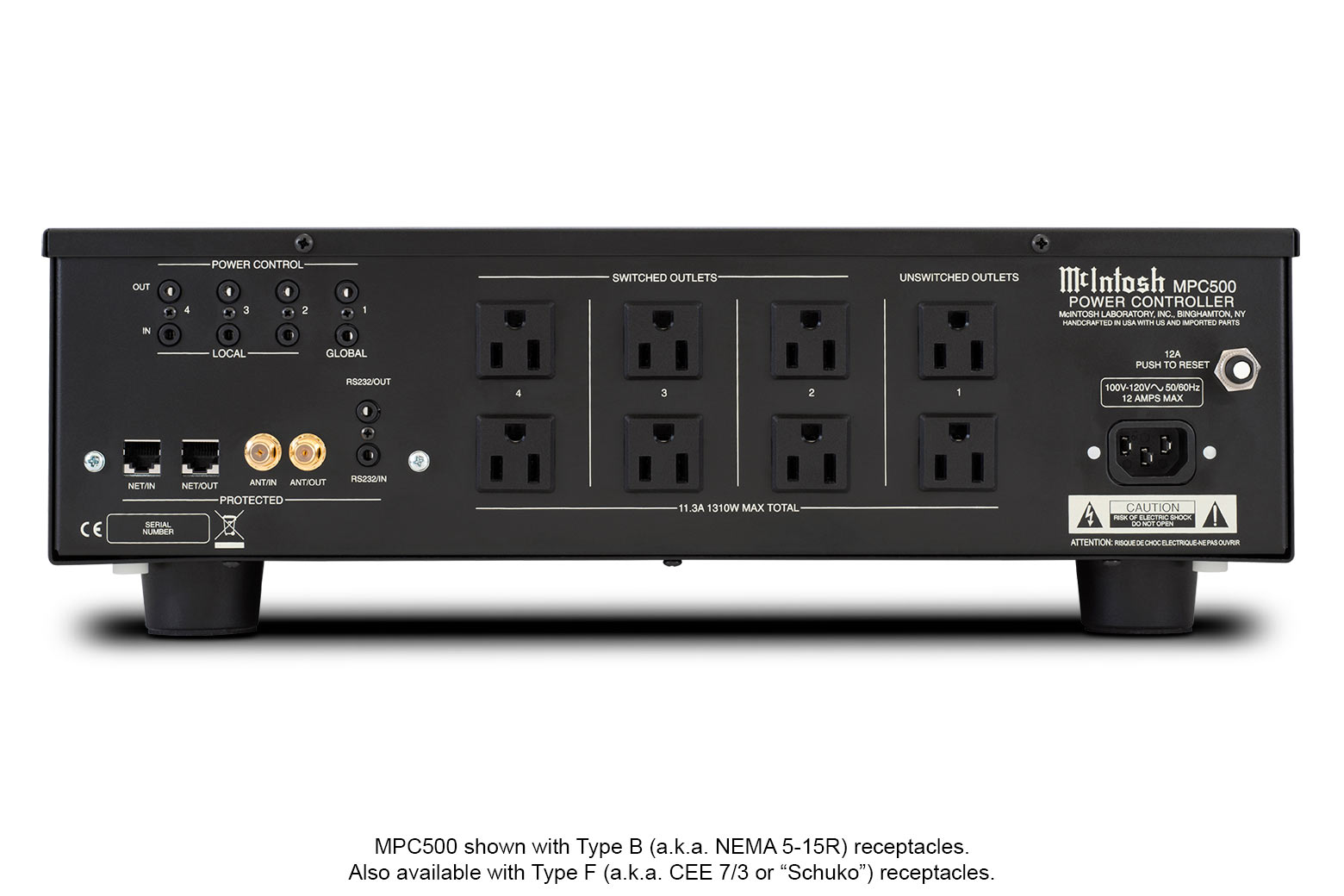

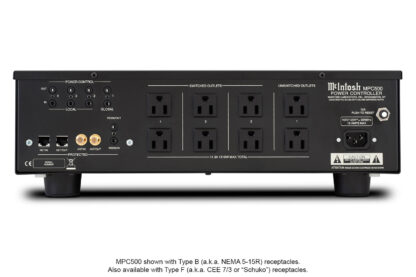

The McIntosh MPC500 includes either 8 Type B1 (a.k.a. NEMA 5-15R) or 4 Type F1 (a.k.a. CEE 7/3 or “Schuko”) receptacles; only the appropriate version is available in each individual country to ensure compatibility with local power systems. Control of each receptacle can be configured to your preferences via the rear panel Power Control ports or through the setup menus on the front panel.

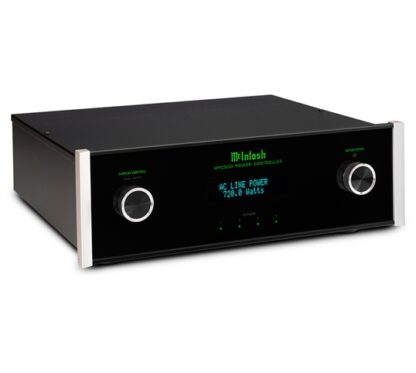

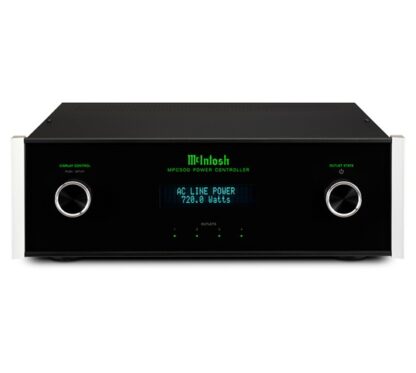

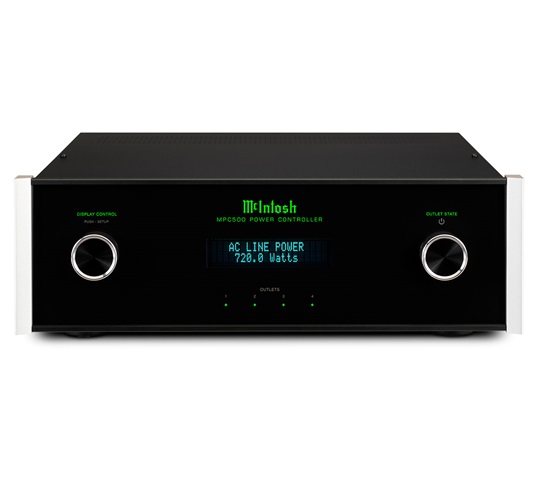

The front panel display can list input voltage, the amount of current being drawn through the receptacles, or total (apparent) power. Regardless of receptacle type, all versions of the McIntosh MPC500 feature the timeless McIntosh black glass front panel, illuminated logo, control knobs, and aluminum end caps.

ELECTRONIC SPECIFICATIONS

  • Load Regulation
    N/A
  • Output Voltage
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts AC Nominal

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    240 Volts AC Nominal

  • Power Requirement
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts, 50/60Hz
    12.0 Amps (max)
    1440 Watts (max)

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    240 Volts, 50Hz
    6.0 Amps (max)
    1440 Watts (max)

GENERAL SPECIFICATIONS

  • AC Power Line Protection
    Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection
  • Surge Suppression Type
    AC Power Line: thermally protected metal-oxide varistor (TPMOV)
    Secondary Surges: GDTs, PTC thermistors, TVS components
  • Number of Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    8

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    4

  • Number of Always ON Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    2

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    1

  • Number of Programmable Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    3 pairs

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    3

  • Meters
    0
  • Meter Light Switch
    N/A

WEIGHTS & DIMENSIONS

  • Unit Dimensions (W x H x D)
    17-1/2” (44.45cm) x 6” (15.2cm) x 19” (48.26cm)
  • Unit Weight
    18.5 lbs (8.39 kg)
  • Shipping Weight
    34 lbs (15.42 kg)
