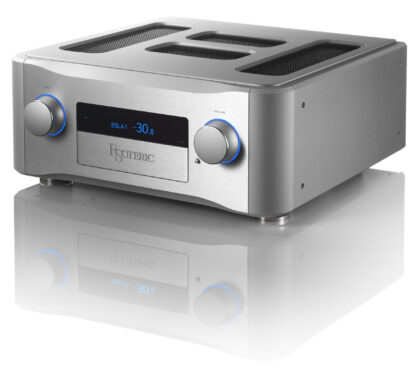

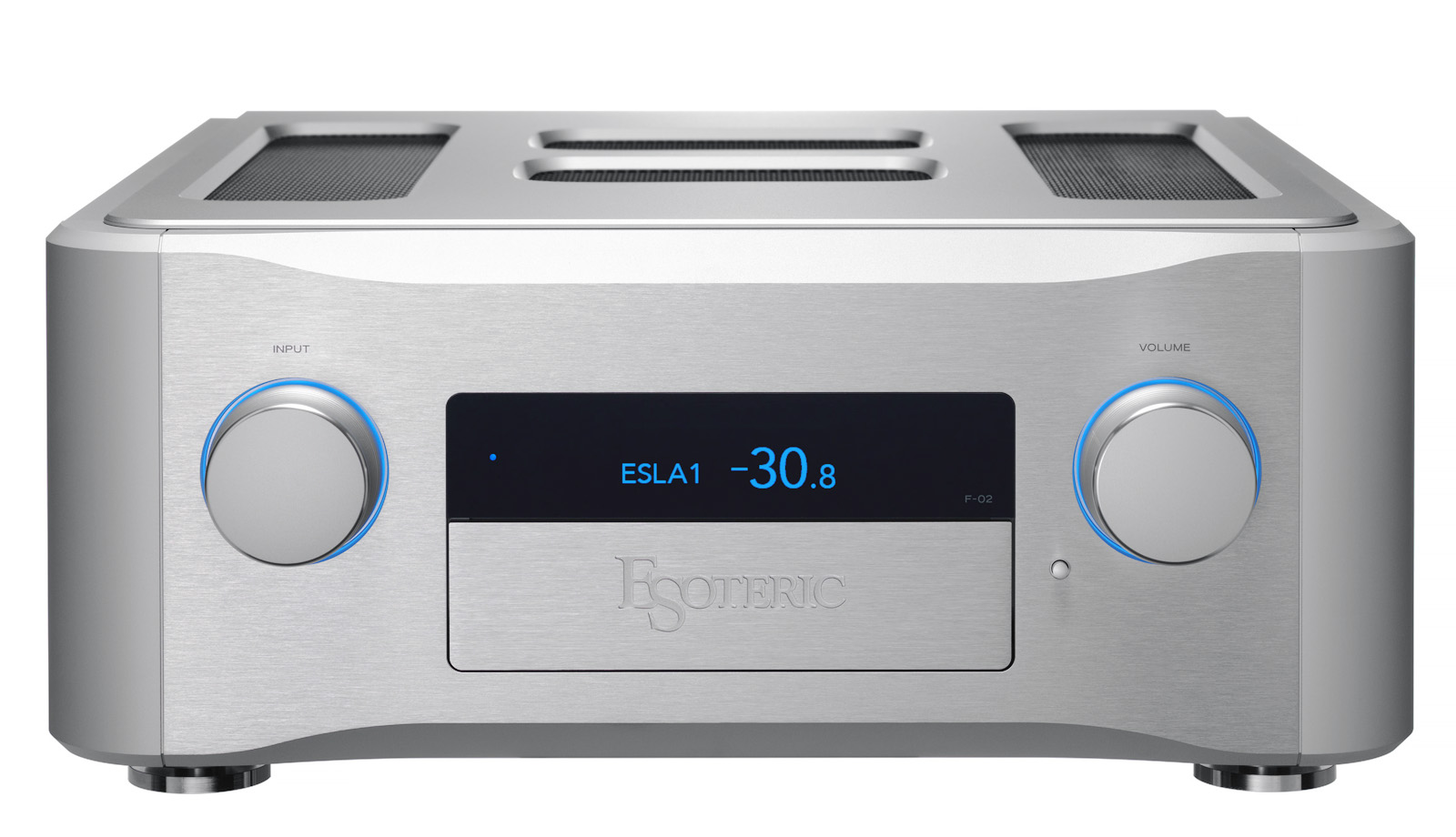

Esoteric F-02 Integrated Amplifier
Esoteric F-02 Integrated Amplifier
Esoteric F-02 Integrated Amplifier
Esoteric F-02 Integrated Amplifier

$18,000.00

Class A/B integrated amplifier

If you have a trade-in, request Trade-in Price.



Category: Tags: ,

Product Description

The Esoteric F-02 Integrated Amplifier is the “Finest” Integrated Amplifier You Could Ever Want – The new F Series integrated amplifiers are the culmination of a range of technologies designed to fulfill your ideals.

Incorporating all of the preamp and power amp developments from the flagship Grandioso “X” Edition, the new F Series integrated amplifiers deliver outstanding musicality that captures the rich textures of music in a single integrated amplifier. Despite the fact that the F Series is an integrated amplifier, it delivers a thorough quality and performance that will be the envy of all separate amp users. The F Series is the integrated amplifier that owners of Esoteric’s K and N Series digital players have been waiting for, and it pushes the boundaries of integrated amplifier technology.

Key Features of the Esoteric F-02 Integrated Amplifier

[Preamplifier Section]

  • A fully balanced dual mono preamp in the direct line of the Grandioso C1X
  • “Ultra Fidelity Attenuator System”, a stepped attenuator circuit developed by Esoteric
  • Volume can be adjusted in 0.1dB/1,120* steps with our proprietary attenuator module “UFA-1792” *Preamp gain setting: at +12dB
  • 3 inputs of “ES-Link Analog”, a unique and proprietary current transmission system
  • Two headphone outputs (balanced 4-pin XLR / unbalanced 6.3mm) with built-in fully balanced dual mono headphone amplifier
  • Dual mono phonostage preamp (RCA x 1, MM/MC)
  • 3-band balanced tone control, independently adjustable for each input source
  • ES-Link Analog(x1) /XLR (x1) pre-out for connecting the S-05 as an external power amplifier
  • Dedicated DC power connector for connecting the PS-01F external power supply dedicated to the built-in preamp (to be released later)
  • Preamp gain can be adjusted in 4 steps (0/+6/+12/+18dB) to match the connected power amplifier

[Amplifier Section]

  • Simple and straightforward circuit design concept based on Grandioso M1X
  • 120 WPC/8Ω
  • Excellent power linearity and driving power (240 WPC/4Ω)
  • All stages of the power rectification and smoothing circuit are configured with dual monaural design
  • Powerful bipolar transistor 3-parallel push-pull configuration
  • Huge 940VA EI core power transformer
  • Channel-independent Grandioso grade custom block capacitors (10,000μF x 4/ch)
  • Custom wave-shaped heat sinks to reduce peak resonance

[Other Features]

  • Independently adjustable input gains (±18dB; 0.1dB steps)
  • L/R channel balance (0.1dB steps)
  • AV through output (volume bypass) ensures seamless coexistence with AV systems
  • Aluminum body remote controller (RC-1339) can also be used to operate Esoteric’s SACD players and network players
  • Displayed source device names can be programed
  • Mute, dimmer and automatic display-off functions
  • Control functions (RS-232C, trigger input / output)

Brand

Esoteric

Since 1987, Esoteric has pursued a path dedicated to being a superior high-end audio/video brand focused on introducing components of the best value by merging innovative, proprietary recording and replay technologies. In order to meet the desires of musical and visual connoisseurs who are seeking new levels of excitement, Esoteric’s mission has been to continue to develop and release new products that improve upon the "state of the art" from highly acclaimed SACD players to the finest audio components.

Esoteric applied its no-compromise philosophy with the same intense consideration to its flagship Grandioso series to produce the next dimension of sound and audio immersion. With the Grandioso series, Esoteric sought to eradicate ANY distortions and colorations by taking a fresh look at entrenched norms and design elements, and by scrutinizing every last design detail – no matter how minute. All of the design tweaks, too numerous to elaborate here, yield an exceptional sonic purity that sweeps away distractions and enables listeners to experience an unprecedented level of musical detail and stunning visual presentation.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Esoteric audio components, selling customers the best audio components from Esoteric in Sales Tax Free Delaware. Interested in purchasing a new Esoteric product? You can trade-in any component towards an Esoteric audio component by filling out Overture's Trade-In Form.
