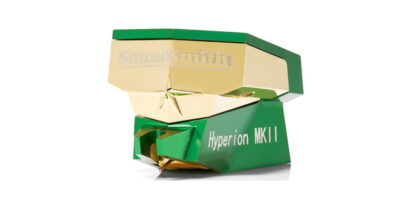

Soundsmith Hyperion MKII-MR Phono Cartridge
Soundsmith Sussurro Gold Limited Edition Cartridge

$9,999.95

If you have a trade-in, request Trade-in Price.



Category: Tags: , ,

Product Description

The Soundsmith Hyperion MKII-MR Phono Cartridge is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann‘s radical design utilizes an actual “cactus spine” for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. The Hyperion is complimented with our selected OC-CL stylus. Each one hand crafted by Peter Ledermann – Made in  the USA. Rebuild Price? $950  ~ less than 10% of MSRP  !! – Imagine getting a NEW Hyperion for $950 each time you wear it out, or break it by accident……certainly one of the fears of owning a high end cartridge. Not anymore! You will NOT lose your investment with a Soundsmith Hyperion as you do with all other brands……

Output

Low

Output Voltage

0.4 mV

Available As Dual Coil Mono

Yes ($300 additional)

Additional Specifications



Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Micro-Ridge, 0.08 mm square
Radius of Curvature: • Selected Optimized Contour Contact Line
Cantilever: • Hand formed/treated selected Cactus “Spine”
Recommended Tracking Force: • 1.8 – 2.2 g
Effective Tip Mass: • 0.30 mg
Compliance: • 10 μm/mN
Frequence Response: • 20 – 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: • > 36 dB
• N/A (Mono version)
Channel Separation @ 50 – 15,000 Hz: • > 25 dB
• N/A (Mono version)
Channel Difference: • < 0.5 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 0.40 mV
DC Resistance (DCR): • 10Ω
Coil Inductance per channel: • 2.75 mH
Suggested Preamp Gain: • 58 – 64 dB
Cartridge Weight: • 12.2 g (ES series)
Recommended Load Resistance: • ≥ 470Ω
Recommended Load Capacitance: • n/a

Brand

Soundsmith

Dedicated to establishing the most accurate vinyl sound reproduction in the world, Soundsmith has been designing, manufacturing and repairing audio equipment for over 40 years. Headquartered in Peekskill, NY, the company is known for its exquisite sound quality and high-value products. Each product is proudly handcrafted in the US by a select group of artisans and engineers.

Enjoy the ultimate sound quality through their Strain Gauge and Fixed Coil cartridges or upgrade your hi-fi system through their renowned cartridge restoration services for companies like Audio Research, Bang & Olufsen and McIntosh. Although best known for cartridges, the company also offers adapters, phono preamps, amplifiers and speakers.

Their new moving Iron cartridge, the Voice, is just one example of the company’s constant innovation. It addresses common vibrational issues with a new ES shape. The new body, featured in all new cartridge releases, reduces moving mass through the use of cutting-edge materials and design. Have the perfect match no matter your hi-fi set up with their extensive line of cartridges available for low-output, medium-output and high-out cartridges.

All Soundsmith cartridges must be purchased and installed through a dealer to ensure the ultimate performance from their products. Have one of the nation’s leaders in high-end audio and home theaters help you find the right Soundsmith product for you.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Soundsmith phono cartridges, selling customers the best Soundsmith cartridges in Sales Tax Free Delaware. Interested in purchasing a Soundsmith phono cartridge, you can trade-in any component towards a Soundsmith phono cartridge by filling Overture's Trade-In Form.
