Kaleidescape Strato V

$3,995.00

Ultimate 4K Movie Player

If you have a trade-in, request Trade-in Price.
Category: Tags: ,

Product Description

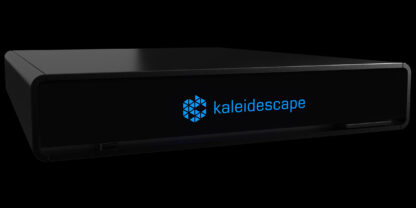

Introducing Kaleidescape Strato V Movie Player, the next generation of movie player technology. Providing stunning 4K Dolby Vision playback with lossless audio, Strato V works on its own or as part of a larger Kaleidescape system.

Strato V is the perfect option for new customers as an introduction to the Kaleidescape experience, providing access to our extensive content library of movies, TV series, and concerts with lossless audio and full reference video quality. With its standalone option, Strato V provides a lower cost of entry, at $3,995 MSRP.

Kaleidescape Strato V Movie Player is also fantastic for current Strato/Terra customers who have Dolby Vision displays throughout their house and want to add an additional viewing zone, or for their vacation home, to extend the Kaleidescape experience.

The next generation of movie player technology. Providing 4K Dolby Vision playback with lossless audio decode, Strato V works on its own or as a part of a larger Kaleidescape system.

  • Reference video for every 4K display. SDR, HDR10, and now Dolby Vision.
  • Lossless spatial audio. Clear dialog and immersive sound effects.
  • Standalone. An entry-level Kaleidescape system that works on its own.
  • Scalable. Add a server for more movies and whole-house entertainment.
  • Ultimate performance. New electronics and grounding topology for audiophiles.


Technical Details & Specifications

DIMENSIONS

· 7.87in x 1.52in x 10.0in (W x H x D)
(20.0cm x 3.9cm x 25.4cm)

WEIGHT

· 4.2lb (1.91kg)

POWER

· Max consuption: 9W

· Typical: 7.5W

· High power standby: 4.5W

· Lower power standby: 0.50W

· External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground

NETWORK

· Gigabit Ethernet (1000 Base-T)

OTHER CONNECTION

· USB 3.0 (reserved)

· Chassis GND connections (X2)

CONTROL

· Kaleidescape remote included

· Front-panel IR receiver window

· IR input (1/8in mini plug)

· Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)

· Lutron RA3 and HomeWorks control over Ethernet

ENVIRONMENT

· Operating: 41 to 95°F (5 to 35°C)

· Storage: -4 to 140°F (-20 to 60°C)

· Relative humidity: 20 to 80% (operation) 5 to 90% (storage)

· Maximum operating altitude: 10,000ft (3,048m)

· Heat output: 31 BTU/hr (9W) max

· Airflow: 5 CFM (8.4 m3/hr) max

FAN NOISE

· Silent in most installs, 17dB(A) when downloading in hot environments

VENTILATION

· Minimum 1in (2.5cm) space at the front

· Minimum 2in (5cm) space at the rear MOUNTS (sold separately)

MOUNTS (sold separately)

· Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space

· Wall mount available for mounting behind TV displays

CERTIFICATIONS

· CSA 62368-1

· IEC 62368-1

· FCC CLASS B

· CE

· RoHS Compliant

VIDEO OUTPUT

· HDMI 2.1

· HDCP 2.3 copy protection

VIDEO DISPLAY FORMATS

· Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

· Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

· Color spaces: BT.2020, BT.709, BT.601

· Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

· HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)

AUDIO OUTPUTS

· HDMI 2.1 (combined with video)

· Digital (coaxial RCA and TOS-link connectors)

AUDIO FORMATS (HDMI Connector)

· Dolby Atmos

· DTS:X

· Dolby TrueHD

· DTS-HD Master Audio

· Dolby Digital Plus

· DTS-HD High Resolution Audio

· Dolby Digital

· DTS Digital Surround

· Dolby MAT PCM

· PCM (up to 7.1ch, 96kHz/24-bit)

AUDIO FORMATS (Coaxial RCA and TOS-link connectors)

· PCM (2ch, up to 96kHz/24-bit)

STORAGE

· Standalone: Internal 960GB SSD (available storage for ~24hrs of 4K content)

· Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network

MEDIA

· Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality

Brand

Kaleidescape

For almost 20 years, Kaleidescape has sold some of the finest home movie players available. Kaleidescape Movie Servers are perfectly suitable for homes and yachts, offering stunning 4k Ultra HD graphics at 60 frames per second. Each system is capable of being integrated with modern AV controls to enable many cinematic features. This includes automatic dimming, screen masking, and more. The mission of Kaleidescape is to provide the finest cinematic experience to movie lovers so they can enjoy their favorite films in the best quality available anywhere.

Over the years Kaleidescape has perfected its home movie players for a truly pleasurable viewing experience. Specifically, products like the Strato offer top-shelf quality to consumers looking for the best in home entertainment. With an internal hard drive built in, these machines have the capability of storing approximately 300 high definition movies. Strato movie players also support lossless multichannel audio and are capable of playing HDR content on both televisions and projectors. Overall, Kaleidescape has designed highly distinguished movie players that offer some of the highest quality available thus far.

Overture is a proud dealer of Kaleidescape Movie Servers, selling customers the best movie players from Kaleidescape. Interested in purchasing a new Kaleidescape component? You can trade-in any component towards a Kaleidescape product by filling out our Trade-In Form.
