Product Description

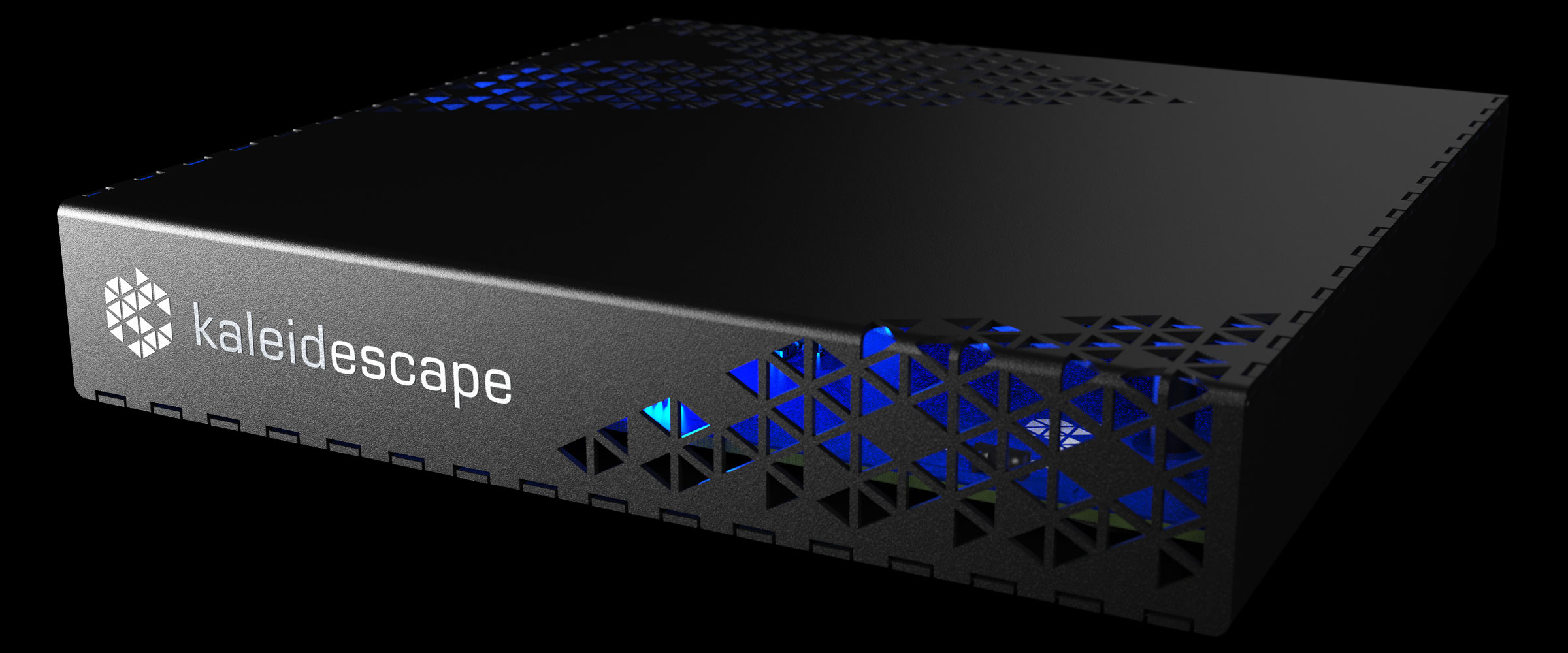

Kaleidescape is pleased to announce Strato M, a new entry-level movie player for residential, marine, and commercial theatre systems.
Like all Kaleidescape movie players, Strato M features lossless multi-channel and spatial object-based audio, including Dolby Atmos and DTS:X. Strato M supports reference 2K video, with better codec and higher bit rates and bit depths than Blu-ray, including Dolby Vision, HDR10, BT.2020, and 4:2:2 chroma.
Strato M works on its own or as part of a larger Kaleidescape system. As a standalone system, Strato M provides a single playback zone that holds a half-dozen movies on an internal solid-state drive – downloading a movie in about ten minutes over gigabit Ethernet. It features a streamlined interface, optimized for navigating a small movie library, offering automatic offloading of watched movies 48 hours after playback to make room for more movies. Purchased movies can be re-downloaded at any time. Strato M can also be grouped with Terra Prime movie servers to increase storage. This returns Strato M’s interface to the full Kaleidescape user experience.
Strato V, Strato C, and Strato M movie players can all be grouped together with one or more Terra movie servers, to fit your customers’ entertainment needs. Strato V (US MSRP $3,995) is perfect for primary zones that support Dolby Vision, while Strato C (US MSRP $2,995) is perfect for primary zones that do not support Dolby Vision, and Strato M is perfect for zones with viewing distance greater than 1.5 times the screen diagonal. Note that Strato V & M can work standalone, whereas Strato C requires a server.
Technical Details & Specifications
DIMENSIONS
- 6.4in x 1.1in x 6.4in (W x H x D)
(16.3cm x 3cm x 16.3cm)
WEIGHT
POWER
- Max consumption: 13W
- Typical: 4.3W
- High power standby: 3.8W
- Lower power standby: 0.5W
- External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground
NETWORK
- Gigabit Ethernet (1000 Base-T)
OTHER CONNECTION
- USB (for disc cataloging)
CONTROL
- Kaleidescape remote included
- Front-panel IR receiver
- Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)
- Lutron RA3 and HomeWorks control over Ethernet
ENVIRONMENT
- Operating: 41 to 95°F (5 to 35°C)
- Storage: -4 to 140°F (-20 to 60°C)
- Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
- Maximum operating altitude: 10,000ft (3,048m)
- Heat output: 44 BTU/hr (13W) max
- Airflow: none
FAN NOISE
VENTILATION
- Minimum 1in (2.5cm) space at the front
- Minimum 2in (5cm) space at the rear
MOUNTS (sold separately)
- Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato M players in a 19in rack, 1U space
- Wall mount available for mounting behind TV displays
CERTIFICATIONS
- CSA 62368-1
- IEC 62368-1
- FCC CLASS B
- CE
- RoHS Compliant
VIDEO OUTPUT
- HDMI 2.1
- HDCP 2.3 copy protection
VIDEO DISPLAY FORMATS
- Resolutions: 1080p60/50/30/25/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
- Chroma: 4:4:4 8/10/12-bit, 4:2:2 12-bit
- Color spaces: BT.2020, BT.709, BT.601
- Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
- HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)
- Movie playback up to 2K; UI in 2K
AUDIO OUTPUTS
- HDMI 2.1 (combined with video)
AUDIO FORMATS (HDMI Connector)
- Dolby Atmos
- DTS:X
- Dolby TrueHD
- DTS-HD Master Audio
- Dolby Digital Plus
- DTS-HD High Resolution Audio
- Dolby Digital
- DTS Digital Surround
- Dolby MAT PCM
- PCM (up to 7.1ch, 96kHz/24-bit)
STORAGE
- Standalone: Internal 480GB SSD (available storage for approximately 6 Kaleidescape high-bitrate movies)
- Grouped: Strato M can also access content stored on a Terra when connected and grouped via local network
MEDIA
