Magnepan .7x

$4,000.00

SOLD AS PAIR.

Only available for in-store purchase.

SHARE ON:

Product Description

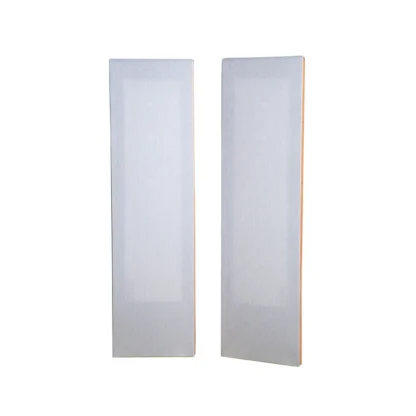

The .7 — High-End Audio where space is at a premium
An in-house favorite at Magnepan, the .7 model is the go-to speaker for those who are looking for world class sound at a reasonable price.

“Within minutes, I realized that the Magnepan .7 could image with the best speakers ever, and were going to take my music listening somewhere it had never quite been before. Whenever there is something fundamentally correct in a designers approach, the chances become extra good that the products of his or her efforts will reveal to a wide range of listeners fundamental musical truths.  And for me, the best thing about musical truths is that they never change or go out of fashion.”
Herb Reichert, Stereophile magazine, Vol. 38, No. 8

The (MG)X Upgrade Program
The general idea of the ‘X’ program is to take the existing design of a given speaker, and simply, almost one-for-one, replace all of the components leading up to the driver, with superior ones. This yields a noticeable, graphable, and awing improvement. There are certain model-specific features, but the MG___X Upgrade Program is at its core characterized by the following factors:

Better Capacitors
All capacitors that aren’t already, are replaced with high quality, copper-rich, polypropylene capacitors [banks]. Each capacitor [and bank] used is individually tested to the hundredth such that left and right crossovers’ capacitances are within five thousandths. With the increased level of testing and decrease in tolerance, minor value tweaks are employed in some models resulting in fewer capacitors used and a smoother response overall.

Better Coils (Inductors)
All coils that aren’t already, are replaced with high-gauge, copper wire, air-core, bobbin wound coils [arrays]. Each coil [array] used is individually tested to the tenth such that left and right crossovers’ inductances are within five hundredths. Model depended: with the above capacitance changes in mind, some values are minorly adjusted for smoother response overall.

Better Wiring
All wiring (aside from the green (+) and yellow (-) wires for True Ribbon Tweeters) is replaced with 15ga or higher solid copper wire. Excess wire (for ease of assembly, for instance) is completely removed. Careful attention is paid to design, layout, and pathing of the crossover components such that wire lengths are short and the overall wire-mass is significantly reduced. Left and right crossover and nameplate impedances are ensured to be equivalent for ideal balance.

Better Connections
All connections within the circuit, from the solder lug attached to the terminal screw on the nameplate, to the crossover board, to the driver terminal block, and back are soldered connections. Besides the terminal screw, solder lug, and jam nut connection on the nameplate, there are no mechanical connections used

Better Inputs
All nameplate components are gold rather than nickel.

Appearance
The appearance of an MG___X is not intended to be visually really any di??erent from that of its non-X counterpart (aside from the gold nameplate components in situations where that wouldn’t already be gold). The crossover of some models may be visible, such as with the MG1.7x, and as such that will be noticeably di??erent in a side-by-side test, from the back of the speaker. The nameplate will also have a small red “X” after the model to denote that it is a part of the X Upgrade program.
