Product Description

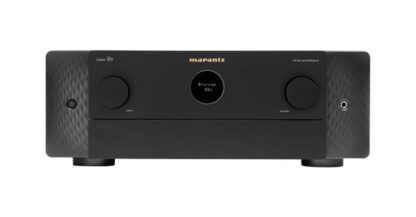

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, the Marantz CINEMA 50 is Series are the foundation of some of the finest the and most demanding home theaters. Excellence can be heard and seen.
The CINEMA 50 features architectural design that can be upfront or remain discreet in any luxurious environment. A modern expression of timeless design principles, the CINEMA 50 features the iconic Marantz porthole, symmetrical design, and front panel controls elegantly hidden from view.
The Marantz Sound Master meticulously tuned CINEMA 50 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home. Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
The CINEMA 50 abounds with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment. Premium 9.4 channel 110-watt-per-channel amplification, Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, 8K Ultra HD, and HEOS® Built-in streaming. CINEMA 50 is a powerful AV receiver for very high- performance home theaters.
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability truly allow you to make the Marantz CINEMA 50 your own.
Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
POWER AMPLIFIER
| Number of Powered Channels |
9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) |
110 W |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) |
– |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
150 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
220 W |
| 70% Guarantee |
Yes |
| Discrete Power Amplifier |
Yes |
| Amplifier Topology |
Class A/B |
| Current Feedback Topology |
Yes |
| Bi-Amp Drive |
assignable |
Inputs/Outputs
| Composite In / Out |
0/0 |
| Component In / Out |
0/0 |
| HDMI In / Out |
6 / 3 |
| Multi-Room Video Out via HDMI |
No / Yes |
| Analog In / Fixed Level Out |
6 in / 0 out |
| Phono (MM) In |
Yes |
| Digital In: Optical / Coaxial |
2 / 2 |
| Multi-Room Out: analog / digital |
1 /0 |
| Multichannel Preamp Out |
11.4 |
| Subwoofer Out |
4 (independent) |
| 7.1 multichannel input |
Yes |
| Number of Speaker Terminals |
11 |
| Speaker A / B |
assignable |
| Multi-Room Speaker Terminal |
assignable |
| Front Inputs |
USB-A |
| USB Audio |
Yes / No / No |
| FM Tuner with RDS |
No |
| DAB+ Tuner |
No |
General
| Available Colors |
Black/Silver-Gold |
| Metal Front Panel |
Yes |
| System Remote Control |
RC-049SR |
| Power Consumption in W |
680 |
| Power Consumption No-Sound (ECO on/off) in W |
60 W / 100 W |
| Standby Consumption in W |
0.2 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm |
442 x 404 x 165
(442 x 404 x 235)
【 442 x 392 x 165 】 |
| Weight in kg |
13.5 |
| What’s in the box |
Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
