Name: McIntosh MCT80
Brand: McIntosh
SKU: ab-mc-MCD600-1-1
Availability: InStock

$4,500.00

2-Channel SACD/CD Transport

If you have a trade-in, request Trade-in Price.

Only available for in-store purchase.

Category: McIntosh Tags: Made in the U.S.A., McIntosh, SACD, Source Component

Product Description

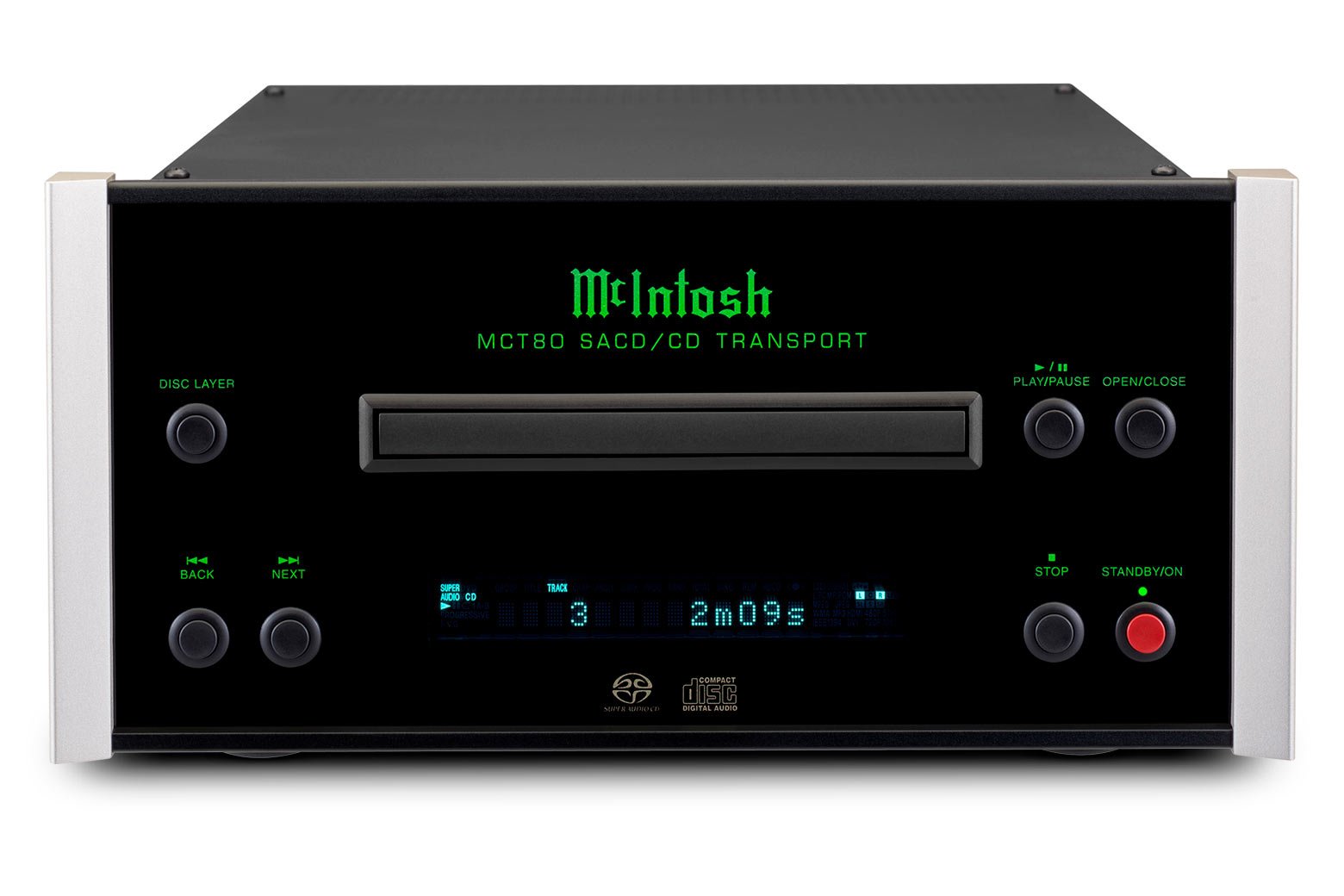

Enjoy your CDs all over again with the McIntosh MCT80 SACD/CD Transport. The MCT80 has been designed to perfectly match our smaller sized MXA80 Integrated Audio System, MHA150 Headphone Amplifier, MB50 Streaming Audio Player and MP100 Phono Preamplifier (each sold separately) to make a comprehensive yet compact audio system.

The MCT80 includes 3 digital-only outputs in the form of 1 coax and 1 optical connector along with 1 of our proprietary MCT connectors. The MCT output offers a secure DSD connection for playback of the high definition audio on SACDs up to DSD128 levels. To take advantage of the MCT80’s unique SACD capabilities, it must be used with select McIntosh models that have an MCT input – which includes the aforementioned MXA80 and MHA150, plus the D1100, C53, C2700, C49 and D150 Preamplifiers as well as the MA9500, MA8950, MA7200 and MA5300 Integrated Amplifiers. The coax and optical outputs support CD audio formats up to 24-bit/192kHz. For listening to CDs, the MCT80 can be used with any product that contains a digital coax or optical input and a Digital to Analog Converter (DAC).

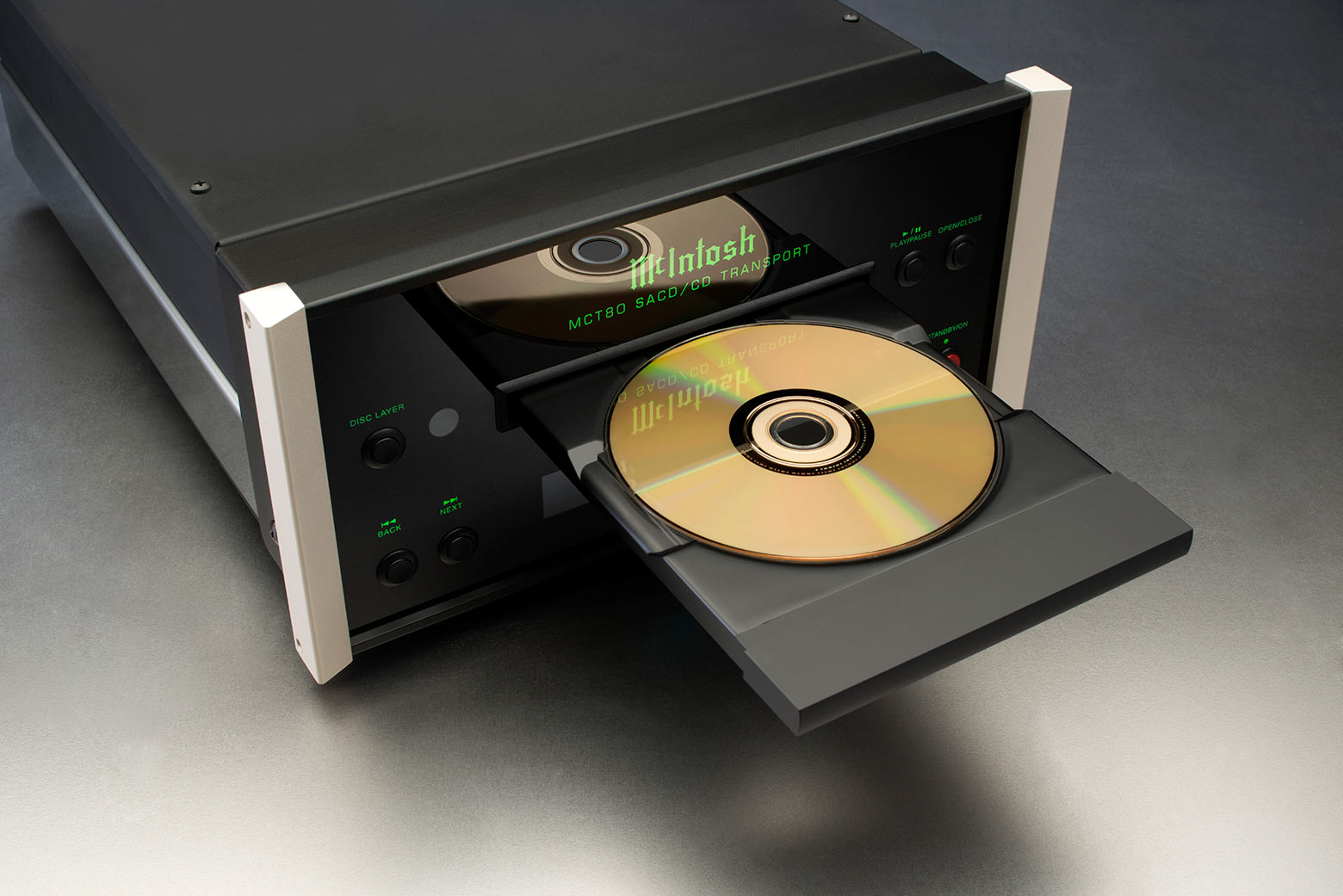

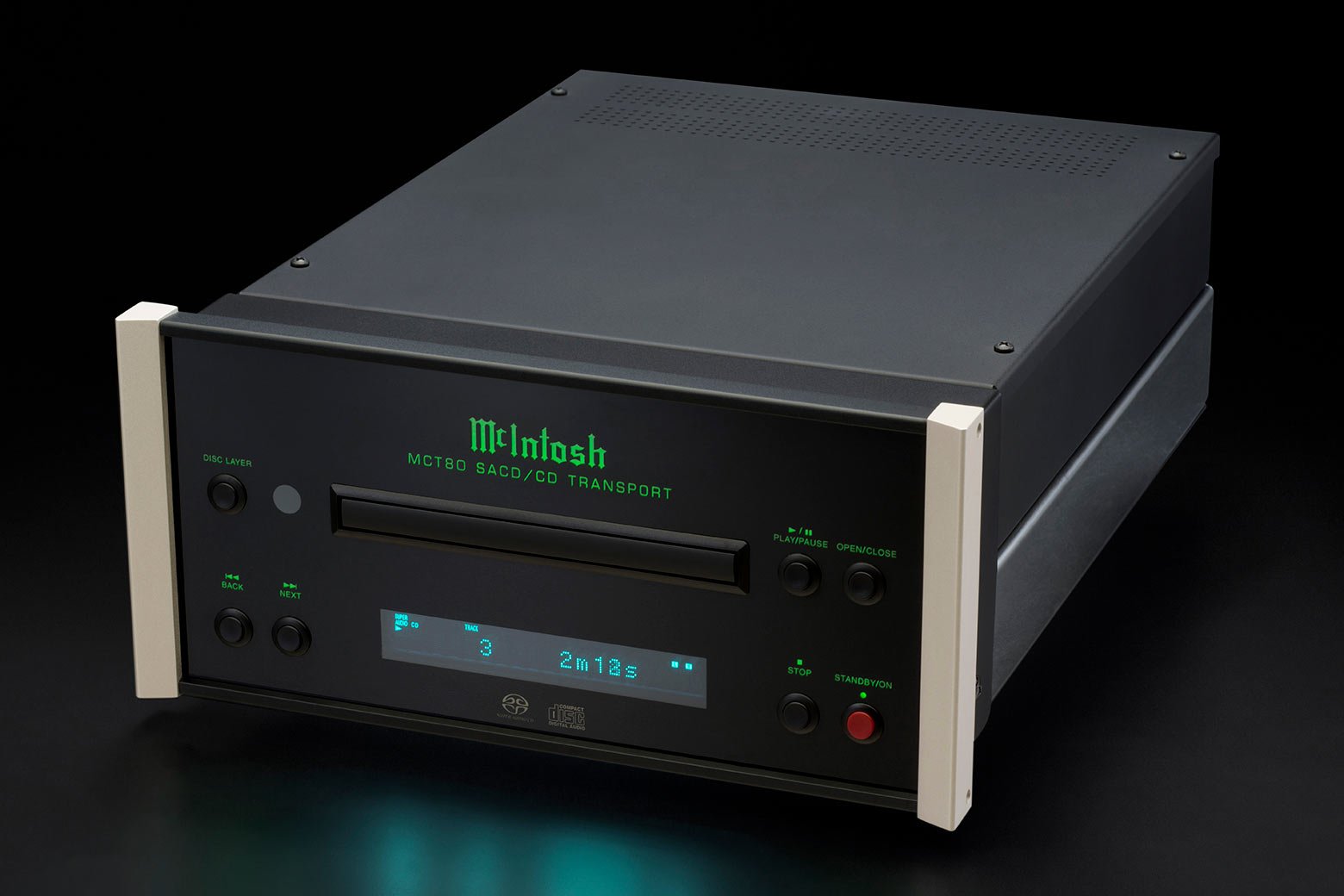

The MCT80 features an improved transport with a die-cast aluminum tray in conjunction with an advanced digital servo for faster, quieter and accurate operation. All common disc types can be played including SACD, CD, CD-R, CD-RW (MP3 and WMA) and user generated DVD or CD Data Discs with music file formats including DSD (up to DSD128), WAV (up to 24-bit/192kHz), FLAC, MP3 and others. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing. A twin laser optical pickup assures optimal disc reading. Power control and data ports integrate the MCT80’s operational state with other McIntosh system components. It’s wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo and aluminum end caps.

Number of Channels

2
Fixed Output Level

N/A
Variable Output Level

N/A
Output Impedance

N/A
Frequency Response

N/A
Signal To Noise Ratio

N/A
Dynamic Range

N/A
Total Harmonic Distortion

N/A
Channel Separation

N/A
Headphone Output Impedance

N/A

DIGITAL AUDIO SPECIFICATIONS

Digital-to-Analog Converter (DAC) Type

N/A
Coaxial Sample Rate

N/A
Optical Sample Rate

N/A
USB Sample Rate

N/A
Digital Coaxial Input

N/A
Digital Optical Input

N/A
Digital Output Sample Rate

Coaxial: Up to 24-bit/192kHz
Optical: Up to 24-bit/192kHz
MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)
Digital Optical Output

-15dbm to -21dbm
Digital Coaxial Output

0.5V p-p/75 ohms
Digital XLR Output

N/A
Digital MCT Output

3V @110 ohms
Digital USB Input Type

N/A
Digital Output Jitter

≤ 32ns with 1kHz test tone

CONNECTIVITY

Balanced Fixed Output

0
Unbalanced Fixed Output

0
Balanced Variable Output

0
Unbalanced Variable Output

0
Digital Coaxial Input

0
Digital MCT Input

0
Digital Optical Input

0
Digital USB Input

0
Digital USB Input Type

N/A
Digital Coaxial Output

1
Digital MCT Output

1
Digital Optical Output

1
Digital XLR Output

0
Headphone Output

0

CONTROL

Power Control Input

1
Power Control Output

1
Rear Panel Data Input

1
Rear Panel IR Sensor Input

1
RS232 Control Input

0

GENERAL SPECIFICATIONS

Disc Formats

SACD, Hybrid SACD, CD, CD-R/RW (MP3 and WMA), user generated DVD or CD Data Discs (with music file formats including DSD (up to DSD128), WAV (up to 24-bit/192kHz), FLAC, MP3 and others)
Disc Capacity

1
Laser Type

Twin Beam
Laser Beam Wavelength

650nm (SACD)
790nm (CD)
Laser Power

CLASS IIa/CLASS I
Standby Power Requirement

<0.5 watt

WEIGHTS & DIMENSIONS

Unit Dimensions (W x H x D)

11-1/2″ (29.2cm) x 5-7/8″ (14.9cm) x 19″ (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm)
Unit Weight

18.5 lbs (8.4 kg)
Shipping Weight

33 lbs (15 kg)
