$15,500.00

The magic of ultra HiFi sound brought to dynamic headphones.

If you have a trade-in, request Trade-in Price.

Product Description

Dynamically driven.

Designed for dynamic headphones, the MSB Technology Dynamic Headphone Amplifier is a fully balanced amplifier. Boasting 139dB of dynamic range, the amp works in tandem with the Reference and Select DAC, allowing the music to come to life in vibrant and unforgettable new ways.

CNC billet chassis.

Starting with a 65lb plate of raw aluminum, material is machined in our own in-house CNC shop. After more than four hours of machining, 60% of the aluminum is removed, resulting in a significantly lighter, more contoured product with the best anodized finishes on the market.

4-Pin XLR

Each amplifier in the MSB Technology Dynamic Headphone Amplifier is equipped with three 4-pin XLR outputs, designed for a shared listening experience.

Fully equipped.

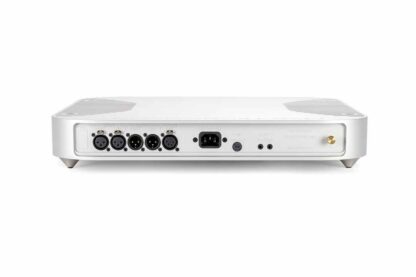

A rear-facing headphone jack allows for a cleaner system aesthetic—there aren’t any dangling cables interfering with a cleanly assembled system.  The noise floor is reduced with an isolated transformer and grounding scheme.  12 Volt triggers allow remote control over the system power.

Analog bypass.

If you’re sharing the headphones using the MSB Technology Dynamic Headphone Amplifier with a two-channel system, use our internal bypass we’ve installed directly into the amp. Simply turn off the unit for the signal to be sent to your other system.

The Dynamic Headphone Amplifier

The Reference Headphone Amp can ONLY be used with MSB DACs.
Supported Formats Analog Only
XLR Analog Inputs Optimized for 75Ω or 150Ω Balanced Source
XLR Analog Outputs Direct connection to input when enabled or unit powered off.
When listening to headphones, output is muted with 75Ω output impedance
Headphone Output Impedance 0.45Ω
Dynamic Range
20Hz-20kHz
(Max Power at 45Ω)
>139dB
>141dBA
Frequency Response 5Hz-20kHz ±0.016dB
Common Mode Rejection Ratio > 95dB CMRR @ 60Hz
> 95dB CMRR @ 1kHz
> 80dB CMRR @ 20kHz
Crosstalk <-130dB Crosstalk @ 1kHz <-110dB Crosstalk @ 20kHz
SMPTE IMD 0dBu 0.0019% @ 45Ω
% THD+N 1kHz 0dBu 0.00065% @ 45Ω
Max Power @ 1% THD+N 16Ω @ 4.25Vrms (1.12W)
32Ω @ 8.6Vrms (2.3W)
45Ω @ 15.5Vrms (5.3W)
150Ω @ 15.6Vrms (1.62W)
Noise Floor
(150Ω Input Impedance)
0.00168mVrms
20Hz-20kHz
Headphone Output Connectors 1x Rear 4 Pin XLR
2x Front 4 Pin XLR
Display Power LED
Controls IR Remote (Configurable)
Power Button (Configurable)
2x MSB 12V Trigger
Power Consumption 64 Watts
Less than 2W standby
Topology
Input/Gain Stage – Class-A
– Double balanced
– Impedance matched
– DC coupled
– Fully discrete
Output Stage – Class-A
– Balanced
– Current gain only
Chassis Dimensions
Width: 17.5 in (444 mm)
Depth: 17.5 in (444 mm)
Chassis Height (Without Feet): 2.2 in (56 mm)
Stack height: 2.85 in (92 mm)
Weight: 34 lbs (15.5 kg)
Product Feet: M6X1 Thread
Shipping Dimensions
Width: 23 in (585 mm)
Depth: 23 in (585 mm)
Height: 7 in (178 mm)
Weight: 42 lbs (19 kg)
Included Accessories

Product manual
Ground cable
IEC power cord
