Product Description

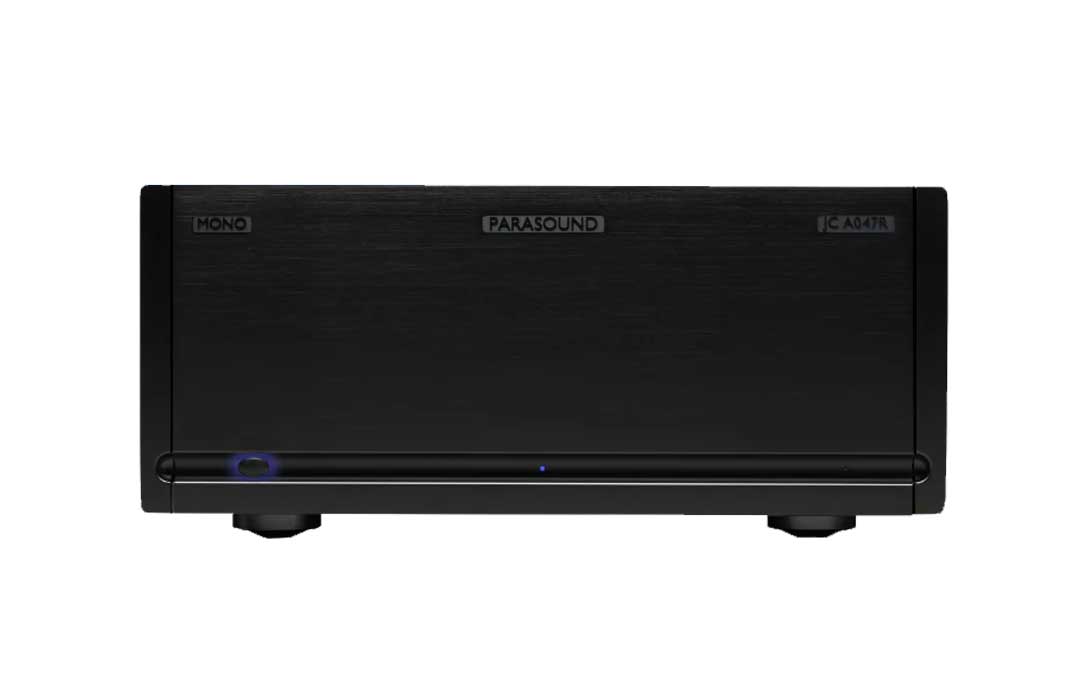

The Parasound JCA100 monoblock amplifier is a significant portion of the proceeds is allocated to the designer, in addition to scholarships for aspiring designers.
$30,000.00
SOLD AS PAIR.
Matched Pair John Curl Tribute Monoblock
If you have a trade-in, request Trade-in Price.
|
Power Output (Class A)* |
100 watts @ 8 Ω |
|
Power Output (Maximum)* |
100 watts @ 8 Ω |
|
200 watts @ 4 Ω |
|
|
Slew Rate |
> 130 volts per microsecond |
|
Frequency Response |
2 Hz – 120 kHz, +0/-2 dB |
|
20 Hz – 20 kHz, +0/-0.25 dB |
|
|
Total Harmonic Distortion (THD) |
< 0.15 % at full power |
|
< 0.02 % at typical listening levels |
|
|
IM Distortion |
< 0.03 % |
|
TIM |
Unmeasurable |
|
Input Impedance |
Unbalanced: 50 kΩ |
|
Balanced: 100 kΩ, (50 kΩ per leg) |
|
|
S/N Ratio, inputs shorted |
>120 dB, IHF A-weighted, bias set to Low |
|
>118 dB, IHF A-weighted, bias set to High |
|
|
>110 dB, Unweighted, bias set to Low |
|
|
>109 dB, Unweighted, bias set to High |
|
|
Total Gain |
29 dB (Gain switch set to normal), |
|
23 dB (Gain switch set to low) |
|
|
Input Sensitivity** |
Unbalanced: 1 V |
|
Balanced: 1 V per leg |
|
|
DC Trigger Requirements |
+9 Vdc to +12 Vdc, 5 mA |
|
Audio Trigger Requirement |
2.5 mV – 10 mV |
|
XLR Pin Identification |
1 = Ground |
|
2 = Positive |
|
|
3 = Negative |
|
|
Dimensions |
Width: 17.625″ (448 mm) |
|
Height: 7.75″ (197 mm), without feet: 7.125″ (181 mm) |
|
|
Depth: 20″ (508 mm), with cables: 21.5″ (546 mm) |
|
|
Weight |
Net: 83 lbs. (37.6 kg), Shipping: 100 lbs. (45.4 kg) |
|
Power Requirements |
Standby: <1 Watt |
|
Idle (bias set to low): 205 Watts |
|
|
Idle (bias set to high): 230 Watts |
|
|
Maximum: 250 Watts |
|
|
*Power measurements are with 120 VAC: 0.15% THD, RMS continuous power, full audio band (20 Hz – 20 kHz) |
|
|
**28.28 V Output into 8Ω, gain switch set to normal |
|
Brand
Parasound
Parasound’s mission couldn’t be more different. Simply put, they offer the most performance for the money by finding the sweetest spot between price and diminishing returns. Everything they do at Parasound is customer-centric because that’s how they define value. When they develop a new product they take the carpenter’s adage “measure twice, cut once” to the extreme. Each new model is tested, improved and re-tested under worst-case conditions.
It comes to market only when it is a finished product that’s ready to stand the test of time. In fact, they don’t really know how long their amplifiers last because people write to thank them because the Parasound amp they purchased in the mid-’80s still works perfectly 30 years later.
When you choose Parasound you’re getting uncompromised quality for every model. They all use the best parts and each must pass their strictest quality assurance. They wouldn’t have it any other way.
As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Parasound audio components, selling customers the best audio components from Parasound in Sales Tax Free Delaware. Interested in purchasing a new Parasound product? You can trade-in any component towards a Parasound component by filling out Overture's Trade-In Form.
