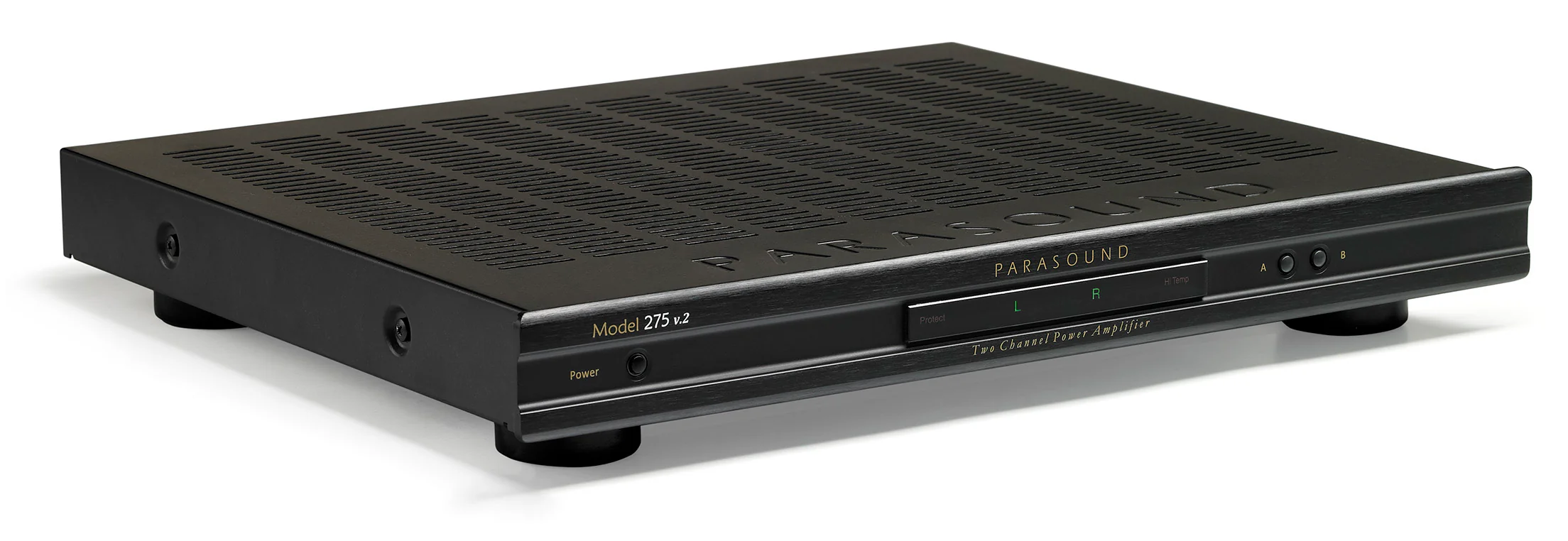

Parasound NC 275v2
Parasound NC 275v2
Parasound NC 275v2
Parasound NC 275v2
Parasound NC 275v2
Parasound NC 275v2

$849.00

Stereo Power Amplifier

Trade-in is not available on this product.



Category: Tags: ,

Product Description

The Parasound NC 275v2 Features
  • 90 watts x 2 into 8 Ω (all channels driven)
  • 150 watts x 2 into 4 Ω or 2 Ω (all channels driven)
  • 200 watts x 1 bridged into 8 Ω or 4 Ω
  • 20 amps peak current per channel
  • 2 Ohm stable operation with load selector switch
  • Two pairs of speaker outputs with front panel A/B buttons
  • Rear-mounted lockout switch disables front A/B buttons
  • High pass filter, switchable for 20Hz or 40Hz
  • Automatic on/off by DC trigger with looping output
  • Automatic on/off by audio signal with 2 sensitivity settings
  • Fully discrete circuitry with high current toroid transformer
  • Bridging switch for stereo or mono operation
  • Efficient, low heat design
  • DC Servo and relay protection circuits
  • Rear-mounted left and right gain controls
  • Standby, channel status and high temperature indicators
  • Gold-plated RCA input jacks
  • Heavy duty 24k gold-plated 5-way speaker terminals
  • 115/230v selector on rear panel
  • 1U rack mount kit available separately (Model RMK11)

Power Output – (RMS power, 20 Hz – 20 kHz)
All Channels Driven
90 watts x 2, 8Ω
150 watts x 2, 4Ω
150 watts x 2, 2Ω (Load switch set to 2-3Ω)

Bridged Mono
200 watts x 1, 8Ω
200 watts x 1, 4Ω (Load switch set to 2-3Ω)

Current Capacity
20 amps peak per channel

Frequency Response
20 Hz – 50 kHz, +0/-3 dB, 1 watt

Dynamic Headroom – 1.3 dB

Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels

IM Distortion – 0.05 %

Transient IM Distortion – Not measurable

S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance – 33 k Ω

Input Sensitivity
800 mV for full rated output (28dB)

Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz

Damping Factor – Over 150 at 20Hz

12V Trigger Turn On – DC 9 – 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 – 120 V / 220 -240 V, 50 – 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output

Dimensions
17-1/4″ Wide
16″ Deep, with cables connected
2-1/2″ High with feet, 1-3/4″ panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only)

Net Weight – 20 lbs (9.1 kg)

Rack Mount Accessory
May be Purchased Separately
RMK11

Brand

Parasound

Parasound’s mission couldn’t be more different. Simply put, they offer the most performance for the money by finding the sweetest spot between price and diminishing returns. Everything they do at Parasound is customer-centric because that’s how they define value. When they develop a new product they take the carpenter’s adage “measure twice, cut once” to the extreme. Each new model is tested, improved and re-tested under worst-case conditions.

It comes to market only when it is a finished product that’s ready to stand the test of time. In fact, they don’t really know how long their amplifiers last because people write to thank them because the Parasound amp they purchased in the mid-’80s still works perfectly 30 years later.

When you choose Parasound you’re getting uncompromised quality for every model. They all use the best parts and each must pass their strictest quality assurance. They wouldn’t have it any other way.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Parasound audio components, selling customers the best audio components from Parasound in Sales Tax Free Delaware. Interested in purchasing a new Parasound product? You can trade-in any component towards a Parasound component by filling out Overture's Trade-In Form.
