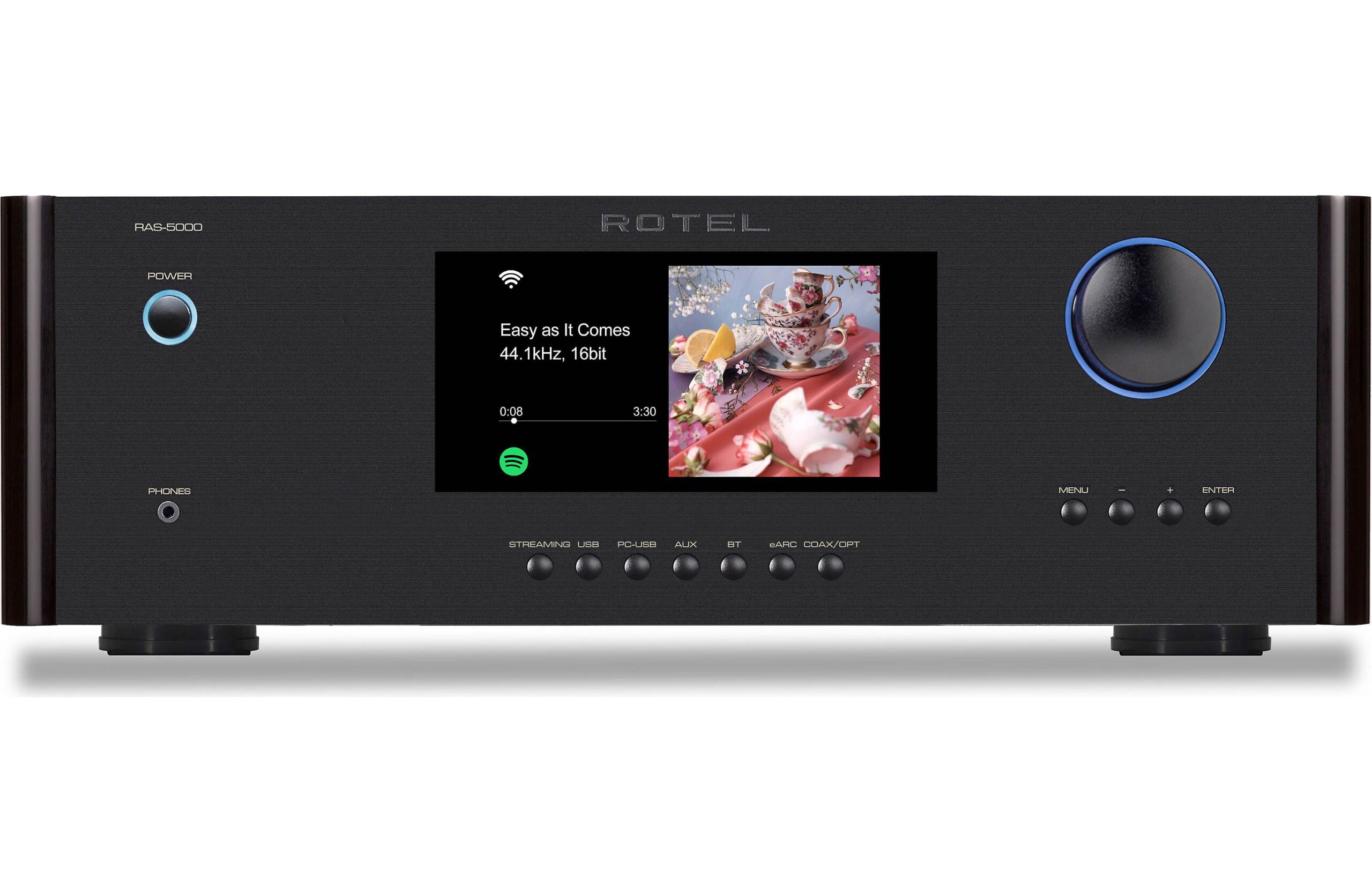

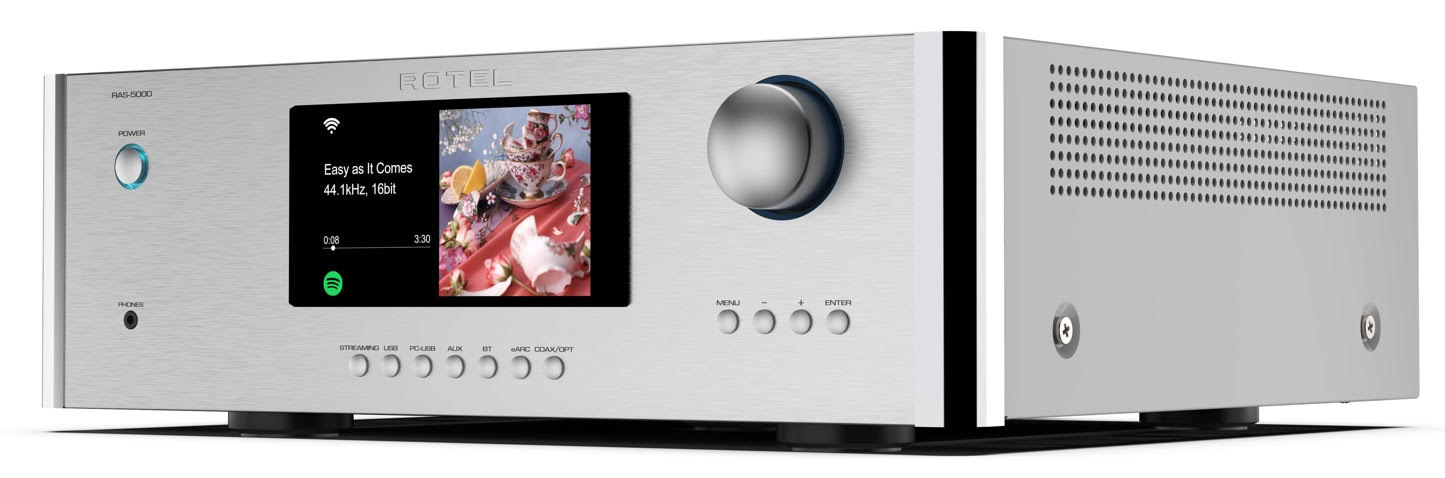

Rotel RAS-5000

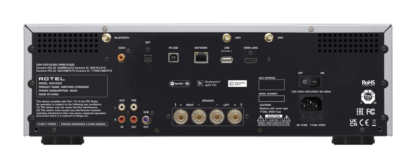

Rotel RAS-5000 Back
Rotel RAS-5000
Rotel RAS-5000
Rotel RAS-5000 Back
Rotel RAS-5000

$2,999.00

Integrated Amplifier

If you have a trade-in, request Trade-in Price.



Only available for in-store purchase.

Category: Tags: ,

Product Description

Simplicity and performance meet in the Rotel RAS-5000, a component designed to fit into your lifestyle and elevate your entertainment experience.

The RAS-5000 seamlessly integrates HDMI ARC (Audio Return Channel) for playback of video sound, and effortlessly streams from online sources to play your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptXTM HD Bluetooth. The RAS-5000 is the perfect fusion of advanced audio technology coupled with modern convenience.

In addition to streaming and HDMI ARC you’ll also enjoy a wide array of traditional source inputs including Coaxial, Optical and RCA Analog inputs. The PC-USB input supports PCM and native MQA and MQA Studio decoding. Digital music files up to 32-bit, 384kHz resolution are rendered with ultimate precision thanks to the premium ESS Digital to Analog converter, while the streamlined

AMPLIFIED STREAMER RAS-5000

ARC connection between your TV and RAS-5000 ensures dynamic, high resolution sound from your favorite live sports, TV shows, movies, and games.
Like all Rotel amplifiers, the RAS-5000 is constructed around a massive linear power supply featuring a custom toroidal transformer, which allows the RAS-5000 to deliver a staggering 220 watts of Class AB power into 4

ohms. The overengineered power supply delivers ultra- low-noise power to all critical components and robust current to the amplifier output transistors to deliver deep, controlled bass energy with exceptional fidelity. The sleek RAS-5000 is available in both stylish black and sophisticated silver colors to blend seamlessly to any décor, while its user-friendly interface ensures effortless
operation. Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.

Power Output 220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)

Total Harmonic Distortion < 0.03%
Intermodulation Distortion < 0.03%
(60 Hz : 7k Hz, 4:1)
Frequency Response
Line Level Inputs 10 Hz – 100k Hz, ± 0.5 dB,
Damping Factor 290
(20 – 20k Hz, 8 Ohms)
Input Sensitivity / Impedance
Line Level Inputs 0.78 V / 46k Ohms
Input Overload
Line Level Inputs 4.1 V
Tone Controls – Bass / Treble ± 10 dB at 100 Hz / 10k Hz
Signal to Noise Ratio (IHF “A” weighted)
Line Level Inputs 103 dB
Digital Section
Frequency Response 10 Hz – 70k Hz, (±3 dB, MAX)
Signal to Noise Ratio 105 dB
(IHF “A” weighted)

All specifications are accurate at the time of printing.
Rotel reserves the right to make improvements without notice.

Input Sensitivity / Impedance -8 dBFS / 75 Ohms
Digital Inputs SPDIF LPCM
(up to 24-bit / 192k Hz )
PC-USB USB Audio Class 2.0
(up to 24-bit / 384k Hz )*
*Driver installation required
Support MQA and MQA Studio

Roon Ready
HDMI Support eARC function
Power Requirements
USA 120 V, 60 Hz
Europe 230 V, 50 Hz
Power Consumption 380 Watts
Standby Power Consumption < 0.5 Watts
BTU (4 Ohms, 1/8 power) 1027 BTU/h
Dimensions (WxHxD) 431 x 144 x 425 mm
17” x 5 7/8” x 16”
Front Panel Height 3U / 132.6 mm / 5 1/4”
Weight (net) 15.7 kg, 34.6 lbs.
Finish Black and Silver

Brand

Rotel

Started by Tomoki Tachiawaka in 1961, Rotel has spent the past 50 years redefining the hi-fi experience. The family-owned business is trusted by audiophiles, musicians and recording engineers alike for their high-quality products. In particular, they developed the Balanced Design Concept by mastering a combination of physics, electronics and mechanical engineering. These concepts combine digital and analog circuits for a new standard in high-end fidelity.

All products are built, tested and evaluated before production begins, with engineers listening intently to ensure Rotel delivers its signature sound each time. As a result, not only is Rotel recognized worldwide for its high-end audio applications, but it has developed strong product lines for home theaters and whole-house audio.

Listen to your favorite recordings and movies like never before with Rotel's line of amplifiers, tuners, CD players, DACs, multi-zone processors, and distribution amplifiers. All provide exceptional performance and value while showcasing innovation to meet new listening demands and preferences. Rotel is also known for working only with the best components, from European capacitors to toroidal power transformers from the United States.

One of their most popular models is the Michi X5. This Integrated Amplifier boasts 600 Watts of power into 4-ohm speakers. All while offering diverse listening options by including inputs for Analog, Bluetooth, XLR, and phono stage sources.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Rotel components, selling customers the best components from Rotel in Sales Tax Free Delaware. Interested in purchasing a Rotel Component? You can trade-in any brand component towards a Rotel component by filling out Overture's Trade-In Form.
