Product Description

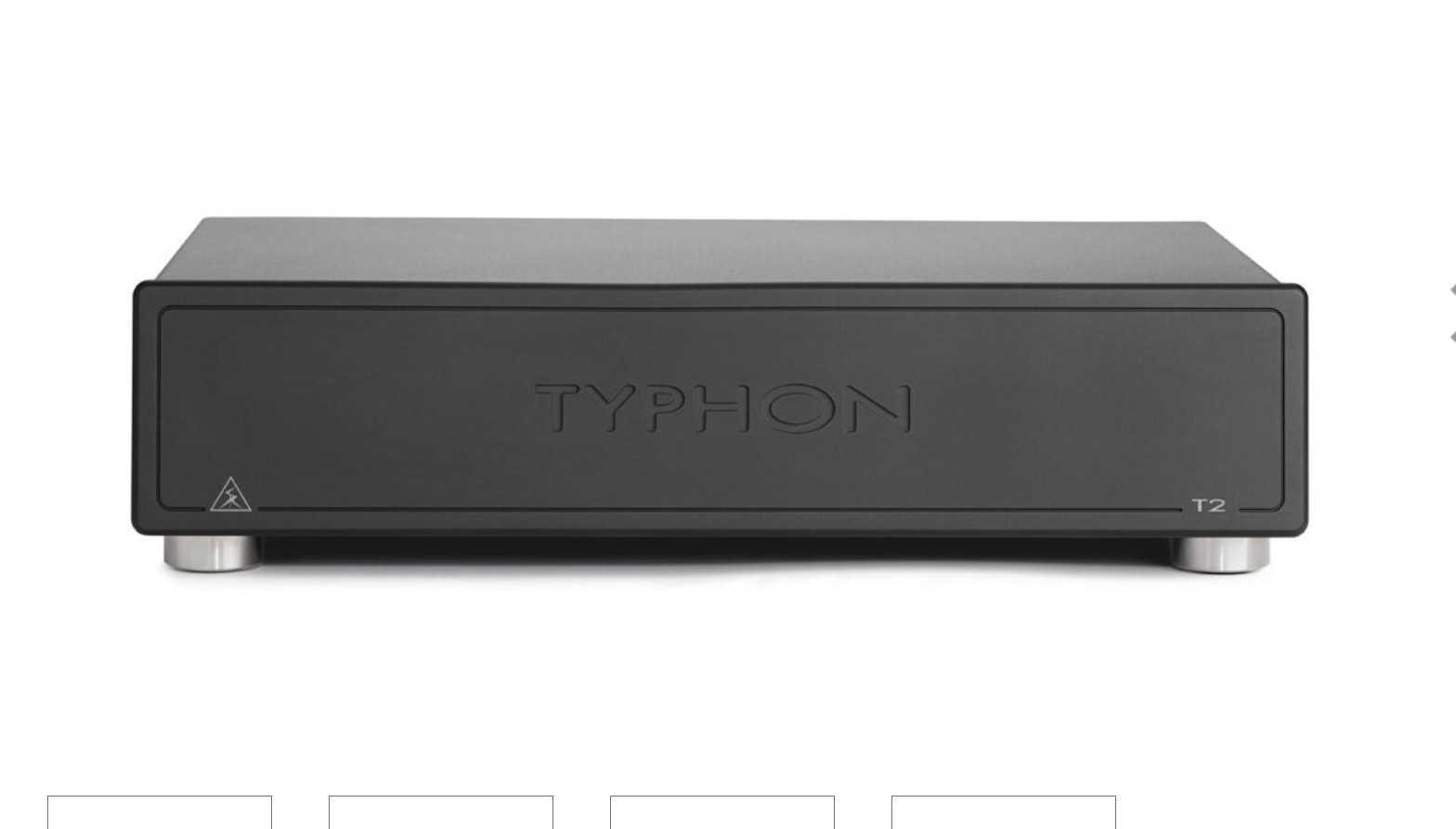

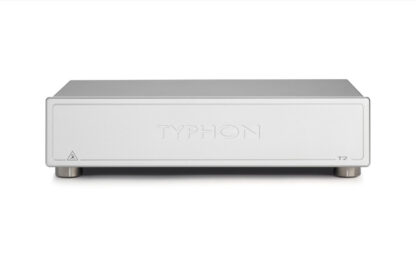

Two Outlet High-Current Tour De Force The two-outlet Shunyata Typhon T2 power conditioner represents a years-long evolution in science that makes it a one-of-a-kind product with three dynamic and unique functions. When the Typhon T2 is connected as a stand-alone two-outlet reference power distributor it will super-charge the performance of even the world’s most demanding amplifiers. The Typhon T2 also comes equipped to receive an optional Performance or Reference level umbilical, allowing it to be connected in-line to any Shunyata power-distributor as a performance force-multiplier of the first order. Lastly, simple, reference-level two or three-component systems won’t find a better solution for performance than the Typhon T2. Typhon T2 is guaranteed to elevate the performance of amplifiers or entire systems beyond any and all expectation. Design Evolution

Typhon T2 represents a dramatic five-year refinement of the original, critically, and commercially acclaimed Typhon and Typhon QR models. At almost half the size and price of the Typhon QR, the Typhon T2 includes two high-current outlets that allow for in-line connection to even the most current-hungry amplifiers. The patented QRBB and NIC technologies within the T2 have been radically improved to deliver an unprecedented performance upgrade when connected in series with a Shunyata Research Denali 6000S/v2 model or virtually any other Shunyata Research power distributor.

Applications

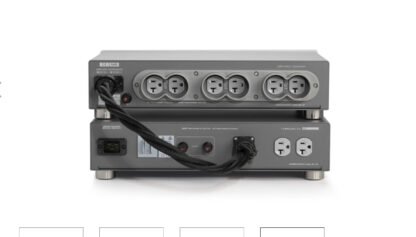

The Typhon T2 model can be used as a stand-alone reference power distributor for any type of amplifier no matter how demanding, or other remote reference-grade source electronics. The Typhon T2 is housed in the same chassis footprint as the Denali 6000S/v2, making it easy to stack and connect from the wall, then via its umbilical to the power distributor. The T2 can also be used with the original Denali 6000s/v1 or any Shunyata Research power distributor below the Everest 8000. No matter the application or combination, the Typhon T2 will deliver a jaw-dropping component-level performance upgrade to any system, no matter how small or large the system may be. Below are common recommended applications of the Typhon T2 Performance

The revelatory improvements that are readily apparent when adding a Typhon T2 to any system include an immediate and dramatic increase in dynamic expression; as if you added wattage to amplifiers or headroom and scale to your system’s dynamic capability. The T2 delivers on the promise of enhanced timing, improved imaging, and a revelatory increase in the three-dimensional presence of instruments and voice in space. These are not subtle enhancements but are instead easy to hear, immediate gains similar to making a massive component upgrade. Perhaps the most notable improvement is that along with all these improvements comes an unforced, organic ease and noise-less background which permeates the space in and around your favorite recordings.

Umbilical Upgrades

Shunyata Research has optimized every part and technology that goes into the Shunyata Typhon T2 power conditioner with a single-minded approach to optimal performance. An obvious case in point are the two models of umbilical cables ideally suited for high-current transfer. The umbilical connection on the Typhon T2 is a one-of-a-kind, custom manufactured military grade twist-lock. This was chosen for its superior connection integrity, insuring maximum current transfer and the ultimate in performance. There are two distinct models of umbilical cable options. The Performance model umbilical, featuring 8 gauge VTX conductors, allows the Typhon T2 to dramatically impact every area of performance. All of Shunyata Research’s early testing was completed using this Performance umbilical. For more extreme applications, such as ultra high-current amps or for massive systems, the 8 gauge VTX-Ag Reference model will match up well with systems using Shunyata Research’s top Sigma or Omega model power cords. Either power umbilical when connected and used with the Typhon T2 will unleash a system’s full potential.


TECHNOLOGY

DTCD logo

DYNAMIC TRANSIENT CURRENT DELIVERY

DTCD™ Analysis is a technique that measures instantaneous current through low impedance electrical conductors and contacts.  Shunyata Research uses it to optimize the design, specification and construction of parts and materials to ensure maximum current delivery performance.  Each part, conductor, noise circuit and material allows for maximum throughput of instantaneous current. Listeners will experience earth-shaking low-frequency performance from even the highest-current amplifiers as well as dynamic contrasts unheard of outside of a live event.  More than any other design parameter, Shunyata Research’s skill in eliminating resistance and maximizing peak-current delivery is unmatched.

Maximum Voltage:
90 – 125 VAC r.m.s. unregulated (US)
220-240VAC r.m.s. unregulated (EU, UK, AS)

Input Current Ratings:
US/AS maximum continuous current: 20A
US/AS maximum continuous current: 30A (optional)
EU/AU maximum continuous current: 16A

Output Current Ratings:
US/AS max current/outlet: 15A
EU max current/socket: 16A

Transient Suppression:
Maximum transient pulse 40,000 Amps @ 8/50 μs

Over-Current Protection:
Hydraulic electromagnetic breaker

Wiring System:
8 gauge ArNi® VTX-Ag™ buss system
10 gauge ArNi® VTX-Ag™ wiring
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction

Connectors & Sockets:
Inlet: IEC C19R
Inlet: Proprietary 30A Amphenol (30A Model only)
Twist-lock outlet: Proprietary Amphenol
US outlets: 2 NEMA 5-20R
AS outlets: 2 NEMA 5-20R
EU sockets: 2 CEE7/3

Isolation Zones:
3 zones

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-38 Footer

Construction:
All aluminum chassis
Anodized, brushed aluminum faceplate

Dimensions:
Width: 17 inches (43.2 cm)
Depth: 10 inches (25.4 cm)
Height: 4.4 inches (11.2 cm)
Weight: 17.5 lbs (7.95 kg)

Brand

Shunyata Research

Great audio is all about creating a distortion-free signal path. Shunyata Research brings innovative design and cutting-edge technologies to some of the most overlooked parts of your home audio setup. The Washington-based company focuses on creating power conditioning systems and cables to boost the performance of high-end audio and home theater electronics. Founded in 1997 by Caelin Gabriel, a former military scientist, it owns multiple patents for home audio and recording, mastering, film, and even surgical systems.

Their product line includes award-winning processors, power conditioners, power cables, audio cables, and digital cables manufactured and tested at their 18,000-square-foot facility in Seattle. These unsung heroes raise the bar in AC conditioning for cleaner sound straight from the source. Beyond its patented designs, Shunyata Research is known for its service and support throughout the lifetime of its products.

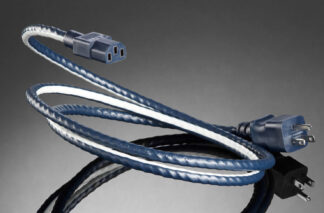

It's no wonder they're an audiophile favorite worldwide. Particularly useful to our hi-fi applications are their Venom X Series cables. Venom-X cables offer customization and conductor treatments unprecedented at their price points. Their PMZ and VTX conductors reduce impedance and create a more balanced tone when relaying audio signals. They’re versatile and can be used in analog, solid-state, tube and digital setups.
