Product Description

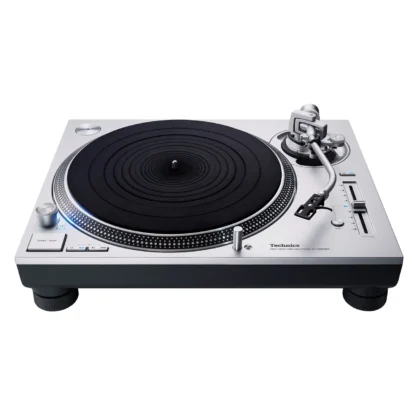

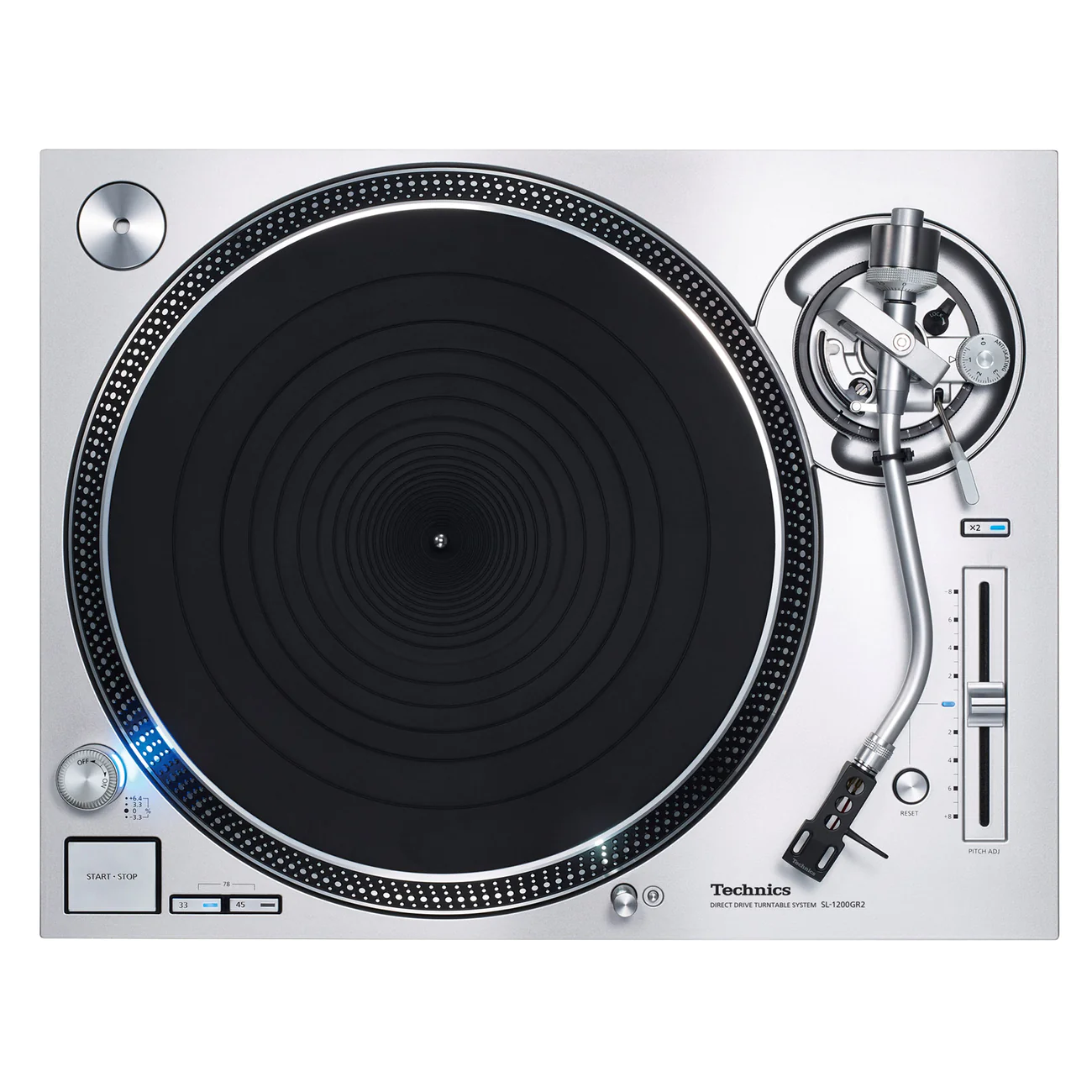

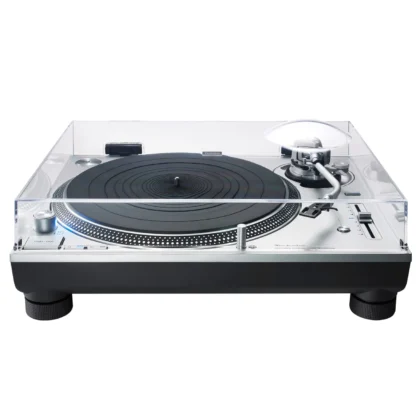

The first stage of Technics’ new generation of direct drive turntables with an improved motor-drive circuit centered on the newly developed ΔΣ-Drive (Delta Sigma Drive), the Technics SL-1200GR2 turntable is the new standard turntables, inviting more audio enthusiasts to enjoy music with the rich, robust sound of analogue records.
Fusing Technics’ traditional analog and digital technologies, the Technics’ SL-1200GR2 Turntable is the new standard in direct drive turntable systems. With a revolutionary new drive control method for smooth, accurate rotational stability and a new power supply for an exceptionally low noise floor the new generation turntable outperforms the usual standards of its class, for rich, robust sounds and true high-fidelity listening.
- Coreless direct drive motor achieving stable rotation
- Low-noise, low-voltage power circuit and a switching power supply
- ΔΣ-Drive suppresses vibrations from the motor for smoother, more accurate rotation
- Tonearm achieving high initial-motion sensitivity
- Two-layer platter with high rigidity and vibration damping
- High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibrations
Power Supply
AC220-240 V, 50/60 Hz
Power Consumption
11 W, Approx. 0.3 W (Standby)
Dimensions (W x H x D)
453 x 173 x 372 mm (17-27/32 × 6-13/16 × 14-21/32 inch)
Weight
Approx. 11.5 kg (Approx. 25.35lbs)
Accessories
Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Cartridge spacer Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner’s Manual
Operating Humidity Range
35% to 80% RH (no condensation)
Audio Output
PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
Effective Length
230 mm (9-1/16″)
Tracking Error Angle
Within 2° 32′ (at the outer groove of 30 cm record), Within 0° 32′ (at the inner groove of 30 cm record)
Arm-height Adjustment Range
0 – 6 mm
Stylus Pressure Adjustment Range
0 – 4 g (Direct Reading)
Head Shell Weight
Approx. 7.6 g
Applicable Cartridge Weight Range
(without auxiliary weight) 5.6 – 12.0 g 14.3 – 20.7 g (including head shell) (with auxiliary weight) 10.0 – 16.4 g 18.7 – 25.1 g (including head shell)
Cartridge Mounting Dimension
JIS 12.7 mm (1/2″) interval
Head Shell Terminal Lug
1.2 mmφ 4-pin terminal lug
Type
Direct Drive Turntable
Turntable Speeds
33-1/3, 45 and 78 r/min
Starting Torque
2.2 kg-cm
Build-up Characteristics
0.7 s. from Standstill to 33-1/3 r/min
Wow And Flutter
0.025 % W.R.M.S.
Braking System
Electronic brake
Turntable Platter
Aluminium diecast, Diameter : 332 mm, Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)
