$37,500.00

REFERENCE IMMERSIVE AUDIO PROCESSOR

If you have a trade-in, request Trade-in Price.



Product Description

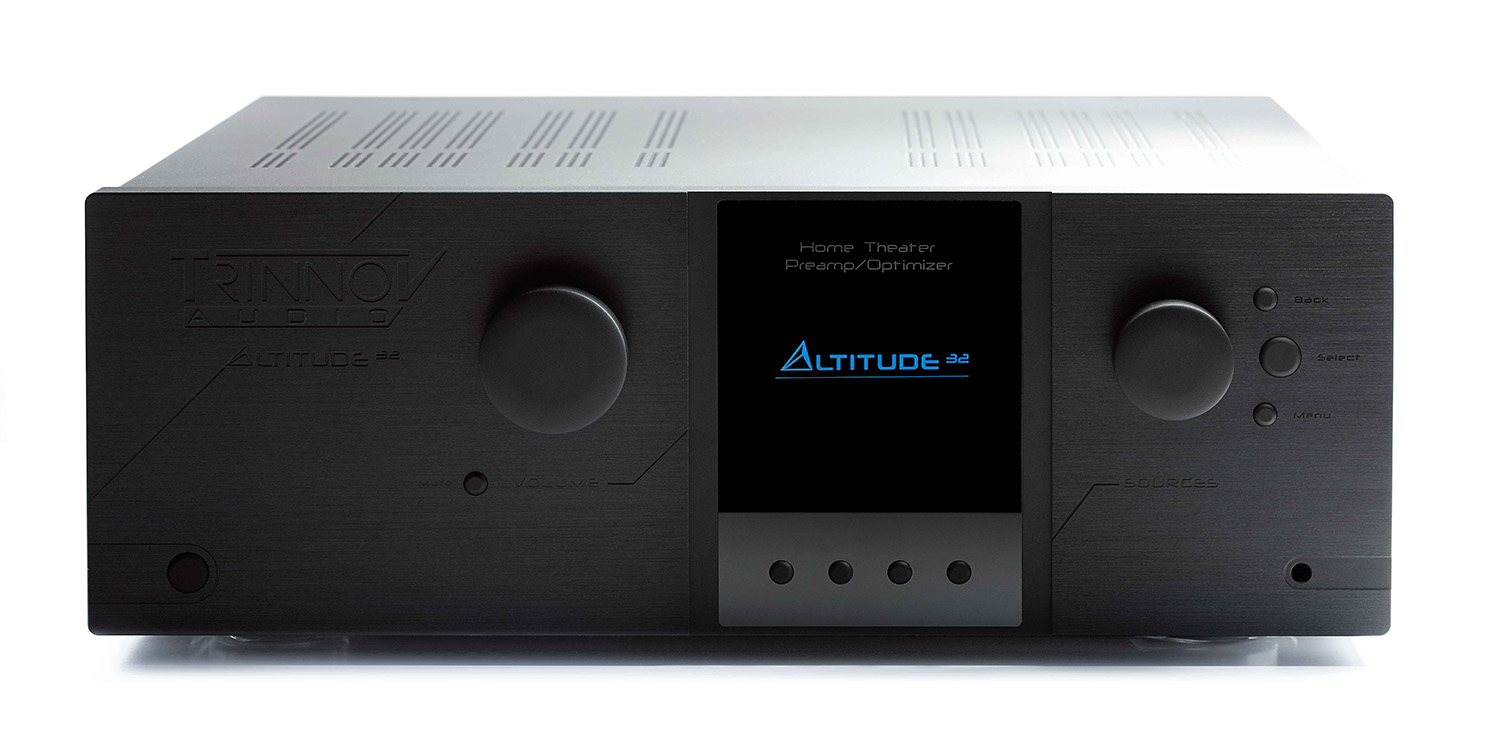

Peerless in performance, configurability and sound quality, the Trinnov Altitude32-1624 Processor remains the unchallenged reference processor for Immersive home theater systems. Nothing has been left to chance: high-channel count, huge processing power and exclusive patented technologies unleash the full potential of immersive sound, enabling all formats and the widest range of speaker layouts.

UPGRADABLE BY DESIGN


The hardware architecture of the Altitude32, unique among home theater processors, challenges the concept of obsolescence by enabling the integration of new technologies, new features, and product upgrades through a pure software implementation provided at no cost to Altitude owners. This is a truly sustainable product that gets better over time with the introduction of new features and a scalable, modular hardware design that enables easy system expansion up to the full channel counts of home Atmos and DTS:X and to a maximum of 64 outputs.

Its revolutionary hardware architecture runs not on the multiple sets of DSPs found on other processors but instead on a single multi-core Intel hardware platform and TrinnovOS operating system. This enables Trinnov to bring new technologies and features to market months and years ahead of competition.

OBJECT BASED DECODING


  • Dolby Atmos® Native Decoding & Upmix:Up to 20 discrete channels
  • Auro-3D® Native Decoding & Up-mix (Auromatic):Up to 13.1
  • DTS:X® Pro:Up to 20 discrete channels
  • Speaker Layouts support:All
  • IMAX Enhanced:Yes

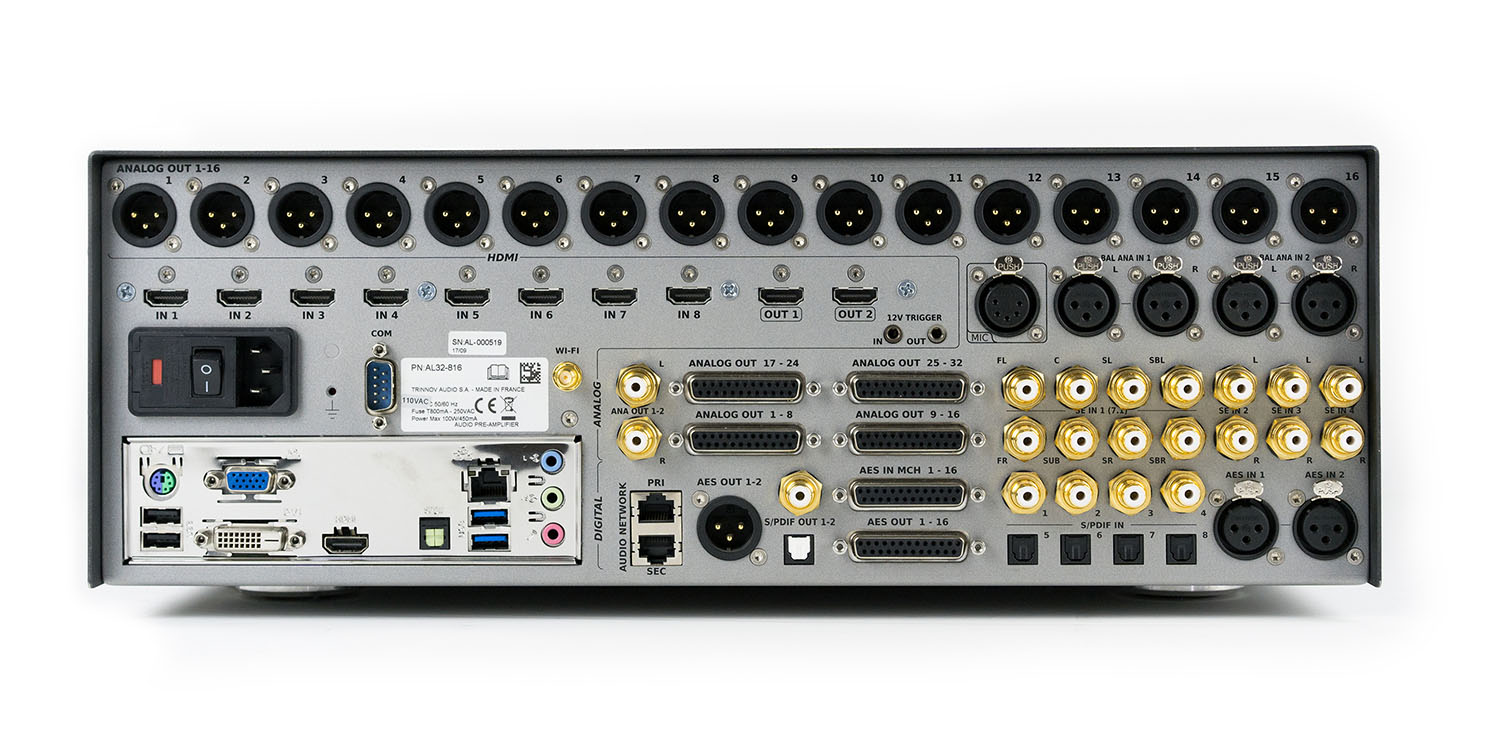

HDMI CONNECTIVITY


  • Output 1:HDMI 2.0 / HDCP 2.2
  • Output 2:HDMI 2.0 / HDCP 2.2
  • Inputs:8
  • Maximum Resolution:4K UHD on all ins / outs
  • Maximum Bandwidth:18Gbps on all inputs
  • Frame rates supported:24/25/30/50/60 fps (UHD) 120 fps (HD)
  • ARC / eARC:Available on Output 1
  • 4K to 1080 Downscaling:Available on Output 1
  • OSD:Volume information displayed on-screen

DIGITAL AUDIO CONNECTIVITY


  • S/PDIF Inputs:x4 (2 optical, 2 coaxial)
  • S/PDIF Outputs:x2 (1 optical, 1 coaxial)
  • +4 Outputs:By combining Analog and S/PDIF outputs
  • Audio Network:Dual ports (for future use)

ANALOGUE AUDIO CONNECTIVITY


  • Microphone input:1x 5 Pin XLR for 3D Microphone
  • Balanced inputs:1x Stereo XLR
  • Unbalanced inputs:1x Stereo RCA
  • Balanced outputs:16x XLR
  • Input Impedance:20k Ohms / 10k Ohms

AUDIO PROCESSING


  • Data precision:64 bits, floating point
  • Max Sampling Rate:Native, up to 96kHz

HARDWARE


  • Processor:Intel multi core hyper threaded
  • ADC Resolution / Sampling Rate:24 bits/96 kHz
  • DAC Resolution / Sampling Rate:24 bits/192 kHz
  • A/D Signal-To-Noise Ratio:119 dB (A-Weighted)
  • D/A Signal-To-Noise Ratio:118 dB (A-Weighted)
  • Reference Level:+18dBu @ 0dBFS (Balanced)
  • Clock / Jitter:attenuation > 50 dB above 100Hz
  • Cooling system:Custom heat sinks + additional silent fans
  • Safety Components:AntiPop relays on each output

POWER SUPPLY


  • Power requirement:100 – 240v (auto selecting)
  • Power consumption:76W Max
  • Thermal conversion:260 BTU/h Max
  • Mains fuse:2x 1A slow blow
  • Internal PSUs:Separated supplies for Audio and Processing

WEIGHT & DIMENSIONS


  • Dimensions (W x H x D) mm:438 x 139 x 430
  • Dimensions (W x H x D) inches:17 1/4″ x 5 1/2″ x 17 15/16″
  • Shipping dimensions (L x H x P) cm:74 x 59 x 30
  • Weight:11.30kg / 24.9 lbs
  • Shipping weight / volume:18.2kg / 0.131 M3
  • Rackmounting:3U – Rack Ears Included

WARRANTY


  • Standard Warranty:5 year
  • Transferable:Yes
