From $14,999.00

Integrated amplifier with 300B vacuum tubes and built-in phono stage

If you have a trade-in, request Trade-in Price.

Product Description

Trouble-free, noise-free, and double the power of traditional 300B amps. Made possible by patented circuit design. We’re proud to continue a legacy of quality, American manufacturing with innovative new features. The 91E ships with new production 300Bs, the most popular electron tubes in the world. Made in the USA.

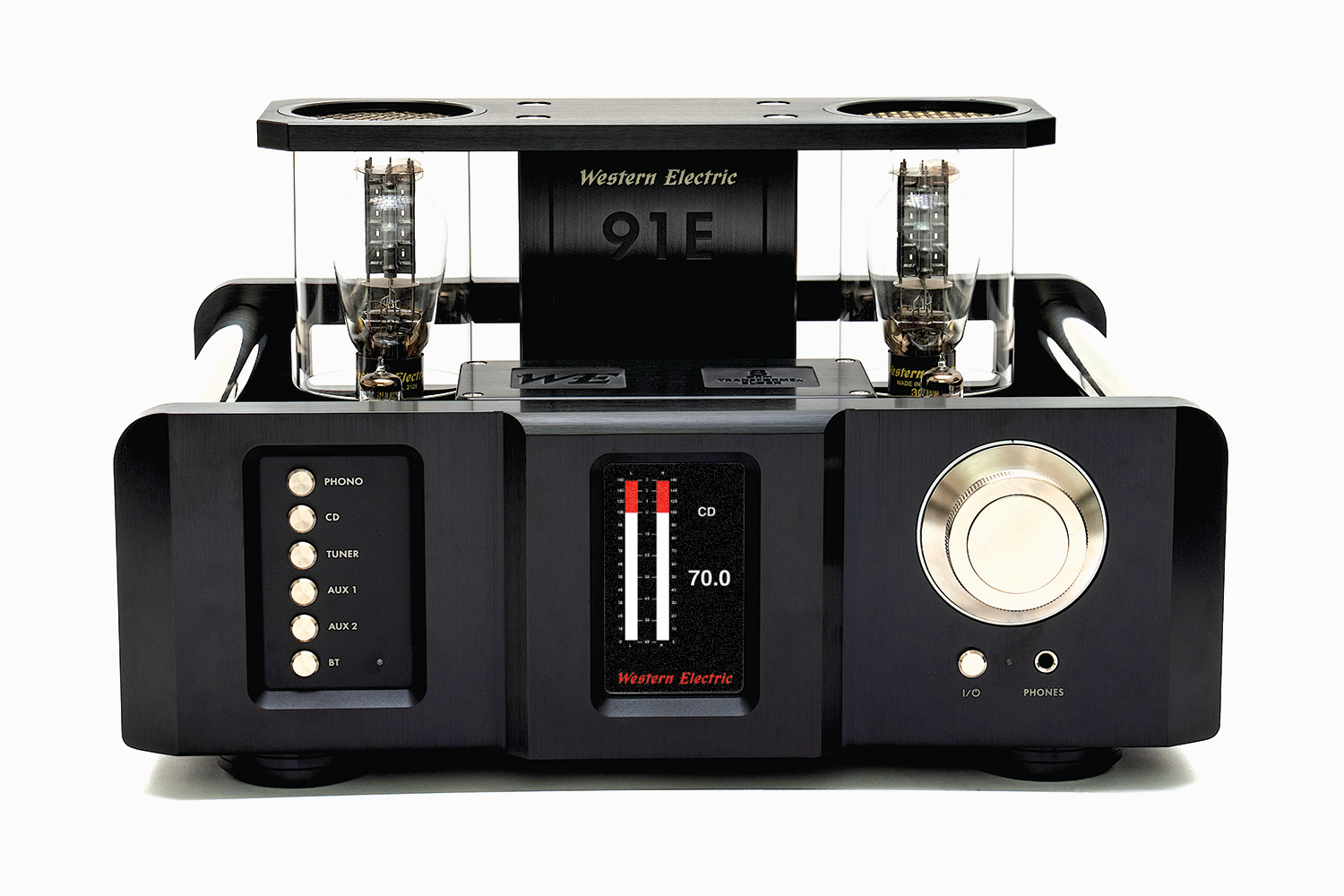

  • The Western Electric Type 91E is a Class A, single-ended (SE), integrated amplifier for high-fidelity audio reproduction.

Western Electric 91E Integrated Amplifier remote control

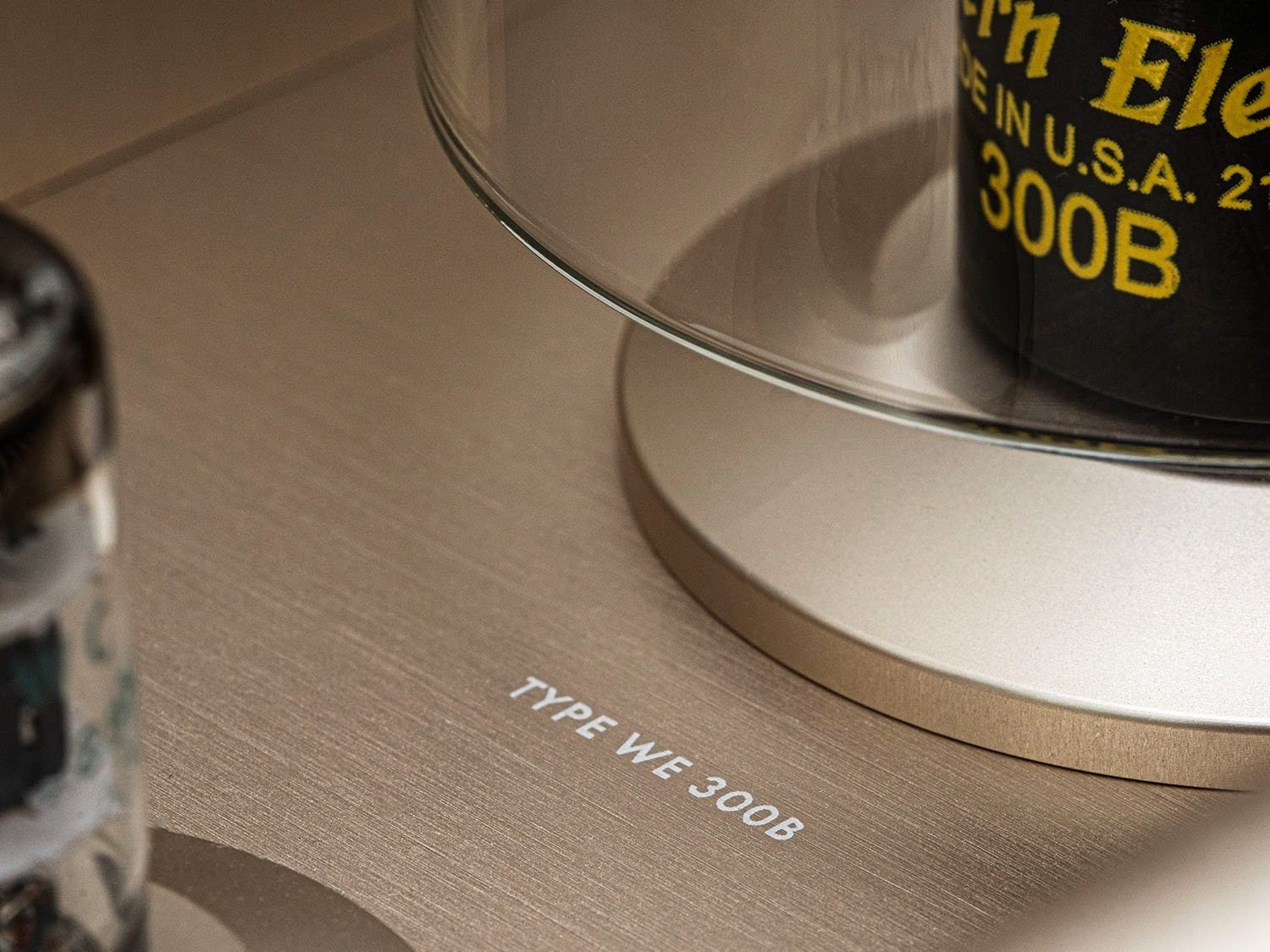

  • The 91E was made for the Western Electric 300B to provide end users the highest possible performance and quality.

  • Available in three (3) colors

Western Electric 91E Integrated Amplifier Colors

Nickel, Champagne, Black


  • In the box

    • 91E Integrated Amplifier

    • Remote control

    • Pin-Straightener (9-pin)

    • 2x 300B Electron Tubes (Power)

    • 2x ECC81 Electron Tubes (Pre-amplifier, pre-installed)

    • 8 Ω Output Transformer Block (pre-installed)

    • Power Cord

    • Spanner tool (for removal and/or replacement of 300B’s)

    • BT antenna

    • End User Guide

  • Steered Current Source Technology (SCS)
    Experience double the traditional output power with advanced, single-ended (SE) circuit design. This new level of performance is reached by using a fully linear, steered current source (US Patent 10256776) controlled exclusively by the tube’s output voltage. The excess of common large output transformers and associated hysteresis is eliminated, and as a result, lush detail in the midrange and masterfully articulated upper and lower frequencies are revealed.

  • Stepped Logarithmic Attenuator
    A stepped logarithmic attenuator is used to mimic the response of human hearing. The attenuator consists of only discrete resistors in a ladder configuration that are switched in and out of circuit to produce a logarithmic attenuation of the output signal.

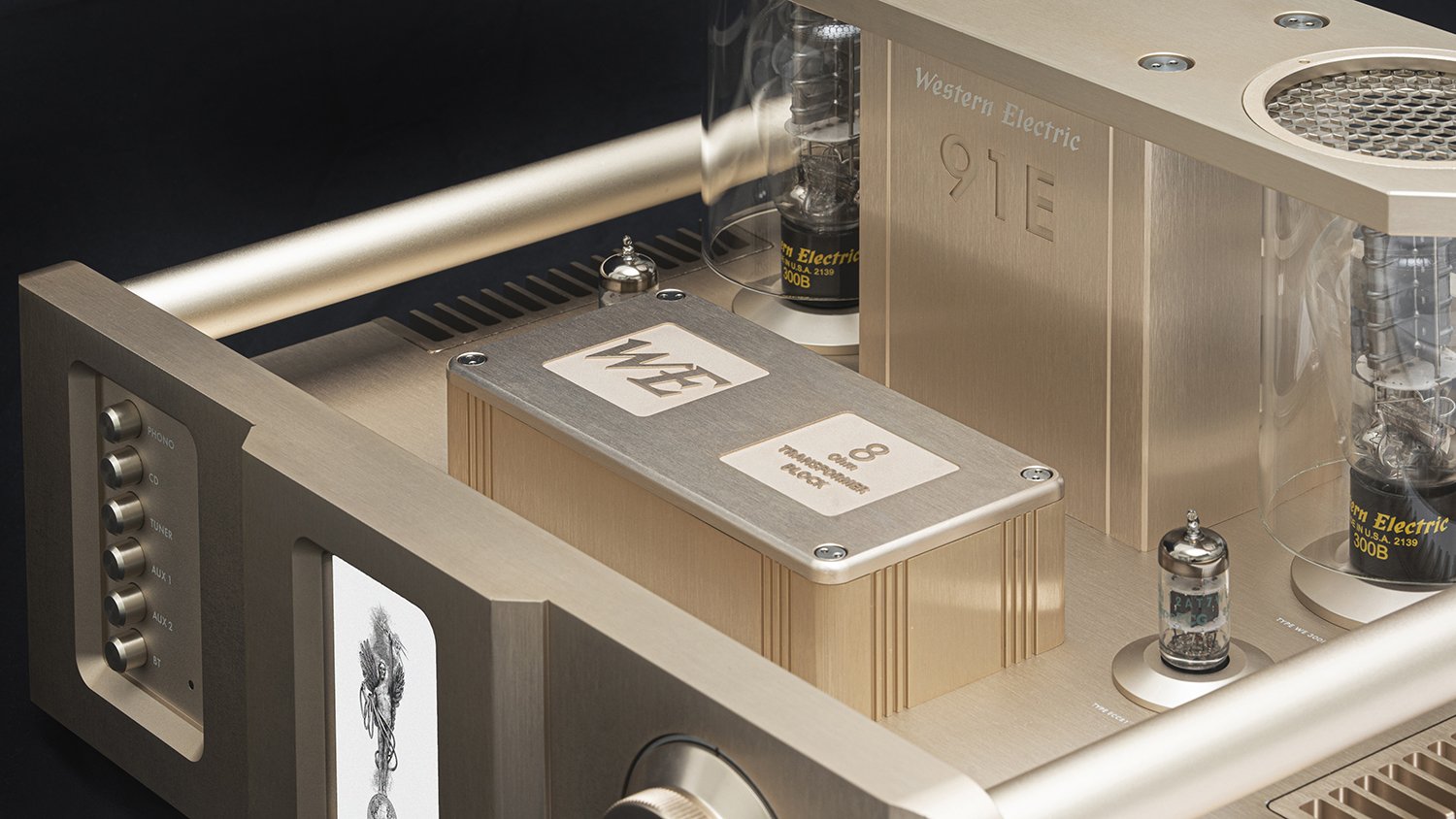

  • Interchangeable Transformer Block
    The standard 8-ohm transformer block can be interchanged with the optional 4-ohm or 16-ohm version. This feature is unique to the 91E Integrated Amplifier and allows users to match speaker impedance for improved fidelity. Single impedance transformers maintain lower winding capacitance normally vitiated with multiple tap transformers.

  • LCD Display
    A bright and easy to read color display shows the selected input, attenuator level, and VU meter. The display also shows settings which can be adjusted by the included remote control. The display is dimmable.

  • Remote Control
    The included infrared remote control allows for quick adjustment of amplifier settings such as input levels, balance, and display dimming.

  • Six Audio Inputs
    Up to six (6) source devices can be connected during amplifier operation.

  • Auto-Bias
    Microprocessors automatically bias the 300B tube pair each time the amplifier is powered on. No manual adjustment is necessary.

  • Optional 1202A Phono Termination Plugs
    Turntables often require an additional capacitive or resistive load in order to achieve correct frequency response. Typically, MM turntables require a more capacitive load and MC turntables require a more resistive load. Western Electric has a variety of values available to match your setup. A basic knowledge of your amplifier, turntable, and any other component affecting the audio signal chain is essential when selecting the correct plug pair. Sold in pairs, this original Western Electric component is for turntable users who wish to optimize playback performance where Moving Coil (MC) or Moving Magnet (MM) phono cartridge pickups are used.

  • BT Compatibility
    BT compatible audio input is available for wireless convenience.

  • Software & Firmware Updates via Ethernet Connection and USB

Weight 49lbs / 22.2 kg
Dimensions 18.9 x 15 x 11.1” / 48 x 38 x 28cm
Chassis Machined Aluminum
Colors Nickel, Champagne, Black
Operating Voltage 100V / 115V / 230V / 50-60Hz
Power Consumption (Operation / Standby) 160W / 0.3W
Mains Fuse 2A slow-blow
Electron Tube Complement One Matched Pair Western Electric 300B, 2x ECC81
Phono MM Sensitivity (10W / 4Ω) 0.75mV
Phono MC Sensitivity (10W / 4Ω) 70μV
CD Sensitivity (10W / 4Ω) 0.27V
CD Input Impedance 20 kOhms
Phono MM Input Impedance 47 kOhms | | 100 pF
Phono MC Input Impedance 1000 kOhms (adjust via Phono Load plugs)
SNR MM (10W / 4Ω, input 5mV) 83 dB(A)
SNR MC (10W / 4Ω, input 0.5mV) 73 dB(A)
SNR CD (10W / 4Ω, input 0.5V) 101 dB(A)
CD Frequency Response 15 Hz – 32 kHz (-3 dB)
Phono Frequency Response 30 Hz – 20 kHz (RIAA within +/- 0.5 dB)
Output Power / 4 Ω / THD 10% 2 x 20 watts
Output Power / 4 Ω / THD 5% 2 x 16 watts
Output Power / 4 Ω / THD 3% 2 x 14 watts
Output Power / 8 Ω / THD 10% 2 x 20 watts
Output Power / 8 Ω / THD 5% 2 x 16 watts
Output Power / 8 Ω / THD 3% 2 x 14 watts
BT Standard v4.2
BT Codecs BC, MP3, AAC, Fastream, APTX
BT Sample Rate (adaptive) Up to 96kHz / 16-bit
BT frequency response 20 Hz – 20 kHz
BT SNR 96dB

Brand

Western Electric

Western Electric was established in 1869. It was re-established in 1996 for the exclusive manufacture of electron tubes and high fidelity. Woven into our story of American manufacturing is the story of sound itself. From the earliest glow of the vacuum tube to the advent of hi-fi, we make stunning experiences for listeners worldwide. This connection to the past powers our mission to continue Western Electric sound for new listeners.

At Western Electric many hands work together to make a product that transcends time—the electron tube. One tube in particular, the type 300B triode, has captivated music lovers for decades in their search for sonic purity and analog perfection. In 2018, eighty years after the 300B was originally commissioned, we established this works facility, dedicating an entire wing to its assembly. The Rossville Works is a preservation effort, the home of tube sound in the 21st century.

We are more than just an American manufacturer with an affection for the past. We’re a team in the laboratory pursuing audio innovation. The way forward is engineering stunning listening experiences with new or reimagined products worthy of our mark.

When you're through compromising, experience it for yourself.
