From $2,495.00

Headphone Amplifier

If you have a trade-in, request Trade-in Price.
Category: Tags: ,

Product Description

The Rogue Audio RH-5 headphone amplifier brings our groundbreaking RP-X technology platform to the personal audio world. The new RH-5 will deftly drive the most demanding headphones with a clarity, richness and tube smoothness that must be heard to be believed. Beyond its remarkable performance and design, the feature rich RH-5 provides a wide variety of connectivity and user selectable listening options. Ultra quiet, powerful and sublimely musical, the Rogue Audio RH-5 offers a superb new option for high end headphone users.

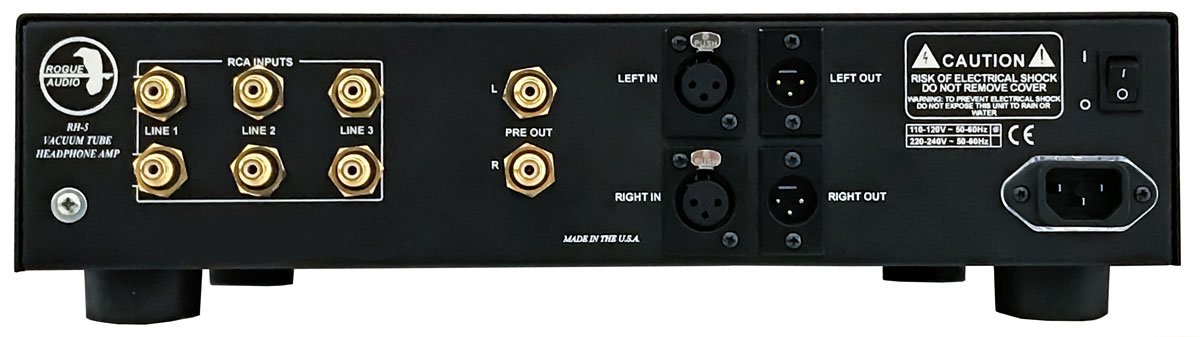

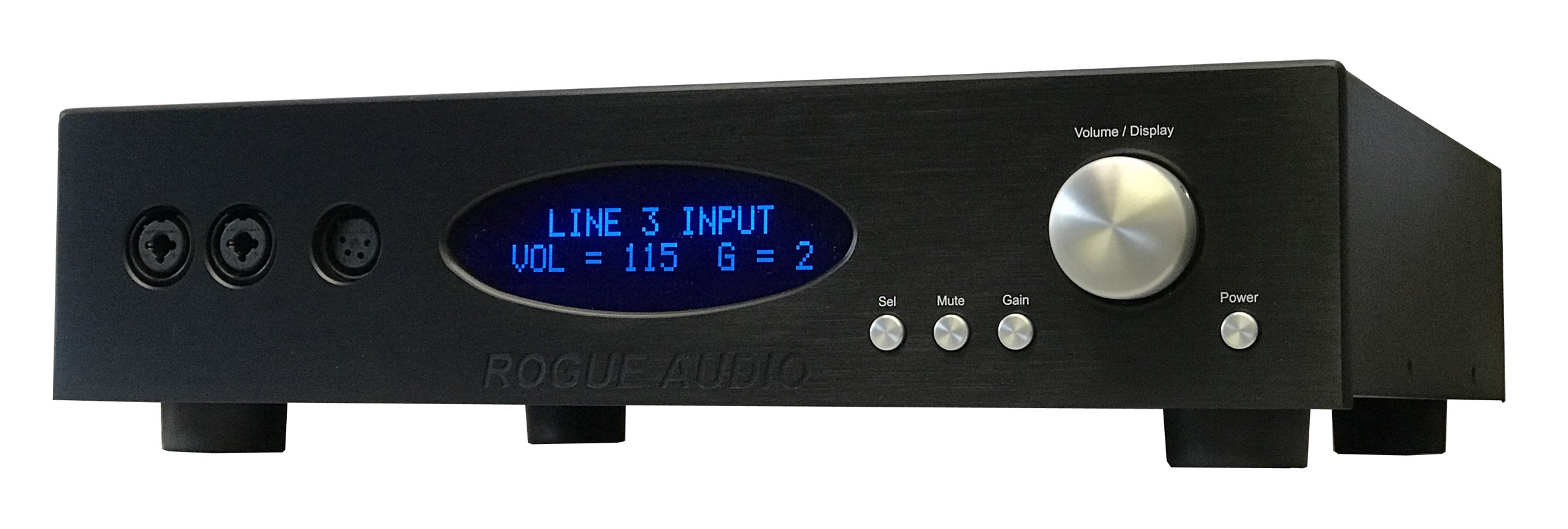

The Rogue Audio RH-5 features include three pairs of RCA inputs and one pair of balanced XLR inputs. Headphone outputs are provided via 3 pin and 4 pin fully balanced outputs as well as two 1/4″ TSR headphone jacks enabling a shared listening experience. Three gain settings allow the output to be matched for either high, medium or low sensitivity headphones. An easy to read OLED display elegantly communicates component settings and volume. The display can also be turned off if desired. The seven button remote allows you to turn on the Rogue Audio RH-5, change volume, select source and mute output as well as dim the display.

The Rogue Audio RH-5 is not just a superb headphone amplifier, it can also be used as the cornerstone of your two channel audio system. Offering both balanced and single ended preamplifier outputs, the RH-5 will also do a wonderful job of driving your preferred amplifier and speakers. An optional phono board also allows you to play your favorite records through either the headphones or loudspeakers. The onboard MM/MC phono has user adjustable gain settings of 43 and 58 dB to accommodate most popular cartridges. A wide variety of loading options also means your favorite cartridge can be configured to sound its very best.

– Two tube mu-follower design
– High current MOSFET buffered outputs
– L/R 3 pin XLR headphone outputs
– 4 pin XLR headphone outputs
– Two 1/4″ TSR headphone jacks
– Multi function remote control
– Three faceplate accessible gain settings
– Three pairs of RCA inputs
– Slow start turn on sequencing
– One pair of balanced XLR inputs
– One pair of balanced XLR preamp outputs
– One pair of RCA preamp outputs
– Gold plated RCA jacks
– Machined aluminum faceplate and knobs
– OLED display with on/off
– 43/58 dB MM/MC phono stage (optional)
– RIAA equalization within 0.1 DB
– User adjustable cartridge loading
– Detachable IEC power cord
– Fully tested, burned in and auditioned
– 3 year limited warranty (6 months on tubes)
– Proudly designed and hand crafted in the USA!
– Tube complement: 2 x 12AU7/ECC82 tubes
– Frequency response: 5Hz – 50KHz +/- 1 dB
– THD: <0.05% - Gain line stage: 3dB/12dB/16dB (selectable) - Rated output: 3.5W (32Ω) - Output impedance: <0.1Ω (1KHz) - Gain phono stage: 43dB, 58dB - RIAA accuracy: +/- 0.1 dB - Phono overload: 40mV - Power consumption on: 31W - Dimensions: 15”W X 13.5 ”D X 4” H - Weight 19 pounds - Shipping weight 25 pounds - Power requirements 115V – 50/60Hz - Power requirements 220/230/240V – 50/60Hz

Brand

Rogue Audio

Experience next-level performance with Rogue Audio electronics. A clear signal path and clean power supply make up the foundation of their high-end designs. All their products are crafted using tube circuit topology and expert circuit layouts to deliver the ultimate sound fidelity. Despite their affordability, these aren't mass-produced products. Instead, each is hand-assembled and tested by trained technicians and engineers. Though a great value purchase, their sophisticated finishes make them the perfect fit for high-end applications.

Vacuum tube amplifiers are the company's specialty. Each Rogue amplifier employs a corrosion and scratch-resistant chassis and aluminum faceplates for stellar quality and appearance. Not only does the company use ultra-high tolerance components, but two–ounce copper circuit boards and silver-plated switches differentiate them from the rest.

These amplifiers are built to last no matter how hard you push–all while remaining affordable and boasting terrific warranties. The goal at Rogue Audio is to be the go-to for established audiophiles and those just getting into the hi-fi lifestyle. A great example is the new Stereo 100 Dark amplifier. It builds on the award-winning Stereo 100 with upgraded coupling capacitors, binding posts and RCA jacks for 100 watts of pure power that never sacrifices precision.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Rogue Audio components, selling customers the best components from Rogue Audio in Sales Tax Free Delaware. Interested in purchasing a new Rogue Audio amplifier or preamplifier? You can trade-in any component towards a Rogue Audio component by filling Overture's Trade-In Form.
