$3,999.95

If you have a trade-in, request Trade-in Price.



Product Description

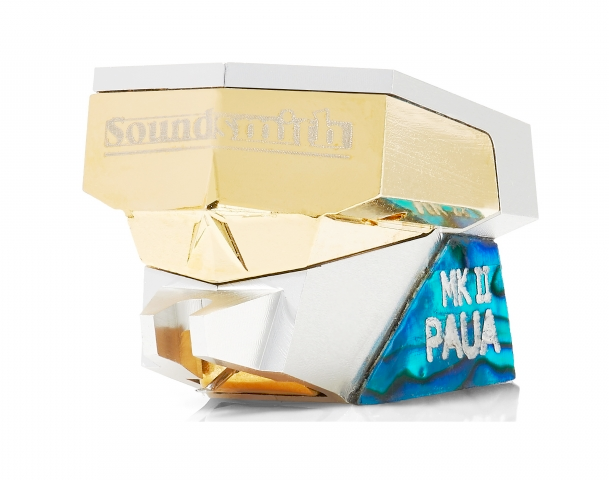

The NEW Paua MK II ES: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua Mk II ES is one of Soundsmith’s most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Now we introduce the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII’s cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550  – a fraction of its original cost – as with all Soundsmith cartridges – 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

We have accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.


Soundsmith Paua Mk II ES Specifications

Cartridge Type: Fixed Coil

Stylus Type: Contact Line

Output: Low

Output Voltage: .4 mV

Available As Dual Coil Mono: Yes

Additional Specifications

Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Stylus to Mounting Hole Offset: ≈ 10mm (0.4″)
Loading: ≥ 470 Ω

Brand

Soundsmith

Dedicated to establishing the most accurate vinyl sound reproduction in the world, Soundsmith has been designing, manufacturing and repairing audio equipment for over 40 years. Headquartered in Peekskill, NY, the company is known for its exquisite sound quality and high-value products. Each product is proudly handcrafted in the US by a select group of artisans and engineers.

Enjoy the ultimate sound quality through their Strain Gauge and Fixed Coil cartridges or upgrade your hi-fi system through their renowned cartridge restoration services for companies like Audio Research, Bang & Olufsen and McIntosh. Although best known for cartridges, the company also offers adapters, phono preamps, amplifiers and speakers.

Their new moving Iron cartridge, the Voice, is just one example of the company’s constant innovation. It addresses common vibrational issues with a new ES shape. The new body, featured in all new cartridge releases, reduces moving mass through the use of cutting-edge materials and design. Have the perfect match no matter your hi-fi set up with their extensive line of cartridges available for low-output, medium-output and high-out cartridges.

All Soundsmith cartridges must be purchased and installed through a dealer to ensure the ultimate performance from their products. Have one of the nation’s leaders in high-end audio and home theaters help you find the right Soundsmith product for you.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Soundsmith phono cartridges, selling customers the best Soundsmith cartridges in Sales Tax Free Delaware. Interested in purchasing a Soundsmith phono cartridge, you can trade-in any component towards a Soundsmith phono cartridge by filling Overture's Trade-In Form.
