Product Description

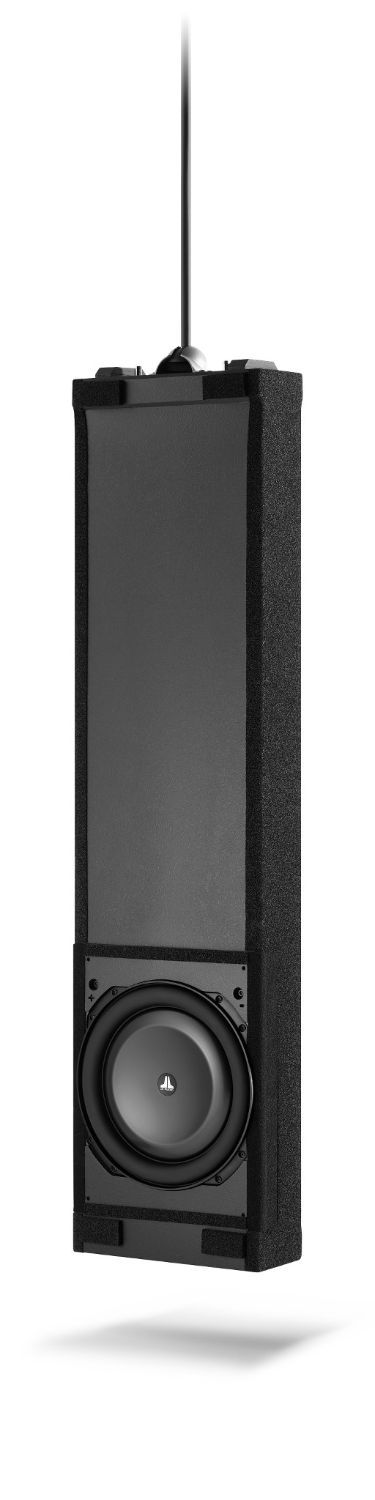

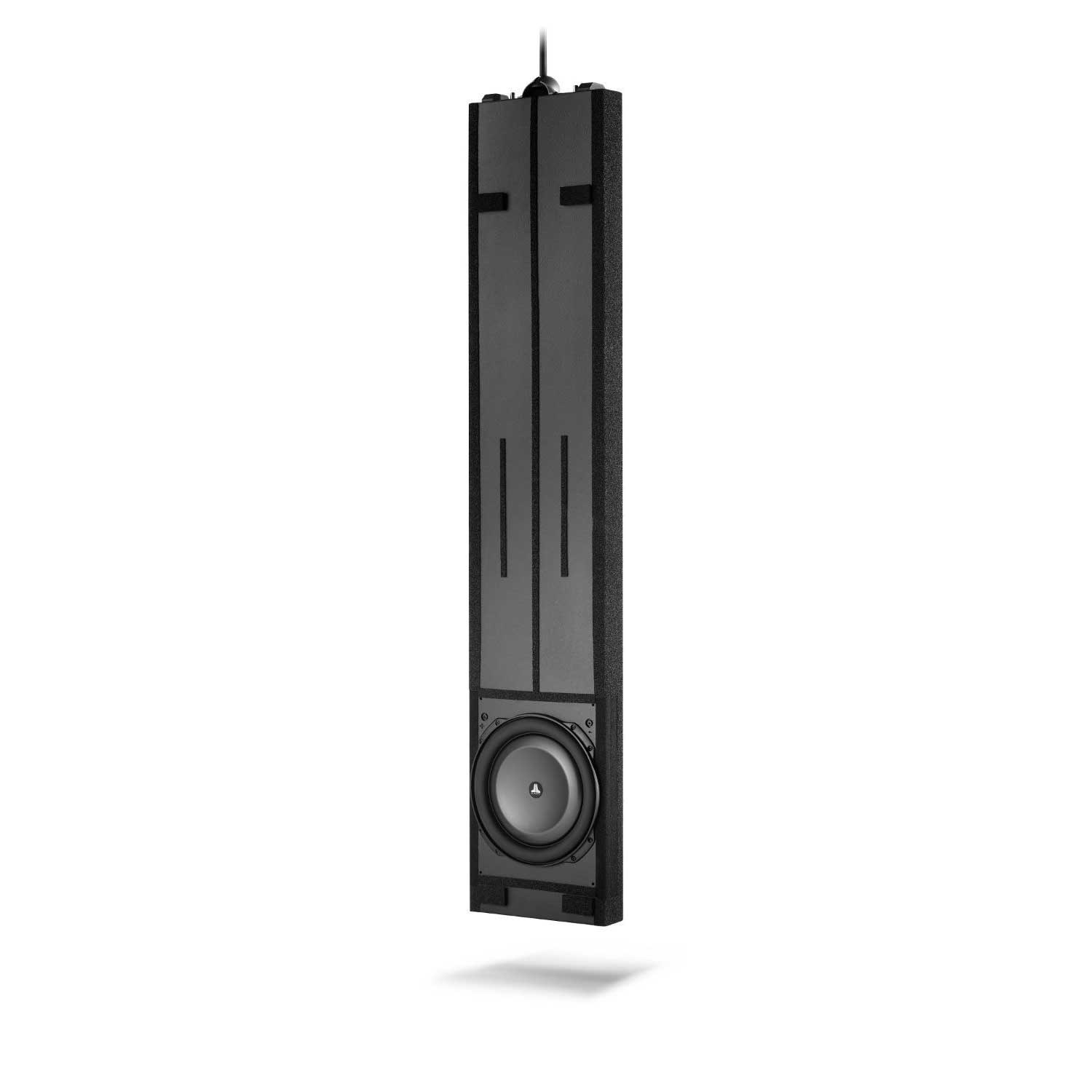

The same minds that engineered JL Audio’s reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, the JL Audio Fathom IWSv2-SYS-113 subwoofer, centered on an innovative, thin-line driver with groundbreaking technologies.

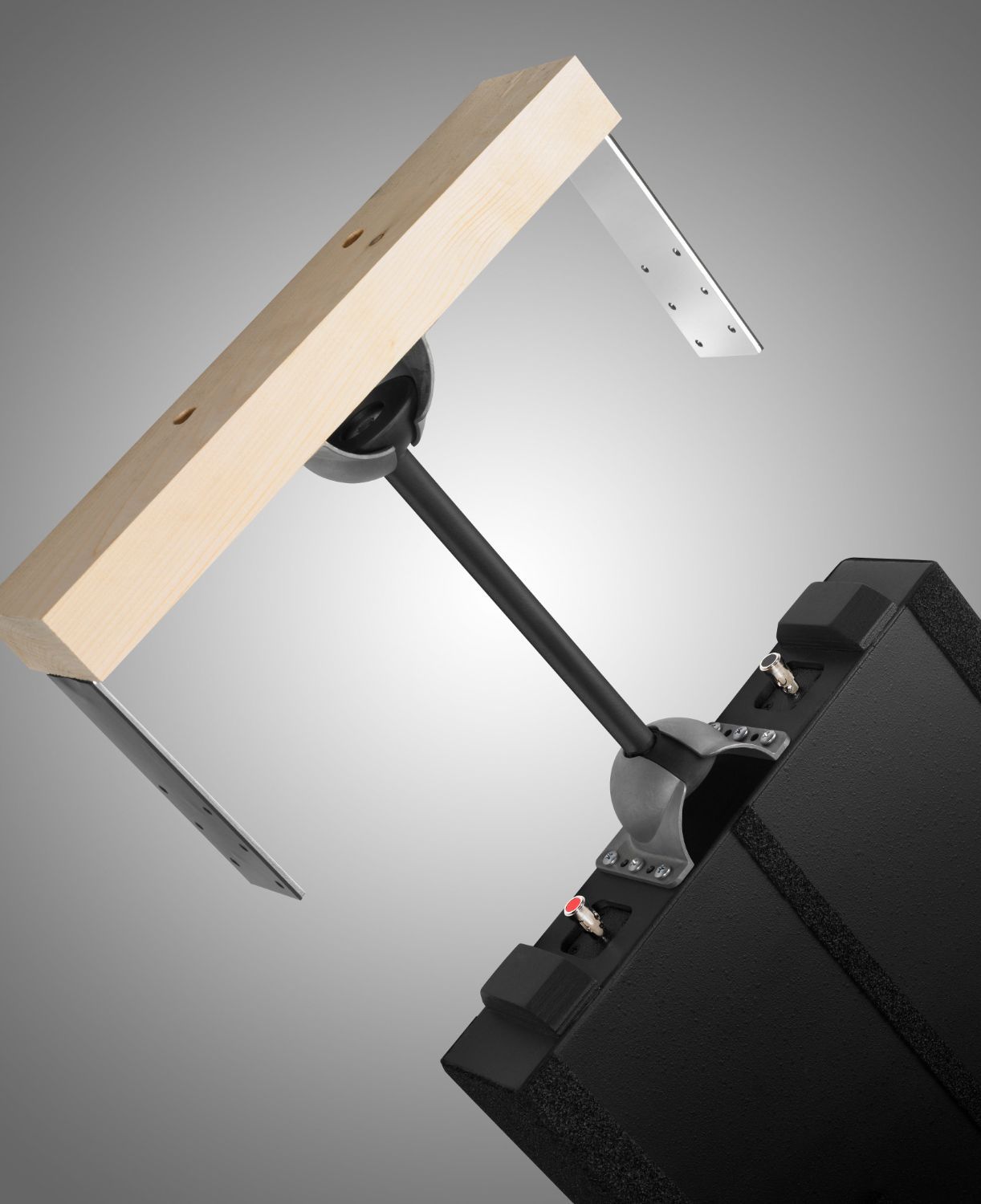

Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.
A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.

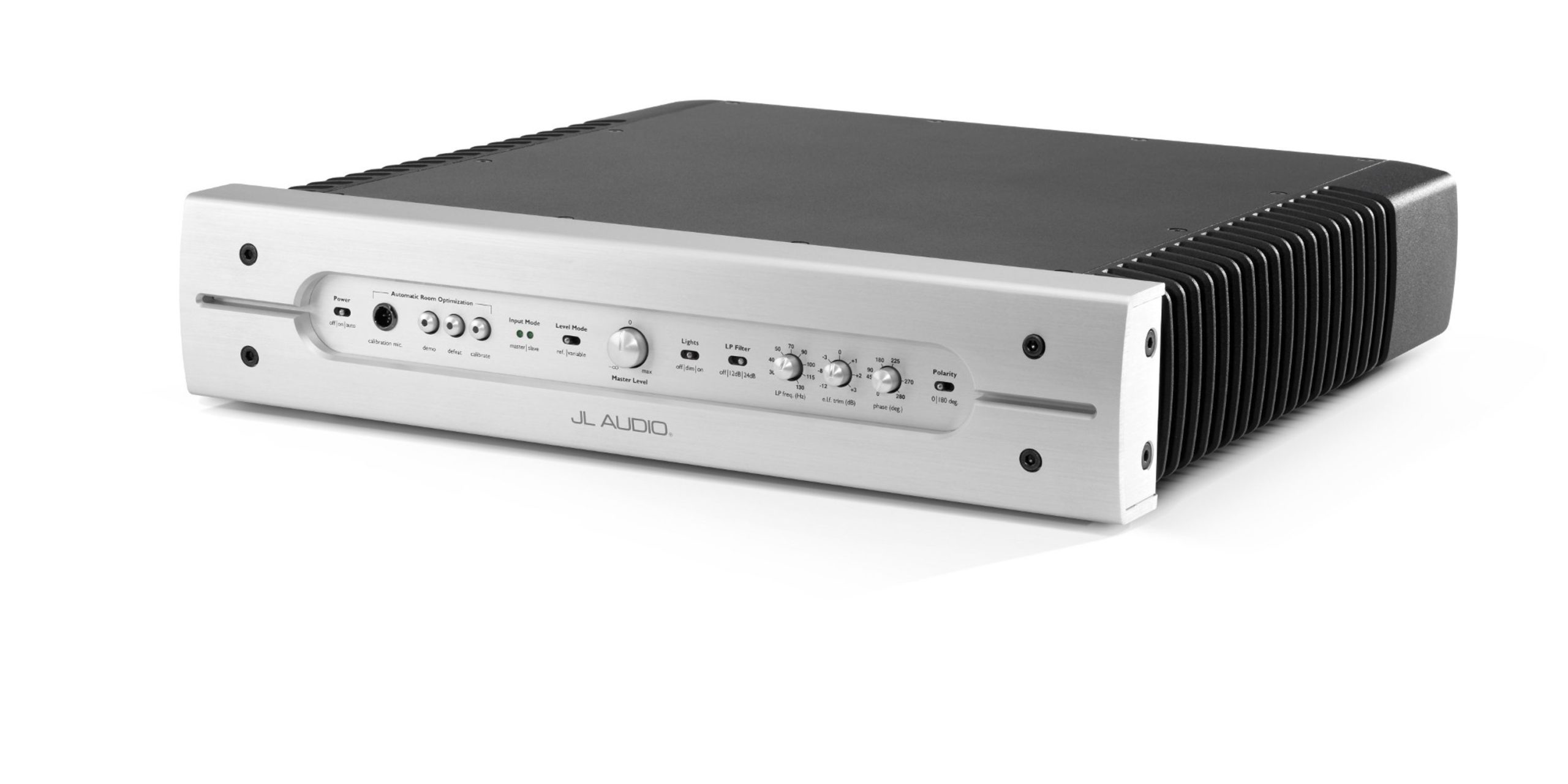

The IWSv2-SYS-113 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Digital Automatic Room Optimization system.
There is no need to lower your expectations when selecting this remarkable in-wall solution… it’s a real Fathom®.
The IWSv2-SYS-113 is available to fit a variety of 2″ x 4″ and 2″ x 6″ wall studs. Consult your Authorized JL Audio Dealer for specific application information.
| Enclosure Type | Sealed |
| Enclosure Finish | Black Texture-Coated |
| Frequency Response (Anechoic) | 26 Hz – 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz |
| Effective Piston Area (Sd) | 98.26 sq in / 0.0634 sq m |
| Effective Displacement | 147.3 cu in / 2.41 L |
| Amplifier Power | 1000 W RMS short-term |
| Power Mode(s) | Off, On or Automatic (Signal-Sensing) |
| Light Modes | Off, On or Dim |
