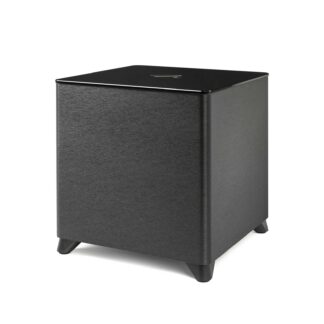

Product Description
The Martin Logan BalancedForce 210 subwoofer delivers powerful bass with electrostatic-like detail to any audio system, whether for high-end stereo music listening or multi-channel home theater. Its two-driver, force-canceling configuration virtually eliminates cabinet resonance and the resulting bass blur that plagues conventional subwoofers, while a sophisticated DSP-based amplifier ensure the purity and accuracy of the sound from the drivers.
Ultimate Performance Subwoofers
Chances are you’ve read or heard at some time that adding a subwoofer to a system built around electrostatic speakers is nearly impossible. Although that’s not necessarily true (and we have the subwoofers to prove it), the idea is grounded in experience. For many years subwoofers and electrostats did not blend very well. Turn on the sub and maybe you got the deeper, stronger bass you were looking for but that wonderful electrostatic snap and midrange clarity were, if not gone, now smeared and disconnected.
Our goal, when we began our first subwoofer project, was to deliver the good stuff — deep, tight, powerful bass — and none of the bad. We wanted to build subwoofers that, when combined with ultra-fast electrostatics or conventional cone speakers, would blend seamlessly to the very bottom of the frequency extreme. Martin Logan BalancedForce 210 subwoofers are the full realization of years of engineering by the MartinLogan team combined with the latest innovations in advanced digital signal processing, amplification, electrical system designs, and room correction.
These woofers, spaced 180 degrees apart in a ‘BalancedForce’ configuration, operate in exact opposition, to nullify distortion causing cabinet vibrations and deliver pure bass energy. Traditional subwoofer enclosures suffer from an equal and opposite reaction to the cone’s movement, generating acoustic vibrations within the cabinet. You feel this by touching the cabinet. Although the “physics” of this phenomenon actually cause a subwoofer cabinet to resonate or even dance, most subwoofer designers apply weight or mass to the cabinet to minimize such disturbances, but still leave one byproduct—”smeared bass”. BalancedForce is an elegantly simple solution that removes the variable of cabinet vibration contributions from the acoustic equation.
Amplifier Design
Advanced Ultra-Efficient D-Class Amplifier
BalancedForce subs match powerful proprietary switching amps with incredible woofer drivers resulting in tightly defined bass while keeping distortion at the lowest possible levels. The BalancedForce 210 features an 850-watt class-D switching amplifier capable of a 1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a total system power of 1700-watts (3400-watts system peak).
Low-noise, high-power transformers and switching power supplies feature high-quality MOSFET transistors, noise-suppression networks, and control circuitry to provide tremendous levels of current with extremely low levels of distortion. Split power supply rails minimize distortion while maximizing switching efficiency. Military grade glass epoxy circuit boards, temperature sensors, and protection circuitry guarantee quality sound and reliable trouble-free operation.
Custom Low-Pass Filters for
Individual Loudspeaker Models
Custom tailored low pass filters are available for nearly every floor standing MartinLogan loudspeaker released in the last 30 years. These optional custom filters adjust the subwoofer’s low pass settings to seamlessly blend with the roll-off characteristics of individual loudspeaker models. Filters are easily installed via a user-friendly process involving a USB thumb drive and are available for free download. Many unique filters are currently available and additional filters will be added as new speakers are released.
