$2,195.00

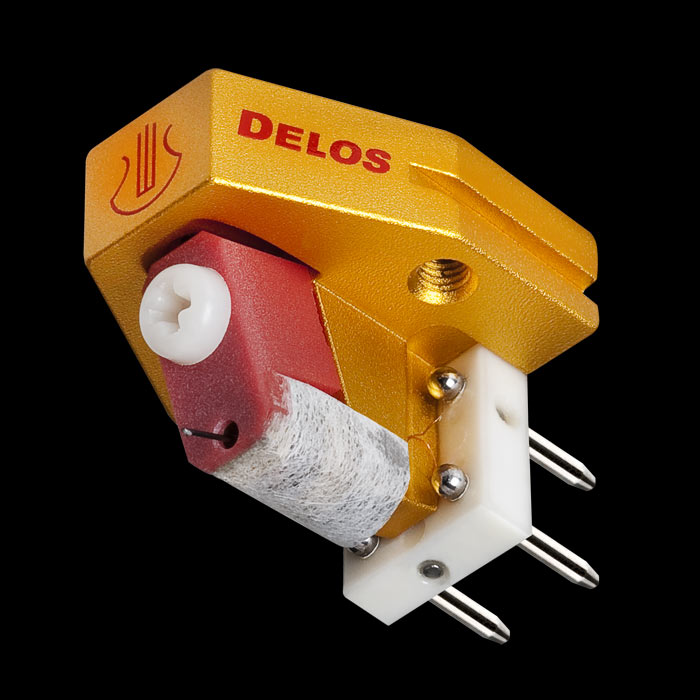

Moving Coil Phono Cartridge

If you have a trade-in, request Trade-in Price.



NOW IN STOCK
CALL US @ (302) 478-6050

Category: Tags: , ,

Product Description

An essential factor for proper operation of the Lyra Delos phono cartridge is the angle between the magnetic circuit, signal coils and core. Performance is optimal when the angles are all aligned, but any significant difference in the angles will cause the formation of a strong and directional flux that will flow constantly from the magnetic circuit into the signal core. This directional magnetic flux will orient the core toward a specific direction and make it impossible for the core to move with equal ease in all directions, which is necessary for proper cartridge performance.

Unfortunately, conventional MC cartridges have been designed so that the angles between magnetic circuit, signal coils and core become aligned only when tracking force is not applied. The result is that during playback, the required tracking force causes the angle between magnetic circuit, signal coils and core to become misaligned. This limits the cartridge’s resolution, tracking ability and dynamic range.

The new Lyra Delos is designed to conquer this problem. Compared to conventional cartridges, the Delos has a new body structure with an unusually shallow angle, and this has been paired with a unique asymmetrical damping system. When no tracking force is applied, the shape of the asymmetrical dampers forces the signal coils and core into a more upright angle than the magnetic circuit.

However, no tracking force applied means that the cartridge is not operating, and therefore any angular discrepancies between magnetic circuit, signal coils and core will have no effect on performance. When tracking force is applied, however, the force of the stylus pushing on the LP causes the asymmetrical dampers to be deformed into a symmetrical shape, and when this happens the angular discrepancies between magnetic circuit, signal coils and core all disappear. Since tracking force applied means that the cartridge is now operating, it should be clear that the design of the Delos is able to keep the angles between the magnetic circuit, signal coils and core aligned during playback.

Keeping the proper angular alignment prevents the formation of any strong and directional flux that could otherwise flow constantly from the magnetic circuit into the signal core, and enables the Delos’ core to move with equal ease in all directions, for optimal performance.

The Delos also has a microridge stylus on a boron cantilever for outstanding tracking, a non-parallel solid machined metal body for low resonances, and 6-N high-purity copper coils and nude construction for greater clarity. The result is clearly improved sound quality, particularly resolution, tracking ability, dynamic range, transient impact and immediacy.

Feel free to audition the Lyra Delos, and hear how good a New Angle can make your LPs sound.

  • Designer: Jonathan Carr
  • Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (primary build)
  • Type: Medium weight, medium compliance, low-impedance moving coil cartridge
  • Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
  • Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
  • Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
  • Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10Hz ~ 50kHz
  • Channel separation: 30dB or better at 1kHz
  • Compliance: Approx. 12 x 10cm/dyne at 100Hz
  • Vertical tracking angle: 20 degrees
  • Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
  • Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
  • Distance from mounting holes to stylus tip: 9.5mm
  • Cartridge weight (without stylus cover): 7.3g
  • Recommended tracking force: 1.7g – 1.8g (1.75g preferred)
  • Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in instruction manual)
  • Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
  • Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment

Brand

Lyra

Hyper-focused enterprises are often a true sign of greatness and genius. While many high-end audio manufacturers focus on a wide array of products, Lyra strives to perfect just one. The Tokyo-based company creates the most technologically advanced phono cartridges on the market. American designer Jonathan Carr, Japanese craftsman Yoshinori Mishima and Norwegian businessman Stig Bjorge bring global expertise to the mission. Each phono cartridge is meticulously crafted under Mishima's careful supervision. The result is impeccable build and quality for each of their products. Since the company's foundation, its research has resulted in four unique lines: the Delos, Kleos, Etna, and Atlas. The Delos MC Phono Cartridge incorporates a pre-angled damping system, a non-paralleled solid metal body, and a microridge stylus for improved resolution, range, and crips transients. The Kleos includes New Angle technology and a stronger chassis for superior tracking and tonal balance. Replacing the company's original Titan cartridge, the Etna provides high quality at a low value through a solid titanium core structure and asymmetric outer body. Atlas is their flagship model and the world's first asymmetrical MC phono cartridge. The asymmetrical shape counters the inefficiency of traditional cartridges that result in echoes and diminished quality. It creates a direct path between the cantilever and the headshell and reduces resonance by eliminating standing signal waves. As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Lyra phono cartridges, selling customers the best phono cartridges from Lyra in Sales Tax Free Delaware. Interested in purchasing a new Lyra phono cartridge? You can trade-in any component towards a Lyra Phono Cartridge by filling out Overture’s Trade-In Form.
