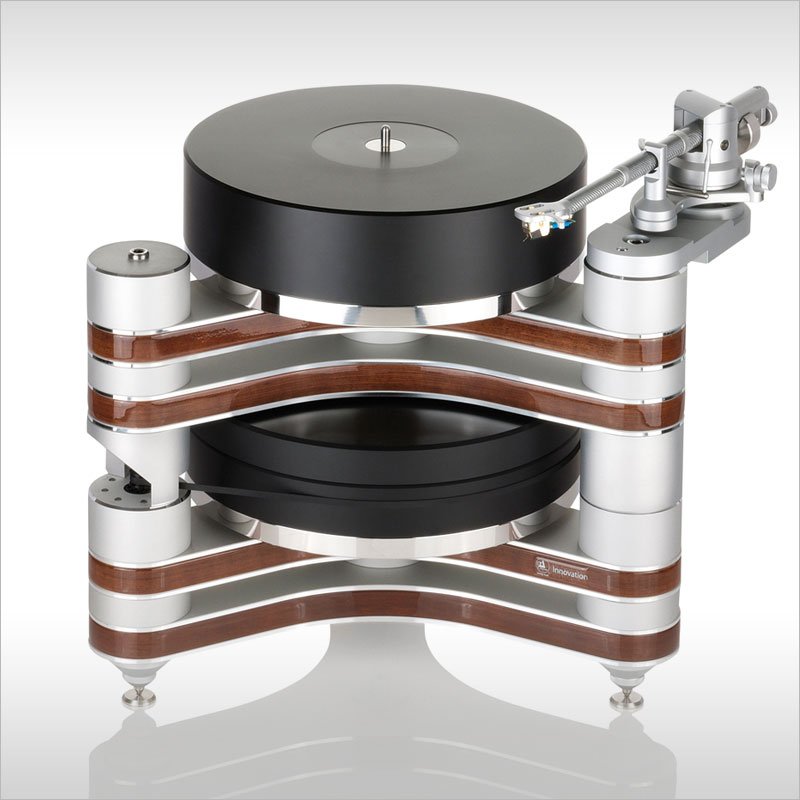

Clearaudio Master Innovation Wood turntable
Clearaudio Master Innovation Wood turntable

From $32,000.00

Turntable Only

If you have a trade-in, request Trade-in Price.



Category: Tags: ,

Product Description

The 70mm-thick, dynamically balanced platter made of resonance damping plastic with a 15mm-thick precision-machined stainless steel sub platter delivers the highest mechanical standards. The Clearaudio Master Innovation Wood turntable doubles the inertia of the Innovation.

Incredible rotational speed stability is achieved thanks to the combination of the patented Clearaudio ceramic magnetic bearing (CMB) supplemented by an additional flywheel and a high torque DC motor. An infrared sensor sends signals to an optical speed control mechanism to consistently maintain the perfect speed, while non-contact magnetic decoupling of the drive prevents any vibration or noise from the motor system from reaching the main turntable. Consequently, speed variations are eradicated and perfect pitch is obtained. The Master Innovation provides the ability to mount up to three tonearms. Existing Innovation owners have the option to upgrade to Master Innovation level.



Construction Details Resonance–optimised chassis shape, made of laminated wood and aluminium with precision CNC machined surface.

  • All turntable feet are fine adjustable
  • Optical Speed Control (OSC)
  • Playback with three tonearms possible
Speed ranges Comfortable speed change
33 ⅓, 45 and 78 rpm
Drive unit
  • High torque DC motor with belt drive
  • Electronic Optical Speed Control (OSC)
Bearing Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly
Platter Double platter system each comprising:
15 mm (4/5 inch) precision CNC machined dynamically balanced stainless steel sub–platter
70 mm (2.75 inch) dynamically balanced main platter, made of synthetic material with excellent dimensional stability
Speed variation < ± 0.05 %
Power consumption Max. consumption: 9.5 Watt
Consumption in operation: 4.1 Watt
Standby mode: 2.4 Watt
Off mode: 0.0 Watt
Total weight Approx. 60 kg (without tonearm and power supply)
Dimensions (W/D/H in inches) Approx. 18.11 x 19.09 x 15.59 (with tonearmbase, without tonearm)
Dimensions (W/D/H in mm) Approx. 460 x 485 x 396 (with tonearmbase, without tonearm)
Warranty 5 years*
* Only if the Manufacturer’s guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.

Brand

Clearaudio

Clearaudio’s mission since it was founded in 1978 is to create the most precise audio components in the industry. All production remains in-house at their Meilwald, Germany headquarters to ensure the ultimate quality assurance. In the past four decades, Clearaudio has designed and patented some of the most innovative solutions in the high-end market. Not only does the company offer their legendary turntables, but all necessary accessories as well. These include all manner of components, including gauges, tonearms, cartridges, phonostages and even record and turntable cleaning kits.

Specialists bring together cutting-edge materials, meticulous craftsmanship and innovative design to craft best-in-class products. Many of the company's accomplishments are made possible through their focus on collaboration, working with a wide range of experts from audio technicians to watchmakers to perfect their designs.

You’ll see the culmination of this work in every product big and small. It’s best showcased through their award winning turntables. Recordings sound best in high-end analogue products designed to eliminate resonance while amplifying every detail. At Clearaudio this is made possible with a mix of ingredients including multi-layered wood, titanium, aluminum and more. Nine different models make it easy to find the ideal turntable solution for your listening needs.

Overture is one of the most trusted Clearaudio component dealers in the country. Not only do we sell the company’s top turntable and turntables-based products, but we’ll advise you on the best fit for you. Interested in purchasing a new Clearaudio component? You can trade-in any component towards a Clearaudio product by filling out our Trade-In Form.
